ESPRIT ET1881 Owner's Manual

Esprit treadmill user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ET1881 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESPRIT ET1881

Summary of Contents for ESPRIT ET1881

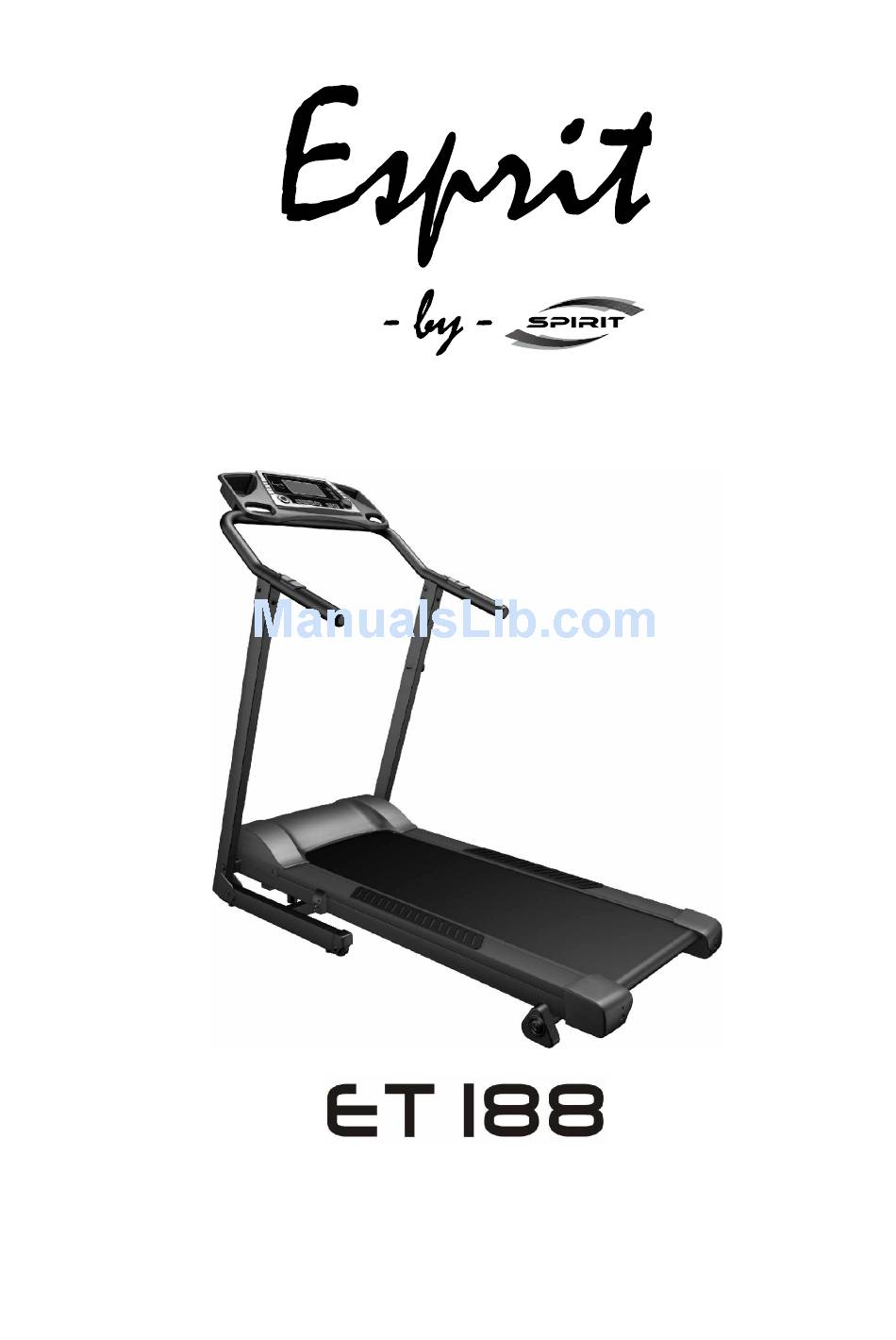

  • Page 1 OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Product Registration Important Safety Instructions .. 3 Important Electrical Information .. 4 Important Operation Instructions Assembly instructions Operation of Your New Treadmill General Maintenance. .. 12 Service Checklist - Diagnosis Guide .. 15 Manufacturer s Limited Warranty . 16 ET188...

  • Page 3: Product Registration

    NEW TREADMILL AND WELCOME Thank you for your purchase of this quality treadmill from Spirit Manufacturing, Inc. Your new treadmill was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.

  • Page 4: Important Safety Instructions

    DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE OUTLET ON THE END. The treadmill should be the only appliance in the circuit in which it is connected. DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET.

  • Page 5: Important Electrical Information

    NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.

  • Page 6: Important Operation Instructions

    The clip should be attached securely to make certain it does not come off. Be familiar with its function and limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console.
  • Page 7 ASSEMBLY PACK CHECK LIST #84 - 5/16 x 1/2 Button Head Socket Bolt (2pcs) #69 - 5/16 x 18mm Flat Washer (6pcs) #55 - 3/8 x 46mm Button Head Socket Bolt (2pcs) #37 - Safety Key (1pc) #86 - 13/14 mm Wrench (1pc) #60 - M5 x 15mm Phillips Head Screw (4pcs) (These four screws are attached...

  • Page 8: Assembly Instructions

    Assembly Instructions for ET188 STEP 1 Remove all the parts from the carton. STEP 2 Raise the upright supports into place as shown. Secure the uprights with the four 5/16 x socket head bolts (83) and 5/16 flat washers (69). ET188...
  • Page 9 STEP 3 Install, and just hand tighten for now, the two 5/16 x 1/2 socket head bolts (84) and 5/16 flat washers (69) into the front of the left and right upright tubes. Now install the 3/8 x 46mm socket head bolts (55) from the outside of the upright tubes, 3/8 flat washers (71) and 3/8 nuts from the inside of the uprights and tighten all four bolts as tight as possible.

  • Page 10: Operation Of Your New Treadmill

    After the treadmill is powered on and the safety key is in place simply press the START key. The treadmill will start at the minimum speed of 0.5 mph, the time will count up from zero and all data will begin to accrue. You can adjust the speed manually by pressing the Fast and Slow buttons or the Quick Keys labeled: Walk (3mph), Jog (5mph) and Run (7 mph).
  • Page 11 WINDOW DISPLAYS: DISTANCE: Accumulates total workout distance from 0.00 to 99.99 miles (km). TIME: Accumulates total workout time from 00:00 to 99:59. CALORIES: Accumulates the user s calorie consumption during exercise. PROGRAM: Indicates which program is currently running. LAPS: Counts the number of laps you have gone around the ¼ mile track. PULSE: Shows your heart rate in beats per minute SPEED...
  • Page 12 PRESET PROGRAMS (P1, P2, P3) Program 1 is a walking program 1 2 3 4 5 6 7 8 9 P1 Speed settings in mph for each segment of the profile: P1 0.6 0.7 0.9 1.0 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.0 0.9 0.7 0.6 Program 2 is a Jogging program 1 2 3 4 5 6 7 8 9 P2 Speed settings in mph for each segment of the profile...

  • Page 13: General Maintenance

    General Cleaning - Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. On a monthly basis: vacuum underneath your treadmill to prevent buildup. Once a year, you should remove the black motor hood and vacuum out dirt that may accumulate. UNPLUG POWER CORD BEFORE THIS TASK.
  • Page 14 The treadmill is designed to keep the tread-belt reasonably centered while in use. It is normal for some belts to drift near one side while the belt is running with no one on it. After a few minutes of use, the tread-belt should have a tendency to center itself.
  • Page 15 18 inches from the motor cover, but you may want to walk on the treadmill before loosening the belt to note where your feet land on the belt. If you mostly run on the treadmill, the spot where your feet land may be different from walking.

  • Page 16: Service Checklist - Diagnosis Guide

    Treadmill trips on board 15 amp circuit Computer shuts off when console is touched (on a cold day)while walking/running ERROR MESSAGES: LS: The treadmill hasn t received a speed signal for 8 seconds. E1: Console memory malfunction or CPU problem. E2: Incline position error SOLUTION/CAUSE Tether cord not in position.

  • Page 17: Manufacturer S Limited Warranty

    Manufacturer s Limited Warranty Spirit Fitness Inc. warrants all its home use treadmill parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or the absence of a sales receipt, eighteen (18) months from the original factory shipping date. Spirit s responsibilities include providing new or remanufactured parts, at Spirit s option, and technical support to our independent dealers and servicing organizations.

This manual is also suitable for:

Et188
