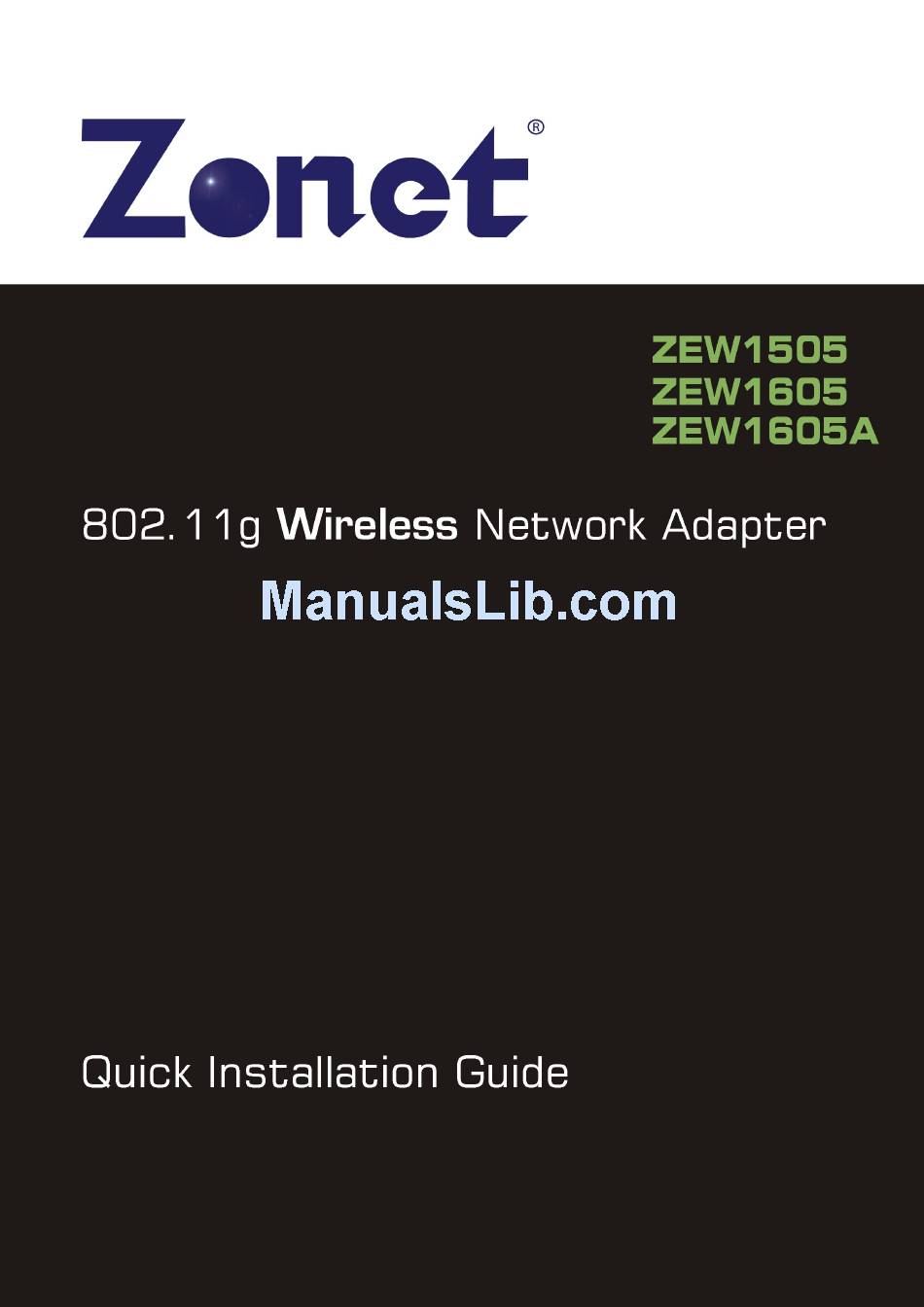

Zonet ZEW1505 Quick Installation Manual
802.11g wireless network adapter
Hide thumbs
Also See for ZEW1505:
- User manual (18 pages) ,
- User manual (23 pages) ,
- User manual (18 pages)
Related Manuals for Zonet ZEW1505
Summary of Contents for Zonet ZEW1505
-
Page 2: About This Guide
1 About This Guide This Quick Installation Guide only provides you some basic instructions. For more detailed information, please refer to the User Manual. Before you begin, you must have following at least: A notebook /desktop pc with an available 32-bit Cardbus/PCI slot At least a 300MHz processor and 32MB of memory Cardbus/PCI controller properly installed and working in the computer An 802.11g or 802.11b Access Point (for infrastructure Mode) or another 802.11g or... - Page 3 Figure 2-2 Figure 2-3 Page 2 of 9...
- Page 4 Figure 2-4 Follow the Install Shield Wizard steps, and click Finish when done. Figure 2-5 Now turn off your PC or notebook Page 3 of 9...
-
Page 5: Install Wireless Adapter
3 Install Wireless adapter 3.1 ZEW 1505 Power on your notebook, let the operating system boot up completely, and log in as needed. Hold the adapter with the LOGO facing up and insert it into a Cardbus slot. Figure 3-1 If the Found New Hardware Wizard displays, choose install the software automatically (Recommended), and click Next button. - Page 6 3.2 ZEW1605 Open your PC case and locate an available PCI on the motherboard. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot’s contacts. You may have to apply a bit of pressure to slide the adapter all the way in. after the adapter is firmly in place, secure its fastening tab to your PC’s chassis with a mounting screw.
- Page 7 3.3 ZEW1605A Open your PC case and locate an available PCI on the motherboard. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot’s contacts. You may have to apply a bit of pressure to slide the adapter all the way in. after the adapter is firmly in place, secure its fastening tab to your PC’s chassis with a mounting screw.
-
Page 8: Configuration Your Wireless Adapter
4 Configuration your wireless adapter The Wireless Client Configuration Utility screen will appear automatically. Figure 4-1 Click the Set Wizard(S) tab to start connecting to Wireless-AP. Figure 4-2 Page 7 of 9... - Page 9 Select Station(infrastructure), click Next Figure 4-3 To connect to one of the networks on the list, select the wireless network and click Next Figure 4-4 Page 8 of 9...
- Page 10 Click OK (if the wireless network have network key, you should import the network key, please refer to Wireless network adapter –user manual) Figure 4-5 Select Obtain an IP address automatically, Obtain DNS server address automatically, and then Click Finish to complete configuration. Figure 4-6 Congratulations! You’ve successfully configured your wireless adapter! Page 9 of 9...
