Summary of Contents for Zonet ZEW1505

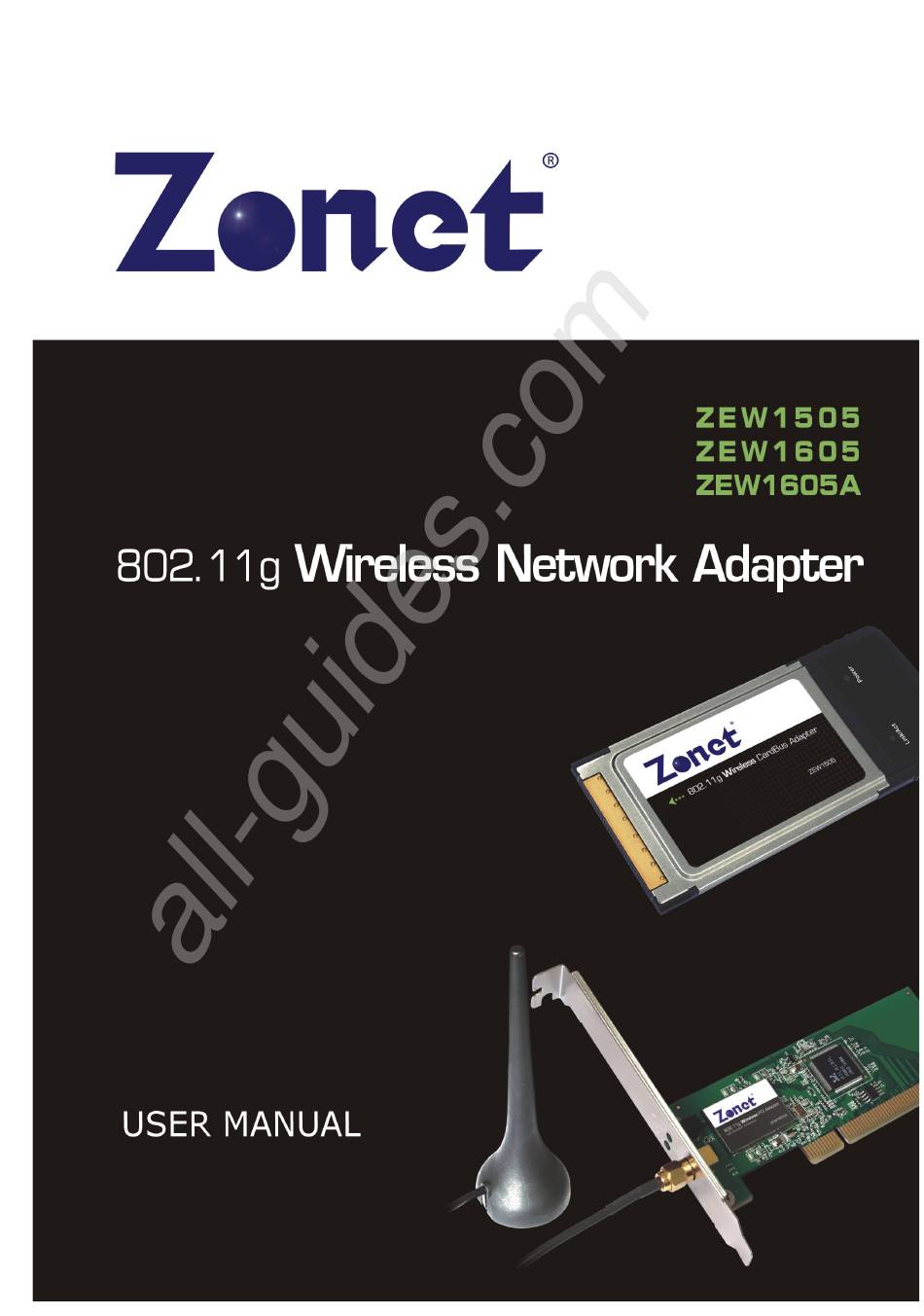

- Page 1 All manuals and user guides at all-guides.com...
- Page 2 Copyright of the whole product as integration, including its accessories and software, belongs to Zonet Technology Inc. Without the permission of Zonet Technology Inc., any individual or party is not allowed to copy, plagiarize, imitate or translate it into...
-
Page 3: Table Of Contents
1.3 Contents of Package ..............2 1.4 Before you begin ..............2 Chapter 2 Install Driver and Utility ..........4 Chapter 3 Install Wireless Adapter ..........7 3.1 ZEW1505 ................7 3.2 ZEW1605 ................8 Chapter 4 Using the Wireless LAN Utility........10 4.1 General.................10 4.2 Profile...................11... -
Page 4: Chapter 1 Introduction
Internet in your office or home network. ZEW1505/ZEW1605/ZEW1605A connects you with 802.11g networks at up to an incredible 54Mbps! And for added versatility, it can also interoperate with all the up to 11Mbps 802.11b products found in homes, businesses, and public wireless hotspots around the... -
Page 5: Before You Begin
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter 1.4 Before you begin You must have at least the following: A laptop computer/desktop PC with an available 32-bit Cardbus/PCI slot At least a 300MHz processor and 32MB of memory Windows 2000, XP, Vista, 7 A CD-ROM Drive Cardbus/PCI controller properly installed and working in the computer... -
Page 6: Chapter 2 Install Driver And Utility
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter Chapter 2 Install Driver and Utility NOTE: Snap-shot screens of the following installation procedure are based on Windows XP. Installation procedures will be similar for other windows operating systems. Insert Installation CD to your CD-ROM drive. - Page 7 All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter Click Install to begin the installation. During the installation, the following dialogue may appear. Click Continue Anyway to continue.
- Page 8 All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter Click Finish to complete the software installation.
-
Page 9: Chapter 3 Install Wireless Adapter
Power on your notebook, let the operating system boot up completely, and log in as needed. Hold ZEW1505 with the LOGO facing up and insert it into a Cardbus slot. If the Found New Hardware Wizard displays, choose install the software automatically (Recommended), and click Next button. -
Page 10: Zew1605
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter 3.2 ZEW1605 The status LED indicators of ZEW1605 are described in the following. PWR ON (Green): Indicates power on Lnk/Act ON (Green): Indicates a valid connection Lnk/Act Flashing: Indicates ZEW1605 is transmitting or receiving data. - Page 11 All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter Install ZEW1605 Open your PC case and locate an available PCI on the motherboard. Slide ZEW1605 into the PCI slot. Make sure that all of its pins are touching the slot’s contacts.
-
Page 12: Chapter 4 Using The Wireless Lan Utility
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter Chapter 4 Using the Wireless LAN Utility Double-click the tray icon on your desktop to use Wireless LAN utility. 4.1 General General page shows detail information about the current connection. General Information Status: Wireless network Associated, Ad-hoc Mode or Not Associated. -
Page 13: Profile
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter 4.2 Profile Profile can keep your favorite wireless setting among your home, office, and other public hotspot. You may save multiple profiles and activate the one at your preference. - Page 14 All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter After selecting Add/Edit button, Wireless Network Properties screen will appear, enter a name and SSID for the new profile. Infrastructure Mode: If you want wireless computers to communicate with computers on wired network via a wireless access point.
-
Page 15: Available Network
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter 4.3 Available Network Under Available Network tab, you will know information of all surrounding wireless networks from the last scan. Click Refresh to update and refresh. Or Select a SSID to add to your profile. -
Page 16: Chapter 5 Troubleshooting
2. I cannot communicate with the other computers linked via Ethernet in the Infrastructure configuration. Make sure that the PC to which ZEW1505/ZEW1605/ZEW1605A is associated is powered Make sure that ZEW1505/ZEW1605/ZEW1605A is configured on the same channel and with the same security options as with the other computers in the Infrastructure configuration. - Page 17 BSS with multiple clients associated to it. Check that the Network Connection for the wireless client is configured properly. If Security is enabled, make sure that the correct encryption keys are entered on both ZEW1505/ZEW1605/ZEW1605A and the access point.
-
Page 18: Appendix A Specifications
All manuals and user guides at all-guides.com 802.11g Wireless Network Adapter APPENDIX A Specifications Standards IEEE 802.11g, IEEE 802.11b Frequency Band 2.412GHz ~ 2.4835GHz IEEE 802.11b : DBPSK / DQPSK / CCK Modulation IEEE 802.11g : BPSK, QPSK, 16QAM, 64QAM 11 Channels (USA, Canada) Channels 13 Channels (Europe)
