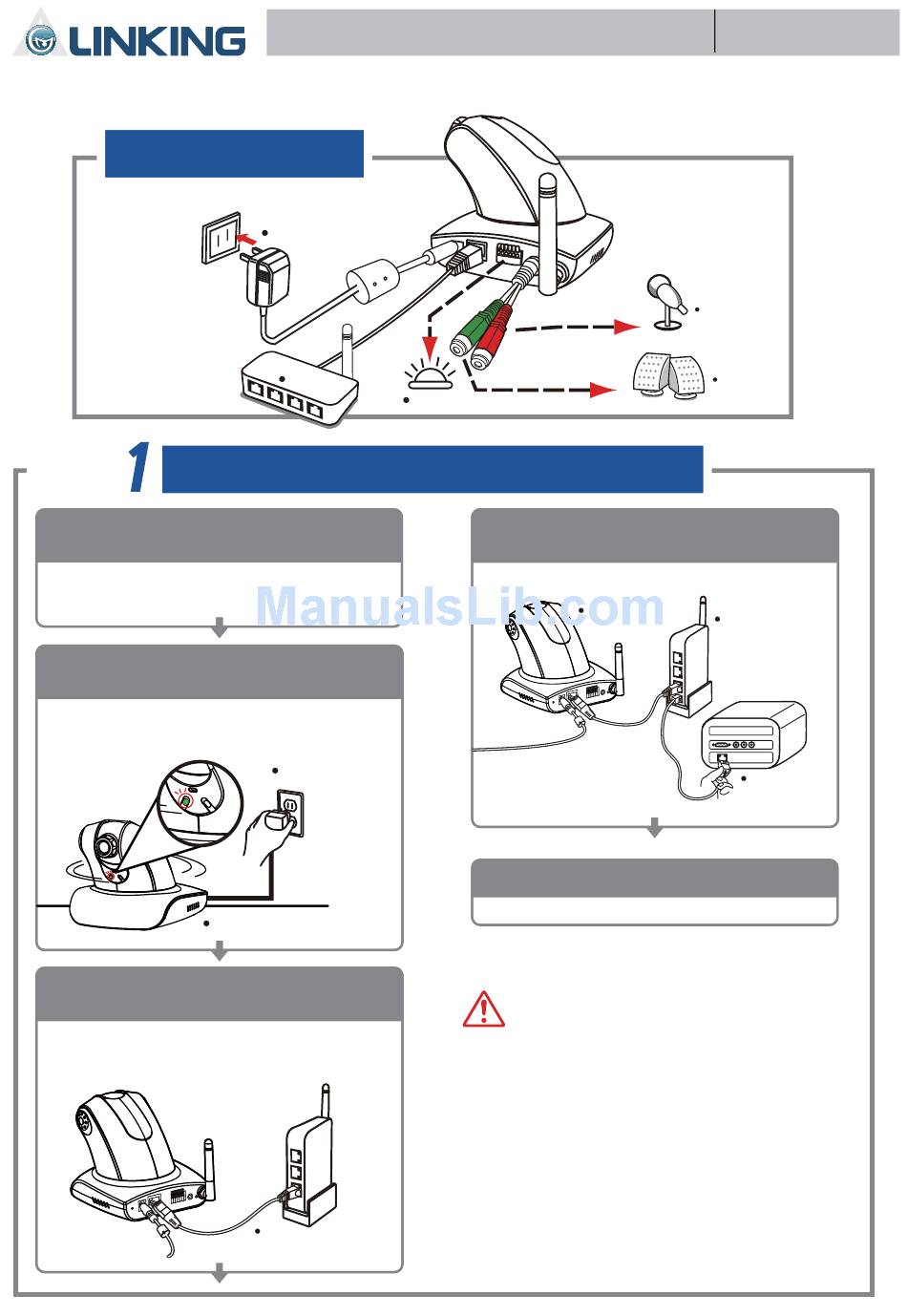

Connection diagram
Step
Connect the product to the switch hub and PC.
1
Prepare the product, your PC and
switch hub ready for connection.
Make sure that your PC has a LAN port
available for connection to the network cable
of the product.
2
Connect the product to the power
source (as shown in the figure).
When you connect the product to the power
source, the camera rotates once and the green
LED on the right side of the camera lights up.
3
Connect the product to the switch
hub (as shown in the figure).
Use a network cable and plug it in the LAN port
of the product. Plug the other end of the cable
in the LAN port of the hub.
Megapixel Pan/Tilt IP Camera
ALC-9751/9751W
Power
HUB
power
Automatic rotation
HUB
Alarm
4
Connect the switch hub to your PC
(as shown in the figure).
5
Turn on the power.
Turn on the power of the PC and hub.
Attention
1. Where no switch hub is available, you can
search and set up the camera using the
network peering approach. However, you may
need a jumper and need to change the LAN
configuration on your PC for this purpose. It is
recommended to request a qualified engineer
for the connection or execute the network
peering referring to the user's manual.
2. Don't tilt the camera to avoid disrupting
operations.
Quick Guide
MIC
Speaker
IP Cam
HUB
PC
