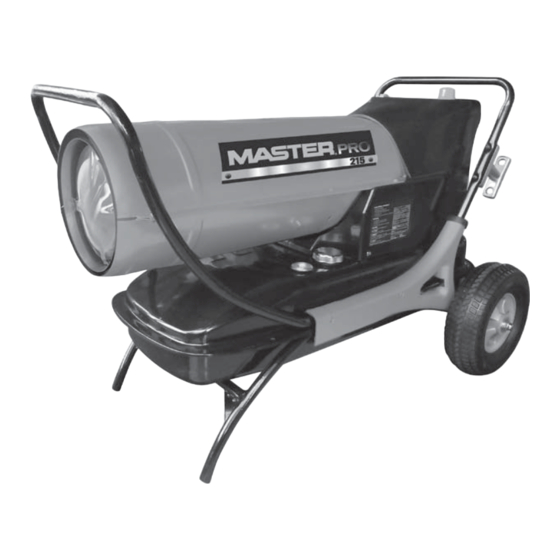

Master Pro MHP-135-KFA Operating Instructions Manual

Master pro

Hide thumbs Also See for MHP-135-KFA:

User's manual & operating instructions (48 pages)

User's manual & operating instructions (16 pages)

User's manual and operating instructions (32 pages)

page of 16

/ 16
Bookmarks

Quick Links

Download this manual See also: User's Manual and Operating Instructions

MHP-135-KFA / MHP-190-KFA / MHP-215-KFA

DANGER

instructions and warnings provided with this heater. Failure to comply can result in fire or explosion

that can cause property loss, bodily injury, or loss of life. Only persons who can follow and

understand these instructions should operate or service this heater. If you need heater info; such as

an operating manual, labels, etcetera, contact Pinnacle Products International at 800-641-6996.

DANGER

air (Oxygen) from within the area in which it is used. Failure to provide adequate combustion and

ventilation air will result in asphyxiation, carbon monoxide poisoning, bodily injury or death. Refer to

"Ventilation" on Page 6.

668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free (800)-641-6996

Fax: (215)-891-8461

Model Numbers

This is an unvented portable heater that uses

Be sure to comply with the

701000112-13

Need help?

Do you have a question about the MHP-135-KFA and is the answer not in the manual?

Questions and answers

Summary of Contents for Master Pro MHP-135-KFA

Page 1 Model Numbers MHP-135-KFA / MHP-190-KFA / MHP-215-KFA DANGER Be sure to comply with the instructions and warnings provided with this heater. Failure to comply can result in fire or explosion that can cause property loss, bodily injury, or loss of life. Only persons who can follow and understand these instructions should operate or service this heater.
Page 2 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Safety Information..........1-2 Wiring Diagram..........10 Troubleshooting Guide........11 135 / 190 / 215-KFA Assembly......4-5 Exploded View...........12 Operation............6-7 Parts List............13 Ventilation.............6 Warranty.............14 Maintenance...........8-10 Keep combustibles such WARNING as; building materials, paper or cardboard a safe distance away from the heater as recommended by these instructions.
Page 3 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE WARNING WARNING ALWAYS use only the electrical power (voltage and The products described in this manual are frequency) specified on the model plate of the heater. Kerosene forced air heaters are primarily ALWAYS use only three-prong, grounded outlet and intended for use for temporary heating of extension cord.
Page 4 120VAC / 60Hz 120VAC / 60Hz 120VAC / 60Hz Amps 2.92 Phase Single Single Single Features Models: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA Front Handle Hot Air Outlet Upper Shell Digital Display Power Switch Thermostat Knob Rear Handle Lower Shell Cord Wrap...
Page 5: Assembly Instructions
NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Assembly Instructions Models: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA Remove the heater and all packaging Tools Needed: materials from the shipping carton. - Phillips Head Screw Driver - 8 mm open end wrench...
Page 6 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Assembly Instructions Models: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA 1. Insert axle through holes in wheel support. 6. Attach rear handle with (4) long screws (50 mm) and (4) nuts through the first second 2.
Page 7 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Kerosene (1-K) For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. eliminate contaminants, such as sulfur, which can cause a rotten egg odor during the operation of the heater.
Page 8 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE 1. Fill the tank with kerosene or other approved The room temperature display will indicate the fuel until needle on fuel gauge points to “F”. following: 2. Replace fuel cap and tighten firmly. - When the temperature is less than 0 ºF the 3.
Page 9 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance WARNING Models 135-KFA / 190-KFA / 215-KFA: 1. Drain fuel through the drain plug in the bottom DO NOT TAMPER WITH THE UNIT. HAVE of the fuel tank. A COMPETENT SERVICEMAN MAKE ANY 2.
Page 10 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance Clean and re-gap every 600 hours of operation, or Blades should be cleaned at least once per replace as needed. After removing the spark plug, heating season, depending on conditions. clean the terminals with a wire brush.
Page 11 POWER LIMIT CON4 FUSE SWITCH CONTROL 5A/250VAC BLACK ACN1 POWER PLUG LEVEL WHITE BLACK SWITCH AC 120V 60Hz BLACK GREEN EARTH Figure 15: MHP-135-KFA / MHP-190-KFA / MHP-215-KFA © 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual...
Page 12 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Problem Possible Cause Solution Heater Ignites, but main PCB shuts 1. Incorrect pump pressure. 1. Adjust pump pressure. off after a short period of time. shows “E1”. 4.
Page 13 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE © 2013, Pinnacle Products International, Inc. Kerosene Forced Air Heater User’s Manual...
Page 14 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE MHP-135-KFA MHP-190-KFA MHP-215-KFA Fuel Tank Assembly 70-002-0610 70-002-0620 70-002-0620 Drain Plug 70-002-0105 70-002-0105 70-002-0105 Fuel Gauge Assembly 70-007-0210 70-007-0210 70-007-0215 Fuel Filter Assembly 70-003-0200 70-003-0200 70-003-0200 Fuel Cap...
Page 15 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Pinnacle Products International, Inc. warrants this heater If Pinnacle Products International, Inc. to the original retail purchaser only, to be free from defects be in normal operating condition, or not defective the item in material and workmanship for a period of one (1) year will be returned freight collect.
Page 16 © 2013 Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free (800)-641-6996 Fax: (215)-891-8461...
