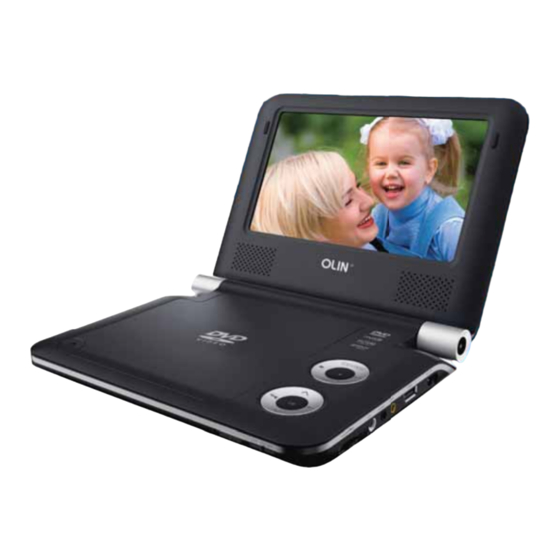

Summary of Contents for Olin PD-720B
-
Page 3: Precautions
PRECAUTIONS CAUTION For Customer Use: Enter below the serial number that is located on the RISK OF ELECTRIC SHOCK bottom of the unit. Retain this information for future DO NOT OPEN reference. CAUTION: TO REDUCE THE RISK OF FIRE AND ELEC- TRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. - Page 4 PRECAUTIONS Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. CPRM Content Protection for Removable Media (CPRM) is a hardware-based technology designed to enforce copy protection restrictions through built-...
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future refer- ence. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. - Page 6 IMPORTANT SAFETY INSTRUCTIONS Using the unit in a Vehicle : On no account should this unit be used by the driver of a moving motor vehicle, or left unsecured in the vehicle whilst driving. If this unit is being used by a passenger in your vehicle, be sure that it is secured or held safely, and does not obstruct any safety device (i.e.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS for long periods of time. This will prevent damage to the product due to lightning or power-line surges. If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 8: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ..........................1 IMPORTANT SAFETY INSTRUCTIONS ..................3 TABLE OF CONTENTS ........................6 PACKAGE CONTENTS ........................8 ABOUT OPTICAL DISCS ........................9 Disc Requirements........................9 Disc Care and Maintenance ....................9 Handling a Disc ........................9 Cleaning a Disc ........................9 LOCATION OF CONTROLS ......................10 Front View .......................... - Page 9 TABLE OF CONTENTS Repeat A-B Mode ........................18 Repeat Playback of a chapter / Title / All of a Disc ..............18 LCD Menu ..........................19 To acess the USB/SD mode......................19 SETUP ............................20 Language ..........................20 Video ............................20 Audio ............................21 Rating .............................21 Misc ............................21 SPECIFICATIONS .........................22 TROUBLESHOOTING ........................23...
-
Page 10: Package Contents
PACKAGE CONTENTS Please make sure the following items are included in the package. If any items are missing, please contact your local dealer. Menu Title Main unit Remote Control AC Adapter HEarphones... -
Page 11: About Optical Discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type Disc Mark Content Type Disc Size Max. Playback Time 133 min (SS-SL) 242 min (SS-DL) Audio + Video DVD-Video Discs 12 cm (moving picture) 266 min (DS-SL) 484 min (DS-DL) Audio Compact Discs (CDs) Audio... -
Page 12: Location Of Controls
LOCATION OF CONTROLS 7″ TFT LCD Speaker LCD/USB/SD Button Play/Pause Button Setup Button Stop Button Direction Buttons Next (Right) Button Enter Button Previous (Left) Button Open Button Front View Setup LCD /USB/SD To access the setup menu which various features •... -
Page 13: Right View
LOCATION OF CONTROLS DC 9V in Jack USB Port Video Jack Audio Jack Headphone Jack SD Slot Volume Dial Battery Compartment Ventilation Slots Right View Remote Sensor Power Switch DC 9V IN Jack To connect to the AC Adapter / DC 16V Car adapter for power supply. USB Port For use with USB flash drives. -
Page 14: Remote Control
LOCATION OF CONTROLS Remote Control Display/Setup Zoom Subtitle Power Direction Buttons Next Repeat A-B Previous Enter Fast Forward Fast Reverse Repeat All Play/Pause Menu Menu Audio Angle Numeric Buttons LCD/USB/SD Title Title... -
Page 15: Connections
CONNECTIONS Audio and Video Connections Refer to the owner’s manual of the external device as well. Before connecting the power source, ensure that all the connections are properly done. USB Connection Insert the USB into the USB port on the left panel of the main unit. With no disc loaded or in stop mode, press and hold the LCD/USB/SD button to enter source mode. -
Page 16: Power Connection
CONNECTIONS Power Connections • Connecting to the wall outlet Caution: To DC 9V in Jack • Do not connect the power plug to a power outlet other than that which Adapter: is indicated here and on the label This adapter operates on as this may result in the risk of fire 100-240V~~50/60Hz 0.3A MAX DC OUT: 9V... -
Page 17: Getting Started
GETTING STARTED Using the Remote Control To load a battery in the remote: Pull in the direction of the arrow. Slide the compartment out. Place the battery in the compartment with the positive side ( + ) facing up. Push the compartment in to close. •... -
Page 18: Power Supply
BASIC OPERATIONS Prepare the connections and power supply. Load a disc. Press the Open button to open the disc compartment lid. Load a disc with the label-side facing up. Close the lid manually. If a single-sided disc is loaded upside-down, the player will display “BAD DISC”. Start playback. -
Page 19: Numeric Keypad
BASIC OPERATIONS Adjusting the Volume • Turn the Volume Control dial to adjust the volume level up or down. Disc Error Messages The following messages will be displayed on-screen if there is a problem with the format of the loaded disc. •... -
Page 20: Function Buttons
FUNCTION BUTTONS Display/Setup • Press the DISPLAY button once to show playback information. • Press it twice to enter the player’s setup menu. Enter the Setup menu to adjust the player’s internal settings, please see the SETUP section for more details. Zoom Press ZOOM to change the magnification level of the picture. -
Page 21: Lcd Menu
FUNCTION BUTTONS LCD Menu Briefly press this button to display the LCD menu. Brightness Contrast Color Mode : 16:9 Reset Press up/down direction button to highlight item and then make adjustment by left/right direc- tion button. Press up/down direction button to select Mode and then press the Enter button to toggle the screen dimension between 16:9 and 4:3. -
Page 22: Setup
SETUP Various features of the player can be adjusted in the SETUP menu. 1. Press twice to enter the player’s setup menu. 2. Press the direction buttons to select the desired item. 3. Press ENTER to confirm. English English English English Language Video... -
Page 23: Audio
SETUP Channel Output Rating Sets the maturity rating level of the player. The player will not play any discs rated Levels 1 to 8. Parental Control higher than this setting. (8: ADULT is de- This setting is password protected (the fault) default password is: 8888). -
Page 24: Specifications
SPECIFICATIONS /PAL 200 x 157 x 43mm 700g Specifications and manual are subject to change without prior notice. -
Page 25: Troubleshooting
TROUBLESHOOTING There is no power to the device. • Ensure that the Power Switch on the main unit is physically set to the ON position. • Ensure that the AC adapter cord is securely connected to the player and the proper wall outlet. The device will not play the disc. - Page 26 TROUBLESHOOTING The remote control doesn’t work. • Ensure that the Power Switch has been physically set to the ON position. • Ensure that there are no obstacles between the remote and the player. • Point the remote at the remote sensor on the main unit. •...
