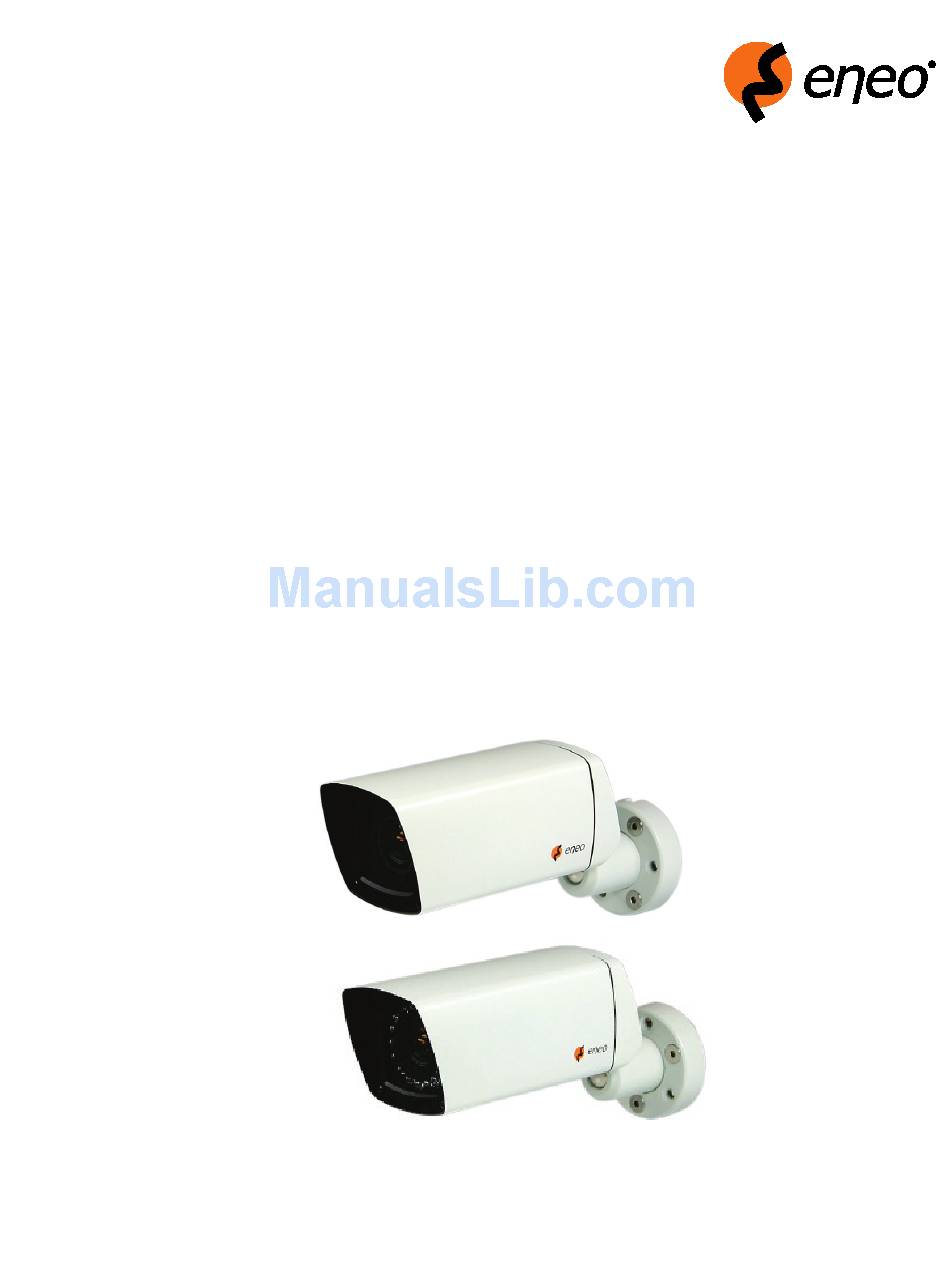

- Page 1 INSTALLATION AND OPERATION MANUAL ULTRACLEAR Resolution with SONY Effio-S DSP INFRARED WEATHERPROOF CAMERA VKC-1327C/W3 VKC-1327C-IR/W3...
-
Page 2: Table Of Contents
Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. Drilling Plan ………………………………………………….…............9. Dimensional Drawings ……………………………………………............ - Page 3 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 4: Safety Instructions And Notes
• The camera should never be operated in the water. 2. General Descriptions VKC-1327C/W3, VKC-1327C-IR/W3 which realizes 700TVL resolution and a crisp color reproduction with High Density 1/3" Sony Super HAD CCD II (960H) and Effio-S image signal processor. With Effio-S digital imaging system, - Delivers the crystal clear images with 700TVL resolution that accurately capture every aspect of any scene. -
Page 5: Supplied Items
3. Supplied Items • 1x Weather Proof Color Camera • 1x Installation and Operating Instructions • 1x ⒜3mm L-Hex wrench • 3x ⒝Mounting screws • 3x ⒞Anchors • 1x ⒟Shrink tube • 1x ⒠Easy Installation cable • 1x ⒡Silica gel bag (4g) for the replacement when installing. ⒟... -
Page 6: Installation Instructions
① Housing body ② 17 IR LEDs (VKC-1327C-IR/W3 only). ③ Lens hood ④ Window ⑤ Front cover ⑥ Neck ⑦ Ball housing ⑧ Rear cover screws, 2x (not visible) ⑨ Rear cover ⑩ Neck fastening screws, 3x ⑪ Screws for installation kit, or (b) mounting screws, 3x ⑫... - Page 7 Easy Installation cable at the cable end 5.2 Installation Procedure Connection (Easy installation) at the cable end 1. The cover cap serves to protect against dirt during the installation (e.g. when the cable is led through a wall). 2. The attached shrink tube serves to protect the connection. To use this, cut off a suitable amount, push it over the connection and shrink it.
-
Page 8: Setup Menu
5.2.2 Installation on Ceiling It is available for the upside down installation on the ceiling by re-arranging the camera module inside the housing to be turned 180°. The modification for upside down mounting must be carried out by authorized personnel. 5.2.3 NOTE –... - Page 9 FACTORY DEFAULT in this manual may NOT be the same as the default values by FACTORY SET due to the changes for the improvements or the customers requirements. To enter menu, press ● when MENU is not active.. 6.2 MAIN menu MAIN Default Descriptions...
- Page 10 6.3 EXPOSURE menu EXPOSURE menu provides the parameters which control the light level and enhance the dynamic range of video. EXPOSURE Default Descriptions Can set to AUTO or MANUAL. AUTO - Video level is automatically controlled to follow the settings of EXPOSURE MODE, BRIGHTNESS, GAIN-UP SEQ and SENS-UP.
- Page 11 6.3.1 SHUT/AGC AUTO menu To enter SHUT/AGC AUTO menu, press ● at MAIN>EXPOSURE>SHUTTER/AGC>AUTO. AUTO SETUP Default Descriptions OUTDOOR Selects OUTDOOR or INDOOR. (IR LED OUTDOOR – Optimized for the outdoor application with the dynamic EXPOSURE version) range and the sharpness. Smear may occur at bright spot light. MODE INDOOR –...
- Page 12 6.3.2 SHUT/AGC>MANUAL menu MANUAL Default Descriptions SETUP MODE SHUT Selects from SHUT and DSS. SHUT sets the manual shutter to 1/60,1/100,1/250,1/500,1/1000, SHUT 1/60 1/2000,1/4000 or 1/10000 sec. DSS sets the fixed sens-up rate to 2x ~ 256x fields. Sets AGC gain in dB. Higher gain compensates brighter but noise increases.
- Page 13 6.3.4 HLC/BLC HLC/BLC Default Descriptions HLC clips out the highlight area and masks it as a single color. OFF – Disables HLC function. AUTO – HLC switches ON/OFF according to the brightness of the overall image. ON – Video will be clipped out and masked for the area which exceeds CLIP LEVEL.
- Page 14 BLC OFF BLC ON BLC ON 6.4 LENS menu BLC OFF To enter LENS menu, press ● button at MAIN menu>LENS. AUTO IRIS Default Descriptions Fixed to DC ONLY. TYPE This camera does NOT support video type auto iris lens. Adjusts the iris control speed.
- Page 15 6.6 DAY/NIGHT menu To enter DAY/NIGHT menu, press ● button at MAIN menu>DAY/NIGHT. AUTO mode in DAY/NIGHT is used only for a camera which does not have a light sensor. DAY or NIGHT is decided by the amount of the light through the lens only.
- Page 16 6.7 3D-NR SETUP menu 3D-NR is Three Dimensional Noise Reduction which reduces the noise by the multi frames. Noise Reduction is effective at low light. LEVEL sets the strength of noise reduction for 3D Noise Reduction. Higher setting stands for stronger reduction. Too high setting will result in loss of sharpness and the tail effect of a comet in 3D-NR.
- Page 17 PICT ADJUST Default Descriptions ATW(Auto Trace White Balance) – Automatically tracks the changes of color temperature and continuously adjusts the white balance. The white balance range is 1,800K~10,500K. See 6.8.1 ATW SETUP and MANUAL WB menu for setting variables. WHITE BAL ANTI CR PUSH –...
- Page 18 MANUAL WB Default Descriptions To increase the blue component from MANUAL WB, B GAIN(+) press ● button at B GAIN(+) PUSH ENTER. To decrease the blue component from MANUAL WB, B GAIN(-) press ● button at B GAIN(-) PUSH ENTER. PRESET Sets MANUAL WB to the preset gain which was set by factory.
- Page 19 6.9 SPECIAL menu In SPECIAL menu, MOTION DET, PRIVACY, CAMERA ID, LANGUAGE, PIXEL COMP. and FACTORY RESET can be set. To enter SPECIAL menu, press ● at MAIN >SPECIAL. 6.9.1 MOTION DET menu Up to 4 motion detection areas are available and each area is programmable in size and location. The motion is displayed by means of blocks when MAIN menu>SPECIAL>MOTION DET and BLOCK DISP are ON.
- Page 20 6.9.2 PRIVACY menu Up to 15 privacy areas are available and each area is programmable in size and location. The privacy areas are masked with the selected color and/or mosaic. To enter PRIVACY menu, press ● button at MAIN menu>SPECIAL>PRIVACY. PRIVACY Default Descriptions...
- Page 21 6.9.3 CAMERA ID menu Up to 10 characters can be input for camera ID. To enter CAMERA ID menu, press ● button at MAIN >SPECIAL>CAMERA ID. Use ▲,▼,◀,▶ buttons to move a block cursor in character table and press ● button to input the selected character.
- Page 22 PIXEL Default Descriptions COMP Sets the threshold level to judge the white defect pixel. If the amplitude of a pixel at iris close exceeds the threshold level, it will be judged as a white defect pixel and compensated up to 64 pixels. Low value sets low threshold and whiter defect pixel will be detected.
-
Page 23: Specifications
. Specifications Model Name VKC-1327C/W3 VKC-1327C-IR/W3 Image Device High Density 1/3" Sony Super HAD CCD II (960H) Effective Pixels 976(H) X 582(V) TV System Scan Freq. 50Hz(V), 15.625Khz(H) Synchronization Internal H. Resolution 700TVL Sensitivity 0.0005Lux (F1.2 at 40Ire, DSSx4) S/N Ratio... -
Page 24: Drilling Plan
8. Drilling Plan 9. Dimensional Drawing (Unit: mm) - Page 25 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Technical changes reserved Rödermark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / ©...
