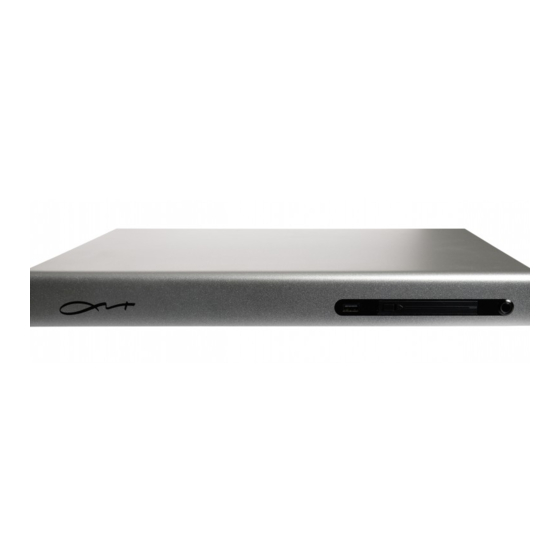

QAT RS3 User Manual

Music server
Hide thumbs Also See for RS3:
Table of Contents

Advertisement

Quick Links

QAT Music Server RS3
User's Manual
1. General Description ...............................................................3
1.1 Product Features.............................................................3
1.2 Technical Parameters........................................................4
1.3 RS3 Overview..................................................................5
1.4 Hard Installation................................................................6
2. Power on/off...........................................................................7
3. Getting Started..........................................................................8
4. Packing List................................................................................9
5. Maintenance and Service.....................................................................9
6. After-sale Service....................................................................10
Thank you for choosing a QAT product, please read the user manual
carefully before usage.
[键入文字]
QAT Audio Technology Ltd.

Advertisement

Table of Contents
loading

Related Manuals for QAT RS3

Summary of Contents for QAT RS3

  • Page 1: Table Of Contents

    1.3 RS3 Overview………………...…………………..….…..…...…..5 1.4 Hard Installation……..…………………..….……………...6 2. Power on/off…………………………………………………….…….…….7 3. Getting Started……...……………………………..………..……..…..8 4. Packing List..……………...…………..……………..……..…..9 5. Maintenance and Service..............9 6. After-sale Service……………..……………………..……………..…...10 Thank you for choosing a QAT product, please read the user manual carefully before usage. [键入文字] QAT Audio Technology Ltd.

  • Page 2: Important Safety Instructions

    All units are shipped with the electric plug and voltage corresponding to the target market standard. If the voltage marked on the rear panel is different from your locale standard, or the plug does not fit, please inform your local distributor or QAT Audio Technology Ltd. Do not disassemble the unit Do not open the unit, for reducing the risk of electric shock.

  • Page 3: General Description

    1. General Description 1.1 Product Features RS3 Music Server is a 1U rack unit, which can connect to your intelligent home control system. It’s a high quality hi-fi music server that can play full bandwidth, CD quality audio from digital sources as hard disks and USB external storage.

  • Page 4: Technical Parameters

    ● Sampling Ratio: 44.1kHz – 192kHz ● S/N Ratio: 110dB ● Voltage: A110 - 240v ● Power: ≤ 35W ● Supported remote control maintenance ● Colour: Black/ Silver ● Dimensions: 435*262*45mm ● N.W: 4 KGS [键入文字] QAT Audio Technology Ltd.
  • Page 5 1.3 Product Overview Front Panel： Rear Panel: The Service port is only for after-sale-service, it is not a user-accessible feature! [键入文字] QAT Audio Technology Ltd.

  • Page 6: Hard Installation

    Mounting Flanges are used to install the Music Server into a rack. 1.4 Hard Disk Installation The front of the unit contains a latch that opens the HD storage when slid to the right side. [键入文字] QAT Audio Technology Ltd.

  • Page 7: Power On/Off

    ◆ Hard Disk Connection port is in the back, at the bottom. ◆ Support of 2.5 inch HDD, SSD hard disk; Max. capacity is 1TB. ◆ Please do not remove Hard Disk while playing music. 2. Power on/off Please refer to product overview 1.3 [键入文字] QAT Audio Technology Ltd.
  • Page 8 The QAT app also contains the function to switch off the unit remotely. If you want to shut down the unit completely, please press the power switch on back of the unit.

  • Page 9: Getting Started

    3. Getting started 3.1 Operate by Central Control Software Connect RS232 plug from the Central Control Equipment to the RS3 rear panel , then operate RS3 by Central Control Software, the interface protocol is included in the packaging of the Music Server.

  • Page 10: Maintenance And Service

    5. Maintenance and Service QAT RS3 doesn’t require regular maintenance in normal use. However, there are a few things that will help to keep it in good operating and cosmetic condition ◆...

  • Page 11: After-Sale Service

    6. After-sale Service QAT RS3 Music Server comes with a 2-Year warranty. QAT products are identified by a unique serial n° (S/N) located at the back of the unit. This number is required to register your product and validate your warranty.
