Summary of Contents for QAT MS5

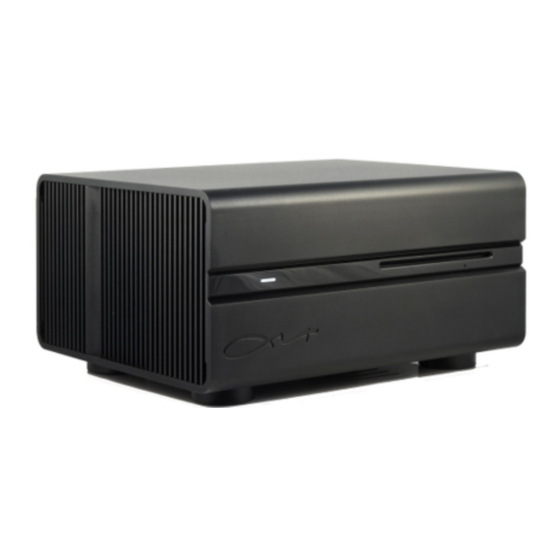

- Page 1 MS5 Music Server USER MANUAL...
-
Page 2: Table Of Contents
3.2 Using USB wireless adapter ..................6 Basic operation of QAT Remote..................7 4.1 Acquire music ......................7 4.1.1 Rip CD tracks to hard disc of MS5 ..............7 4.1.2 Acquire music from external USB storage ............9 4.2 Play music......................10 4.2.1 Play an album ....................10 4.2.2 Play selected tracks in an album ..............10... -
Page 3: Product Features
1. Product Features TEAC CD drive for ripping Built-in 2TB 3.5-inch Seagate Enterprise hard drive for music data storage (Saving up to 3000 music CDs in WAV format or 5000 music CDs in FLAC format) DAC: Balanced DAC circuitry, 2 Analog-Devices AD1955（192KHz/24Bit）chips ... -
Page 4: Front Panel
Front Panel SUCTION-TYPE EJECT POWER INDICATOR CD-ROM DRIVE... -
Page 5: Rear Panel
Rear Panel XLR OUTPUT ANALOG OUTPUT STANDBY / ON POWER DIGITAL OUTPUT RJ45 POWER OUTLET USB PORT FUSE Fuse Replacement There is a square slot in the middle top of the tube cabin. Please gently open the tube cabin with a screwdriver and change the broken tube with a new one. The fuse is without cathode and anode. -
Page 6: Start Up And Shut Down The Host
It is highly recommended to shut down the host by tapping "shut down music server" button in the QAT Remote software (see details in 4.7). Wait for about 10 seconds until the white light on the front panel turns off, meaning the host is standing by. Now you can press “STANDBY/ON” to turn on the host again, or completely shut it down by switching off the power supply. -
Page 7: Basic Operation Of Qat Remote
4.1.1 Rip CD tracks to hard disc of MS5 Tap “QAT Remote” on your iPad and see the main screen. Insert a CD into the CD-Room. A CD-shaped icon will pop up on the left top corner after a few seconds:... - Page 8 If the user wishes to rip individual tracks, tap the box in front of the track title to deselect it, or use the “select all/deselect all” option. Then tap “ripper”, the tracks will be ripped and imported one by one to the hard disk of MS5, indicated by a progress bar.
-
Page 9: Acquire Music From External Usb Storage
to edit music style tags: to delete music style tags, or tap the name to edit. to complete the operation. to eject the CD. If the user re-inserts the CD which is already imported: The user can choose to: Overwrite: Repeat the above steps. -
Page 10: Play Music
USB connection USB storage connected Select the folder that you want to copy to the host, and tap “Copy to Local Drive”. The user can also back up the albums in the host to external USB storage by selecting and tapping “Backup to USB Storage”. -
Page 11: Set Music Playback Mode
2) Select the track by tapping the box in front of every track title to highlight it (turn orange). Multi-selection is available. 3) Tap play button to play the selected track(s). Note: You can also play a single track by tapping and holding the track title for a second until you see a note icon at the tip of your figure, and then drag it to the play button. -
Page 12: Edit Artist
4.3.2 Edit Artist On the left side of the album playing screen, the icon indicates the artist of the current album. Tap the icon to enter the artist edit screen, where albums by the same artist are listed. To edit the artist of the current album, tap 4.3.3 Edit music style On the left side of the album playing screen, the icon indicates the music style of the... -
Page 13: Use The Playlist
4.4 Use the Playlist 4.4.1 Add albums into the playlist In the main screen, slide the triangle at the right side, and tap Select the album(s) that you want to add to playlist by tapping the small box at the left upper corner of each album (shown by a tick), and tap “OK”. -
Page 14: Play Music From The Playlist
Add music track(s) to playlist Tap to select existing playlist, or tap to add and name a new playlist. 4.4.3 Play music from the playlist to enter playlist. Select your preferred playlist and tap to play the music tracks in sequence. playlist 4.4.4 Edit the playlist Tap the triangle at the right side of the playlist screen, and tap... -
Page 15: Search Music
Edit playlist To delete music or playlist, tap , and tap after it appears. To rearrange the music list, press , drag it up and down, and then drop it to the preferred position. Tap "OK" to exit editing mode. 4.5 Search Music , input keywords and select the search types by ticking the boxes below. -
Page 16: System Settings
/ ON” to start it up again. Clear cached data / picture: to delete the album information stored in QAT Remote and acquire it from the host when it connects again. This is used to correct erroneous album information. -
Page 17: Package Contents
5. Package Contents MS5 (Host) User’s Manual Fuse Power Cable Router Base Net Cable Router Antenna USB Wireless Adapter... -
Page 18: Important Safety Instructions
6. IMPORTANT SAFETY INSTRUCTIONS IT IS IMPORTANT THAT YOU READ AND OBSERVE BOTH THE INSTRUCTIONS IN THIS MANUAL AND THE INSTRUCTIONS ON THE DEVICE. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. Check the working voltage of the DEVICE Please do check the working voltage to make sure it accords with the local standard before using. -
Page 19: After-Sales Service
products, please visit http://www.qat-audio.com We recommend all users make a copy of the data saved in the hard disc of MS5, in case of loss of some or all of the files on the server. QAT accepts no responsibility for any loss of data that is stored by users in the MS5.
