Console - Confidence Vibration plate power plus Owner's Manual

1. Remove the three screws from the bottom of the console
2. Connect the signal cable (A) of the support tube with wire (B) from the console
3. Connect the Heart Rate sensors (D) of the support tube with the Heart Rate sensors
(C) from the console
4. Insert the wires into the hole in the back of the console and push the console down
onto the support tube.

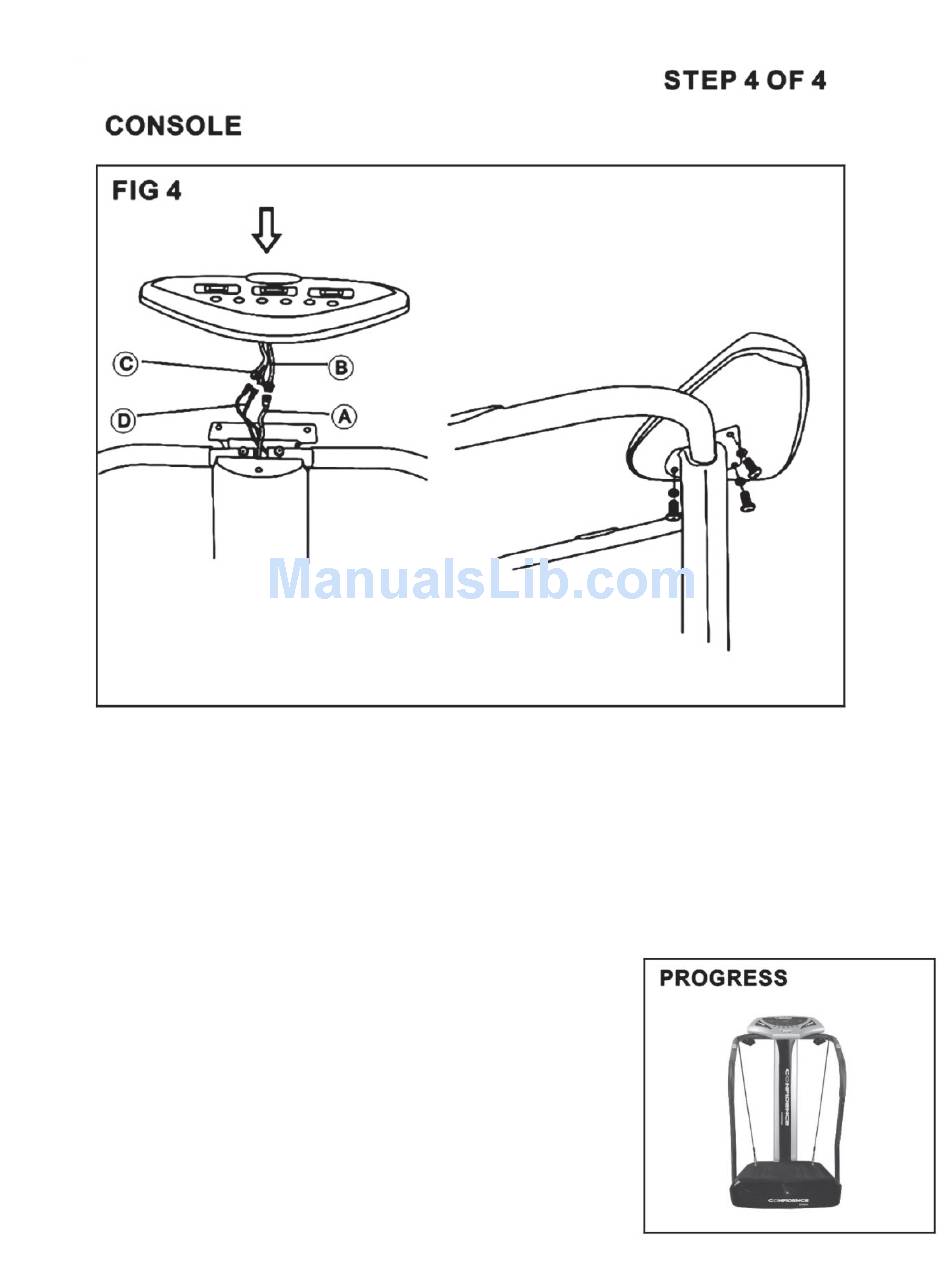

5. Lock the console onto the support tube by reinserting the 3 screws. See FIG 4
