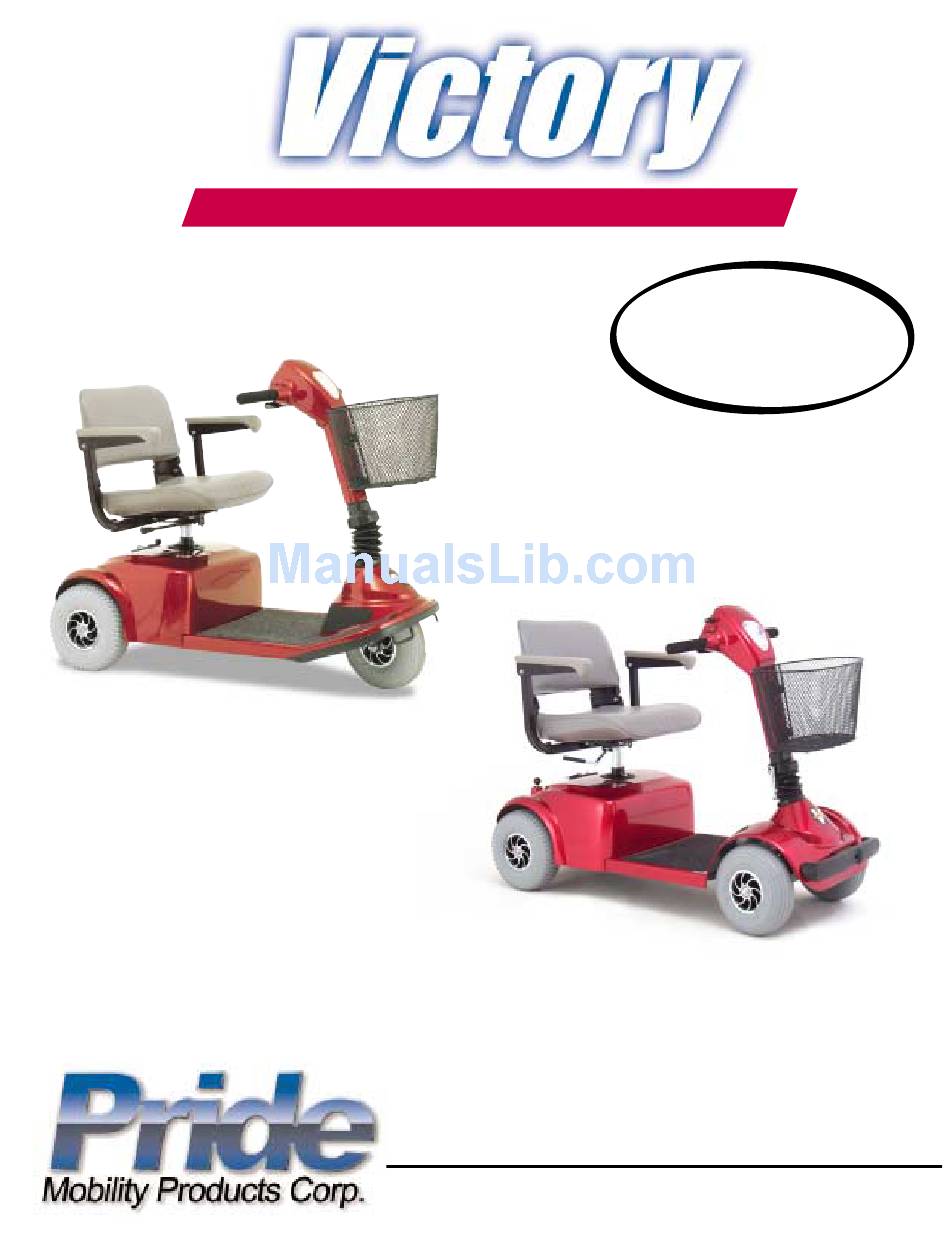

  • Page 1 Owner’s Manual ATTENTION: Please read the content of your owner’s manual before operating your scooter. The Ultimate In Style & Performance ® Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your scooter. Copyright © 2003 Copyright © 2001 Pride Mobility Products Corp. Pride Mobility Products Corp. Scooter INFMANU1858/REV A/MARCH 03...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION......................... 4 SAFETY ............................6 III. EMI/RFI ............................14 IV. SPECIFICATIONS ........................16 YOUR VICTORY ........................18 VI. BATTERIES AND CHARGING .................... 22 VII. OPERATION ..........................26 VIII. COMFORT ADJUSTMENTS....................28 IX. DISASSEMBLY AND ASSEMBLY ..................30 OPTIONAL ACCESSORIES ....................

  • Page 4: Introduction

    I N T R O D U C T I O N Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new Pride Scooter. Your scooter design combines the most advanced state-of-the-art components with modern, attractive styling.
  • Page 5 Quick Reference Information: Scooter Model:________________________________________________________________________ Serial Number:__________________________________________________________________________ Purchase Date:________________________________________________________________________ NOTE: If you ever lose or misplace your product registration card or this owner’s manual, contact us and we will be glad to send you a new one immediately. Victory www.pridemobility.com...

  • Page 6: Safety

    Your scooter’s road performance features may be influenced by electromagnetic fields caused by cellular tele- phones or other radiating devices, such as hand-held radios, radio and television stations, wireless computer links, microwave sources, and paging transmitters. Learn more about this topic in III. “ EMI-RFI.” www.pridemobility.com Victory...
  • Page 7 When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. See V. “Your Victory.” n Avoid sudden stops and starts.
  • Page 8 5˚ 8˚ 7˚ 5˚ 7˚ VICTORY 3 VICTORY 4 Figure 1A. Maximum Recommended Incline Angle Figure 1. Maximum Recommended Incline Angles WARNING! Any attempt to climb or descend a slope steeper than shown in figures 1 and 1A may put your scooter in an unstable position and cause it to tip, resulting in personal injury.
  • Page 9 1. Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the center/ stop position; and 2. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to a near stop, or when power is removed from the system for any reason. Victory www.pridemobility.com...
  • Page 10 Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and then proceed with extreme caution. NOTE: Safety accessories such as fluorescent flags, are available to order from your authorized Pride Provider. www.pridemobility.com Victory...
  • Page 11 Your scooter is equipped with a manual freewheel lever that when pulled up allows the scooter to be pushed. For more information about how to place your scooter into and out of freewheel mode, see V. “Your Victory.” WARNING! When your scooter is in freewheel mode, the braking system is disengaged.
  • Page 12 WARNING! Do not sit on your scooter while it is in a moving vehicle. Personal injury and/or property damage may result. WARNING! Always be sure your scooter and its batteries are properly secured when it is being transported. Failure to do so may result in personal injury and/or damage to your scooter. www.pridemobility.com Victory...
  • Page 13 Power down your scooter. See VII. “Operation.” n Ensure that your scooter is not in freewheel mode. See V. “Your Victory.” n Make certain that the seat is locked into place and the key is removed from the key switch.

  • Page 14: Emi/Rfi

    Has anyone been injured by the erratic, unintended motion of an electric mobility vehicle? The FDA has reports of injuries that resulted from uncontrolled motion of electric mobility vehicles, but it is not clear just how many of those injuries were actually caused by EMI/RFI. www.pridemobility.com Victory...
  • Page 15 If unintended motion or unintended brake release occurs, turn off your mobility vehicle (by removing the key) as soon as it is safe to do so. If my mobility vehicle moves unintentionally, where should I report the incident? Call the Pride Technical Service Department at 1-800-424-8205 to report the incident. Victory www.pridemobility.com...

  • Page 16: Specifications

    (3 Wheel Victory) 18" Length 49" (4 Wheel Victory) 16" 21"- 29" 41" 58" 3 Wheel Victory Turning Radius 4 Wheel Victory Turning Radius 24 " Figure 5. Victory Dimensions 3.5" 10" Figure 5A. Victory Tire Dimensions (Front And Rear) www.pridemobility.com Victory...
  • Page 17 Model Number(s) 3-wheel: SC1600 4-wheel: SC1700 Available Colors Painted: Candy Apple Red, Viper Blue, Onyx Black Overall Length (3-wheel) Victory 3: 47 in. Overall Length (4-wheel) Victory 4: 49 in. 24in. Overall Width Total Weight Without Batteries 3-wheel 102 lbs., 4-wheel 108 lbs.

  • Page 18: Your Victory

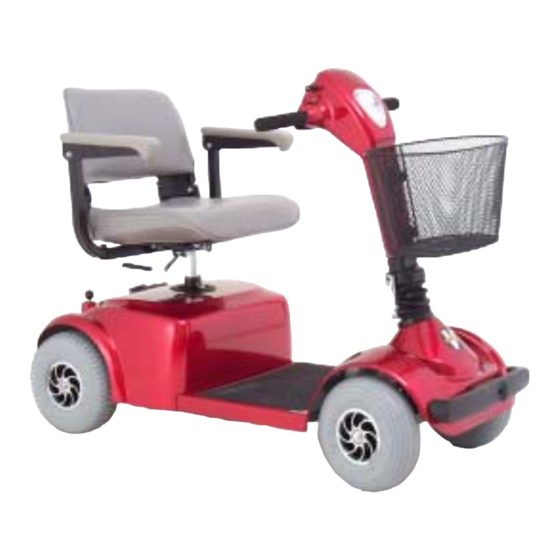

    V . Y O U R V I C T O R Y Your Victory is a motorized electric scooter designed SEAT to enhance your personal mobility. Your Victory is an REAR SECTION FRONT SECTION indoor/outdoor scooter designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots, floors, and driveways.
  • Page 19 Do not hesitate to use the warning horn when you feel its use will prevent accident or injury. Light Switch This is a rocker switch that controls your scooter’s headlight system. n Push up to turn the lights on. n Push down to turn the lights off. Victory www.pridemobility.com...
  • Page 20 The electronic controller module is located behind the batteries and at the forward left corner of the scooter’s rear section. This assembly receives electrical signals from the console controls and sends power to the motor, the brakes, the headlight, and the optional lighting system. www.pridemobility.com Victory...
  • Page 21 The anti-tip wheels are an integral and important safety feature of your scooter. Do not, under any circumstances, remove the anti-tip wheels from your scooter. See figure 8. WARNING! Do not remove the anti-tip wheels or modify your scooter in any way that is not authorized by Pride. Victory www.pridemobility.com...

  • Page 22: Batteries And Charging

    6. When the batteries are fully charged, unplug the charger power cord from the wall outlet and then from the charger power cord receptacle. NOTE: There is a charger inhibit function on your scooter. The scooter will not run and the battery condition meter will not operate while the batteries are charging. www.pridemobility.com Victory...
  • Page 23 Plan your route ahead to avoid as many hills, cracked, broken, or soft surfaces as possible. n Limit your baggage weight to essential items. n Try to maintain an even speed while your scooter is in motion. n Avoid stop-and-go driving. Victory www.pridemobility.com...
  • Page 24 It may take a few days for the temperature of your scooter’s batteries to stabilize and adjust to their new room or ambient temperature. More importantly, it takes a few charging cycles (partial draining followed by full recharging) to establish the critical chemical balance that is essential to a deep-cycle battery’s peak performance and long life. www.pridemobility.com Victory...
  • Page 25 If you intend to use public transportation with your scooter, you must contact the transportation provider in ad- vance to determine their specific requirements. How should I store my scooter and its batteries? See XII. “Care and Maintenance”. Victory www.pridemobility.com...

  • Page 26: Operation

    To stop, slowly release the throttle control lever. The electronic brakes will automatically engage when your scooter comes to a stop. NOTE: Your scooter’s reverse speed is slower then that of the forward speed you preset with the speed adjustment dial. www.pridemobility.com Victory...
  • Page 27 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. Victory www.pridemobility.com...

  • Page 28: Comfort Adjustments

    4. While holding the upper seat post at that height, match up the holes in the upper seat post and the BALL DETENT PIN lower seat post. 5. Fully insert the ball detent pin. 6. Replace the seat. Figure 12. Seat Height Adjustment www.pridemobility.com Victory...
  • Page 29 1. Push the seat lock lever forward to unlock the seat. 2. Rotate the seat to the desired position. 3. Release the seat lock lever to lock the seat securely in place. PUSH FORWARD TO ROTATE SEAT Figure 15. Seat Lock Lever Victory www.pridemobility.com...

  • Page 30: Disassembly And Assembly

    I X . D I S A S S E M B L Y A N D A S S E M B L Y The Victory requires no tools for disassembly. Always disassemble or assemble your scooter on a level, dry surface with sufficient room for you to work and move around your scooter.
  • Page 31 Figure 21. Frame Lockup n Push back on the toggle latch so it locks into place. 6. Connect the front-to-rear cable and both battery har- nesses. 7. Replace the rear shroud. 8. Replace the seat. Figure 22. Frame Halves Victory www.pridemobility.com...

  • Page 32: Optional Accessories

    A C C E S S O R I E S For information concerning these optional accessories, contact your authorized Pride Provider. Single Cane/Crutch Holder Double Cane/Crutch Walker Holder Forearm Crutch Holder Holder Oxygen Tank Holder Quad Cane Holder Front Basket Safety Flag Rear Basket Taillight Cup Holder www.pridemobility.com Victory...

  • Page 33: Basic Troubleshooting

    Push down the manual freewheel lever to restore normal operation to your scooter. See V. “Your Victory.” What if the main circuit breaker repeatedly trips? See V. “Your Victory.”...

  • Page 34: Care And Maintenance

    AXLE BEARINGS AND THE MOTOR/TRANSAXLE ASSEMBLY These items are all prelubricated, sealed, and require no subsequent lubrication. MOTOR BRUSHES The motor brushes are housed inside of the motor transaxle/assembly. They should be inspected periodically for wear by your authorized Pride Provider. www.pridemobility.com Victory...
  • Page 35 For prolonged storage, you may wish to place several boards under the frame of your scooter to raise it off of the ground. This takes the weight off the tires and reduces the possibility of flat spots developing on the areas of the tires contacting the ground. Victory www.pridemobility.com...

  • Page 36: Warranty

    Tires and tire tubes (wear items and not warranted) n Upholstery and seating (wear items and not warranted) n Repairs and/or modifications made to any part of the Victory without specific and prior consent from Pride n Circumstances beyond the control of Pride...
  • Page 37 182 Susquehanna Ave. Exeter, PA 18643 1-800-800-8586 www.pridemobility.com...
