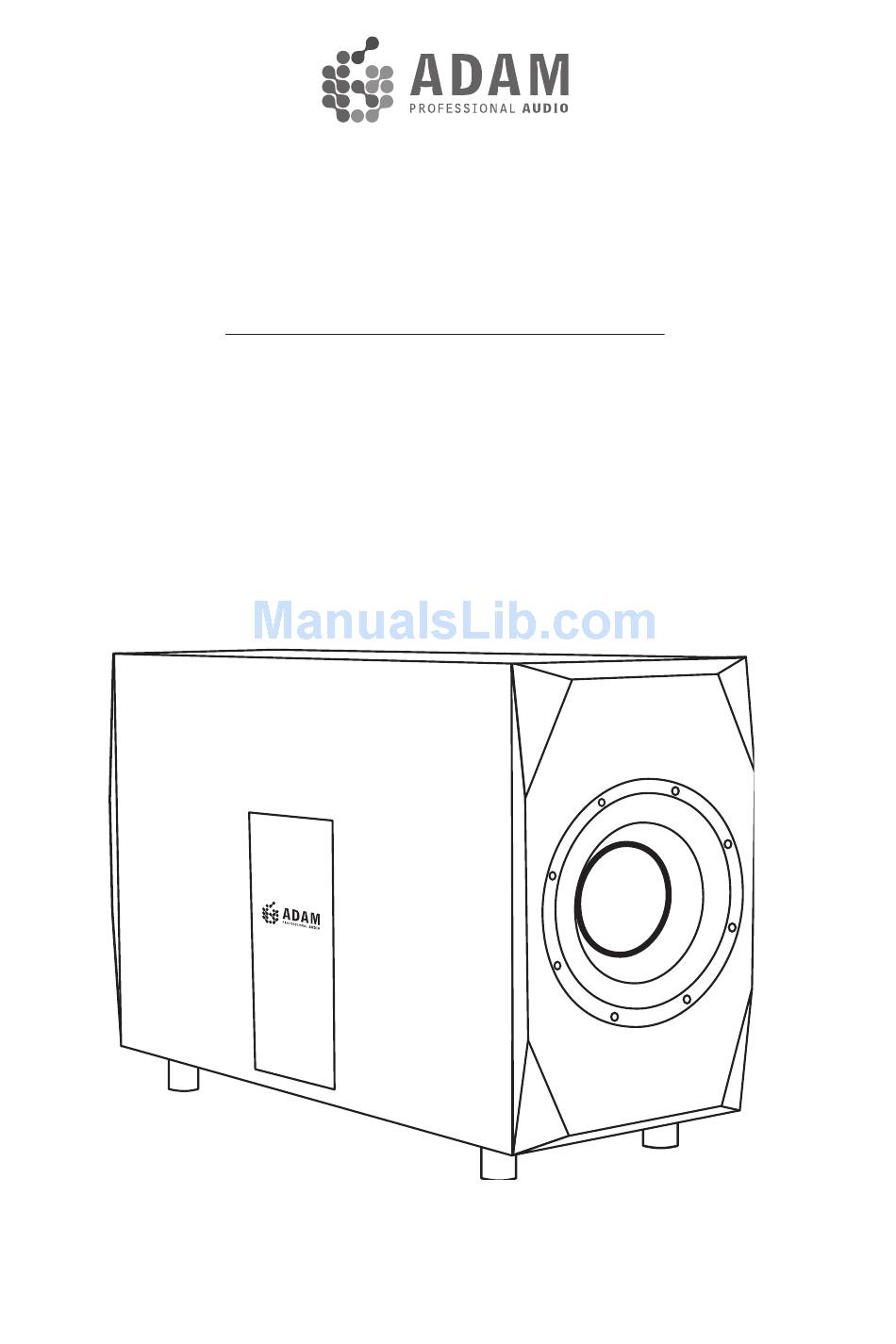

Sub24
active subwoofer
Operation manual / Bedienungsanleitung
english / deutsch

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sub24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Adam Sub24

  • Page 1 Sub24 active subwoofer Operation manual / Bedienungsanleitung english / deutsch...
  • Page 2: Table Of Contents

    First of all, we would like to thank you for choosing ADAM Audio! ADAM Studio Subwoofers are built to a maximum in reproduction quality and perfection. To enjoy the capabilties of your new subwoofer please read the following hints and considera- tions, as the positioning and the acoustical properties of the control room often play a bigger role than you might think.
  • Page 3: Safety Instructions

    Safety Instructions In case of a problem, please either contact your ADAM dealer or us. We are happy to try and help. Always refer servicing to qualified personnel and never attempt to repair this product by yourself. Please read through the following safety instructions completely before setting your system up.
  • Page 4: Quick Start

    Quick Start • After having unpacked your subwoofer, please allow the system to acclimate to the temperature of the room. Please do not connect the subwoofer for approximately an hour. • Make sure the power switch at the control panel is turned off. •...
  • Page 5: Controls And Connectors

    Phase Switch With the Phase switch you can alter the phase of the Sub24 relative to the satel- lites. Practically it means you change the polarity of the bass unit. Depending on the distance between woofer and satellites 0°...
  • Page 6 Dolby® laboratories for use in surround setups. Recommenda- tion: If possible go with the main signal to the Sub24 first and connect your satellites to the Sub24 output, be it XLR symmetrical or RCA asymmetrical. To prevent the satellites from the low frequencies in most cases leads to a better sound from your satellites, as they do not have to deliver the big amplitudes.
  • Page 7 This a symmetrical and buffered output representing the input signal. This en- ables you to chain as many Sub24 in a row as you like. The Sub Level effects the output, so that all possible chainmembers can be levelled at a time. Instead of one very big subwoofer it often is better to have 2 smaller ones to avoid standing waves at very low frequencies.
  • Page 8 Service may be supplied by your ADAM Audio national distributor in the coun- try of residence. In this case, the service costs have to be paid for by the owner of the product whereas the costs for parts to be repaired or replaced are free of charge.
  • Page 9: Limited Warranty

    How to claim repairs under warranty Should service be required, please follow the following procedure: If the equipment is being used in the country of purchase, you should contact your ADAM Audio dealer. If the equipment is being used outside the country of purchase, you should contact your ADAM Audio national distributor in the country of residence.
  • Page 10: Technical Data

    Technical Data Technical data Sub24 Woofer Basket ø 12“ / 310 mm Voie coil ø 2“ / 50 mm Cone Material Coated Paper *1/2 Built in amps RMS/Music 2 x 200 W/300 W Frequency response 22Hz - 150Hz THD > 60 Hz ≤...
  • Page 11 Notes...
  • Page 12 Sub24 Aktiver Subwoofer Bedienungsanleitung deutsch...
  • Page 13 Einleitung Danke daß Sie sich für einen Subwoofer von ADAM Audio entschieden haben. ADAM Studio Subwoofer werden mit dem Ziel größtmöglicher Perfektion und Wiedergabe- qualität entwickelt und gebaut. Damit sich die Fähigkeiten Ihres neuen Subwoofers möglichst gut entfaltet, lesen Sie bitte die nachfolgenden Tips und Überlegungen, denn die Aufstellung im Raum sowie die Eigenschaften des Hörraums sind von größerer Bedeutung für das Ge-...
  • Page 14: Sicherheitshinweise

    Sicherheitshinweise Bei einem Problemfall wenden Sie sich bitte an Ihren ADAM Vertragshändler oder direkt an uns. Wir helfen gerne! Bitte versuchen Sie auf keinen Fall dieses Produkt selbst zu reparieren und beachten Sie die folgenden Sicherheitshinweise, bevor Sie Ihre neuen Lautsprecher in Betrieb nehmen: •...
  • Page 15: Quickstart

    Quick Start • Nach dem Auspacken sollte sich der Lautsprecher ca. 1 Stunde unangeschlossen an die Umgebungstemperatur anpassen. • Stellen Sie sicher das der Netzschalter des Subwoofers ausgeschaltet ist. • Regeln Sie den Ausgangspegel ihrer Anlage herunter, damit zu hohe Schallpegel beim Einschalten zu keinen Schäden führen können.
  • Page 16: Einstellmöglichkeiten Und Anschlüsse

    Einstellmöglichkeiten und Anschlüsse Mode Dieser Tastenschalter ermöglicht die Wahl zwischen zwei Betriebsarten. Signal On: Die Wiedergabe setzt ein, wenn ein Musiksignal registriert wird. 15 Minuten nach Ende des letzten Signals schaltet das Gerät in den Stand By Modus zurück. Continuous: Der Verstärker ist durchgehend angeschaltet. Wir empfehlen den “Signal On”...
  • Page 17 Empfehlung der Dolby® Laboratorien für Surround Sound Wiedergabe entspricht. Empfehlung: Wenn möglich schicken Sie das Signal zunächst in den Verstärker des Sub24 und von dort in die Satelliten. Die Möglichkeit den Baßanteil von diesen Lautsprechern fern- zuhalten führt in der Regel zu einer besseren Qualität der Wiedergabe, da jeder Lautsprecher...
  • Page 18 Hier handelt es sich um einen Ausgang, an dem das Eingangssignal im Cha- rakter unverändert aber elektronisch gepuffert anliegt. Dies ermöglicht die Verkettung beliebig vieler Sub24, so dass auch sehr große Räume beschallt werden können. Input - Balanced und Unbalanced Signale können entweder über die XLR Buchsen symmetrisch...
  • Page 19: Garantie

    Garantie Die ADAM Audio GmbH gewährt auf Ihre aktiven Subwoofer eine beschränk- te Garantie von 5 Jahren. Alle Produkte werden nach den höchsten Qualitätsstandards entwickelt und hergestellt. Sollte ein Produkt wider Erwarten dennoch Mängel aufweisen, gelten folgende Bedigungen für die Inanspruchnahme der Garantie:...
  • Page 20: Technische Daten

    Technische Daten Technische Daten Sub24 Tieftöner Korb ø 310 mm / 12“ Schwingspule ø 50 mm / 2“ Membranmaterial beschichtetes Papier *1/2 Ausgangsleistung RMS/Musik 2 x 200 W/300 W Frequenzgang 22Hz - 150Hz THD > 60Hz ≤ 1% Maximallautstärke ≥120 dB...
  • Page 21 ADAM Audio GmbH ADAM Audio UK Ltd. Ederstr. 16 email: uk-info@adam-audio.com 12059 Berlin GERMANY ADAM Audio USA Inc. email: usa-info@adam-audio.com tel: +49 30-863 00 97-0 ADAM Audio China fax: +49 30-863 00 97-7 www.adam-audio.com email: info@adam-audio.com email: sales@adam-audio-china.com...
