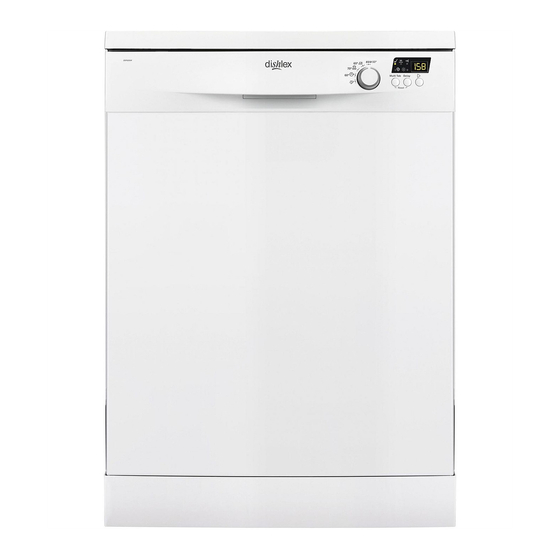

- Page 1 User Manual Dishwasher DSF6205W DSF6205X...
-
Page 2: Table Of Contents
Contents Safety information Daily use Safety instructions Hints and tips Control panel Care and cleaning Programs Troubleshooting Settings Technical information Before first use Warranty Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. -
Page 3: Safety Instructions
If the supply cord is damaged, it must be replaced by the manufacturer, its • Authorised Service Centre or a similarly qualified persons in order to avoid a hazard. Put knives and cutlery with sharp points in the cutlery basket with the •... -
Page 4: Control Panel
• Do not drink and play with the water in the • When you contact the Authorised Service Centre, appliance. ensure that you have the following information that • Do not remove the dishes from the appliance until is available on the rating plate. the programme is completed. -
Page 5: Programs
Indicator Description End indicator. Multitab indicator. Rinse aid indicator. It is always off while the program operates. Programs Program Degree of soil Program phases Consumption values Type of load Duration Energy Water (min) (kWh) Normal soil • Prewash 0.75 11.7 •... -
Page 6: Settings
Settings Program selection mode The appliance is in Program selection mode when the program duration flashes in the display. If the control panel does not show this condition, use the Reset function. Reset With Reset you can cancel the running program or the delay start. The appliance goes back to the Program selection mode. -
Page 7: Before First Use
Activating Rinse Aid with option Multi Tab activated 1. Make sure that the appliance is in Program selection mode. 2. Turn the program knob until the program marker is aligned with 3. Press and hold at the same time Multi Tab and Delay until the indicators start to flash . -
Page 8: Adding Detergent/Multi-Tablets
Adding detergent If the program has a prewash phase, put a small quantity of detergent also in compartment B. Adding multi-tablets The Auto Off function This function decreases energy consumption by deactivating automatically the appliance when it is not operating. The function comes into operation: •... -
Page 9: Option Delay/Multi Tab
Option Delay max. 1. Set the program. 2. Press Delay again and again until the display shows the delay time you want to set. 3. Press Start. The countdown starts to decrease with steps of 1 hour. When the countdown is completed the program starts and the indicator of the running phase come on. Option Multi Tab Activate or deactivate the Multi Tab option before the start of the program. -
Page 10: Hints And Tips
Hints and tips General Loading the baskets The following hints will ensure optimal cleaning and • Only use the appliance to wash items that are drying results in daily use and also help to protect the dishwasher-safe. environment. • Do not put in the appliance items made of wood, horn, aluminium, pewter and copper. -
Page 11: Care And Cleaning
Care and cleaning Warning! Before maintenance, Dirty filters and clogged spay arms deactivate the appliance and disconnect decrease the washing results. Make a the mains plug from the main socket. check regularly and, if necessary, clean them. Cleaning the filters •... - Page 12 Problem and alarm code Possible solution • Make sure that the mains plug is connected to the mains socket. You cannot activate the appliance. • Make sure that there is no a damage fuse in the fuse box. • Make sure that the appliance door is closed. The program does not start.
-
Page 13: Technical Information
Technical information Dimensions Width / height / depth (mm) 600 / 850 / 625 Voltage (V) 220 - 240 Electrical connection 1) Frequency (Hz) Water supply pressure Min. / max. bar (MPa) 0.5 (0.05) / 8 (0.8) Water supply max 60 °C Cold water or hot water 2) Capacity Place settings... - Page 14 Road, Mount Wellington, in respect of owner’s cost and risk while in transit to and from Appliances purchased in New Zealand; Electrolux or its ASC. ‘major failure’ as referred to in clause 10 of 6. Proof of purchase is required before you can make this warranty has the same meaning referred a claim under this warranty.
-
Page 15: Environment Concerns
Appliances or services to which the warranty in relation to you to enable Electrolux to meet its relates. obligations under this warranty. 11. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it. - Page 16 156978620-A-282014...
