Voxoa S70 User Manual

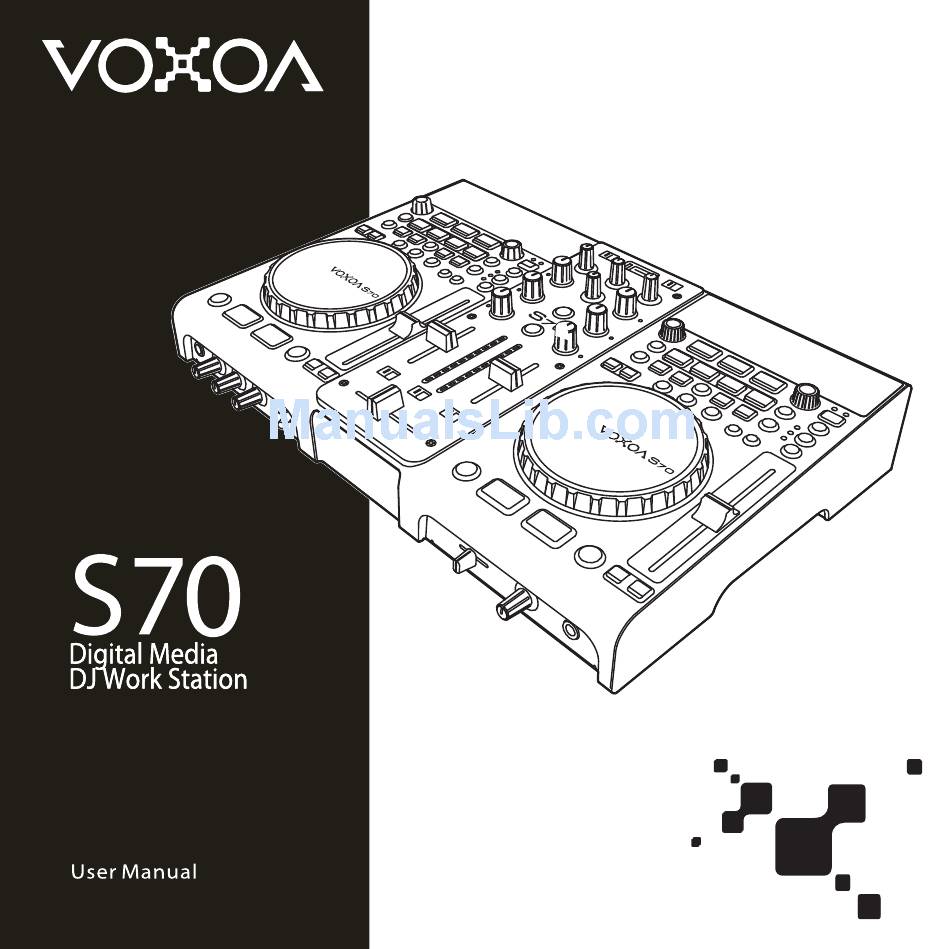

Digital media dj work station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S70 and is the answer not in the manual?

Questions and answers

Related Manuals for Voxoa S70

Summary of Contents for Voxoa S70

  • Page 2: Table Of Contents

    TOP PANEL MIXER SECTION ....................... 67 FRONT PANEL ......................68 REAR PANEL UTILITY MENU ......................70 OPERATIONS ......................72 SOFTWARE INSTALLATION INSTRUCTION ................77 VIRTUALDJ CONTROL AND FUNCTIONS ..............80 VOXOA TUNEBOX SOFTWARE ..................82 MIDI MAP (HEX) ....................... 85 SPECIFICATIONS ....................89...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 17. All warnings on the appliance and in the operating instructions should be adhered to. 18. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifi ers) that produce heat. 19 .Power Sources - This product should be operated only from the type of power source indicated on the rating label.

  • Page 5: Features

    Setting the S70 is easy and fast because you don’t need to waste time connecting cables. You just need to bring the S70 and USB storage and you can DJing. It’s perfect for DJs working events, clubs that need to be able to pack away their system quickly, and any other DJ on the move.
  • Page 6 The mixer’s fader operation can be used to perform back cue and quick start. DSP Digital Effects The S70 supplies the DJ with four different types of DSP digital effects to enhance creativity and performance. Including ECHO, FLANGER, FILTER and SKID. Moreover, DJs can independently adjust effect’s parameters “TIME ”...

  • Page 7: Features & Function

    Single and Continuous play modes Data Search Tracks and folders searching system Advanced cueing with track searching by frame Support VOXOA TUNEBOX software for fast searching massive USB device Onboard fi le and folder browsing ID3 TAG support Cue/Loop Auto Cue function cues track to start of music...
  • Page 8 FEATURES Jog Wheel Touch sensitive JOG WHEEL for scratching Multifunctional JOG WHEEL for search, pitch bend and effects adjustment 3 modes for JOG WHEEL: CDJ, VINYL, AUTO CUE SCRATCH (A. CUE) A. CUE Scratch mode – touch WHEEL return-to-cue function JOG WHEEL control for pitch bending and frame searching DSP Effects 4 superb beat synchronized DSP effects...

  • Page 9: Connections

    CONNECTIONS CAUTION Microphone Headphones 6.3mm 6.3mm...
  • Page 10 CONNECTIONS Main unbalanced BOOTH power amplifier power amplifier Turntable Main balanced power amplifier 6.3mm Type A Type B Microphone USB Storage Device Computer CD/MP3 Player...

  • Page 11: Part Names And Functions

    PART NAMES AND FUNCTIONS PLAYER CONTROL PANEL...
  • Page 12 PART NAMES AND FUNCTIONS 1. Auto Beat Loop control knob Loops can be set automatically without breaking the beat by pressing the AUTO BEAT LOOP control knob. The loop’s number of beats can be changed by turning the AUTO BEAT LOOP control clockwise or counterclockwise. AUTO BEAT LOOP control Turn: set the length of the auto beat loop’s length in units of beats.
  • Page 13 PART NAMES AND FUNCTIONS 7. BMP SYNC button Press this button to automatically synchronize the tempo (BPM) to the other deck based on BPM counter or manual BPM. Caution: 1. BPM SYNC function only active under both decks BPM are displayed. 2.
  • Page 14 PART NAMES AND FUNCTIONS 16. Jog Wheel This touch-sensitive wheel has multiple functions: 1) Frame Search - The JOG WHEEL will act as a frame search control when the track in the pause or cue mode (without vinyl mode engaged), allowing you to set a point. 2) Pitch Bend - During CDJ mode playback, the WHEEL also works as a pitch bend during playback, similar to a “push”...
  • Page 15 PART NAMES AND FUNCTIONS 19. Bank Pads 1,2,3,4 These buttons are used to store either four cue points or four loops. Each Bank Button can store either a loop or a cue point. For Hot Cue the illumination is Orange. For Loops the illumination is Blue. : While the Pad is fl...
  • Page 16 PART NAMES AND FUNCTIONS 25. Filter Effect button This button is used to activate and deactivate the fi lter effect. The fi lter effect tweaks the original sound to add different tonal defi nition. To manually change the beat frequency of the effect, press the X parameter (TIME) button and regulate the frequency mean of the JOG WHEEL (from 0-9990 mSec.).

  • Page 17: Display Section

    PART NAMES AND FUNCTIONS DISPLAY SECTION 33 34 36 37 33. Play indicator The play indicator will glow when the unit is in play mode. 34. Pause indicator The pause indicator will glow when the unit is in pause mode. 35.
  • Page 18 PART NAMES AND FUNCTIONS 40. Memory bucket This indicator serves two functions. The bucket outline details the cue memory status; a full bucket outline indicates the cue memory is full. The six bars in the memory bucket detail the digital buffer. Each bar indicates 2 second.

  • Page 19: Top Panel Mixer Section

    PART NAMES AND FUNCTIONS TOP PANEL MIXER SECTION...
  • Page 20 PART NAMES AND FUNCTIONS 52. Source Input Selector switch These switches are used to select the input source assigned to each channel. Each channel may only be assigned one input source at a time. CH1 selected to PC + CH2 selected to PC – the entire unite works as a MIDI controller or you can set the mixer section as Real Mixer in Utility Menu.
  • Page 21 PART NAMES AND FUNCTIONS 60. Master Volume control This rotary knob is used to control the master output level (main volume). To avoid distorted output try to maintain an overage output signal level +4 dB. : To avoid speaker damage that may be caused by excessive volume, be sure this adjustment CAUTION is always set to zero before turning the unit on.

  • Page 22: Front Panel

    PART NAMES AND FUNCTIONS Front Panel 67. MIC 1 Input jack This jack will accept a standard 1/4” male plug. The volume output level for microphone will be controlled by its own respective MIC 1 LEVEL CONTROL knob 68. MIC 1 Level Control knob This CONTROL knob is used to adjust microphone 1 level.

  • Page 23: Rear Panel

    PART NAMES AND FUNCTIONS REAR PANEL 80 81 84 84 75. AC inlet Use the accessory power cord to connect to an AC power outlet. 76. Power switch Turn this unit power ON/OFF. 77. USB 2 port The port use to connect a USB memory device. : Please turn on the power before you plug USB storage devices.
  • Page 24 PART NAMES AND FUNCTIONS 80. RCA Master Output jacks The RCA jacks send a low current unbalanced output signal. 81. Booth Output jacks This stereo pairs of unbalanced RCA jacks provide a unbalanced line level output with independent front panel BOOTH LEVEL control 82.

  • Page 25: Utility Menu

    1. Playlist Normal / Title/ Artist / Album/ Genre The VOXOA TUNEBOX can generate “Playlist” for USB drives. You can adjust various criteria in order to fi lter track in this setting. You can turn the AUTO BEAT LOOP Control button to select “Normal / Title/ Artist / Album/ Genre” and press the TRACK/FOLDER Search knob again to memorize your setting and exit the utility menu.
  • Page 26 UTILITY MENU 6. EQ Kill To turn on or turn off the 3 Bend EQ push buttons for Kill function On: Turn on the EQ Kill function. Off: To avoid pressing the kill buttons by mistake you can turn off the EQ Kill function. 7.

  • Page 27: Operations

    OPERATIONS Starting and Stopping Playback Starting Playback Press the PLAY/PAUSE button during the pause or cue mode to start playback. Stopping Playback There are two ways to stop playback. Press the PLAY/PAUSE button during playback to pause at that point, or press the CUE button during playback to return to the position at which playback started.
  • Page 28 OPERATIONS How to Adjust the Pitch Pitch Slider With your fi rst deck playing and your second deck cued, start playback in sync with the downbeat of the song playing on the other deck. Quickly adjust the pitch using the PITCH SLIDER to match the tempo of deck one.
  • Page 29 OPERATIONS To Exit the Loop During loop playback, press the RELOOP/EXIT button to exit the loop. When the music reaches the out point, it will play through it instead of looping back to the in point. To replay a seamless loop (Reloop) To replay the loop, press the RELOOP/EXIT button .
  • Page 30 OPERATIONS Setting Hot Loops, Loops must be created using the main loop interface (LOOP IN/OUT button. Once a loop is created, following the setting process. Step 1 : Press the desired pad from the BANK pads (1, 2, 3, 4) at the point you wish to set as a hot-cue point or a loop in that pad.
  • Page 31 OPERATIONS How to Use Effects There are 4 on-board DSP digital effects: ECHO , FLANGER ,FILTER , and SKID .To activates an effect, simply tap the desired Effect button. ECHO Effect - The Echo effect adds an echo to your output signal. FLANGER Effect - The Flanger effect distorts the output signal and creates an effect similar to the frequency phasing in and out of each other.

  • Page 32: Software Installation Instruction

    INSTALLING ASIO DRIVER FOR WINDOWS Before you can use the VOXOA C60, you need to install its ASIO driver fi rst. The ASIO lower latency to under 10 ms. you can confi gure the driver's settings using the Control Panel window. This tool and its options are explained...
  • Page 33 Step 2: Double click “install_virtualdj_le.exe” to execute install and use the software, you have to accept the the installer software license agreement. VOXOA Co. shall not be Step 3: Follow each step in the installation screen for responsible for any problems with your computer and installation.
  • Page 34 SOFTWARE INSTALLATION INSTRUCTION INSTALLING VIRTUALDJ FOR MAC OS MAC SYSTEM REQUIREMENTS INSTALLATION: Minimum system requirements: Step 1: Insert the included installer disc to your -Intel® processor computer. Step 2:Double click “install_virtualdj_le.exe” to execute -Mac OS X v10.5.x the installer -1024x768 resolution Step 3:Follow each step in the installation screen for -CoreAudio compatible soundcard installation.
  • Page 35 V i r t u a l DJ C o nt r o l a n d F un ct i on s No. Items Description Shift + Auto Loop button Active Auto Beat Loop Auto Loop Encoder Adjust Auto Beat Loop size Loop In Set Loop in point Loop Out...

  • Page 36: Virtualdj Control And Functions

    V ir t u al D J C o n t r o l a n d F un ct i o n s No. Items Description Shift + X Time Active Backspin effect Echo Active Echo effect Flanger Active Flanger effect Hold Parameter Active BeatGrid effect Filter...

  • Page 37: Voxoa Tunebox Software

    - DISK SPACE: 100MB of free disk space need. - OS: Microsoft Windows XP SP3, Vista SP2 or later version. Installation : Refer to the following fi gures for installing VOXOA TUNEBOX on your computer. Step 1 : Execute the VOXOA TUNEBOX software.
  • Page 38 The VOXOA TUNEBOX can scan all of music fi les in your USB hard driver and then create database fi les to locate the fi les in your music library. This makes the S70 read music fi les from USB hard drive much quicker and easier.
  • Page 39 Step3: Turn the AUTO BEAT LOOP Control button; or hold the AUTO BEAT LOOP Control button and turn JOG WHEEL to select the track you like. The main reason for user failed to run VOXOA TUNEBOX in Windows Vista. 1. User fail to run VOXOA TUNEBOX in Windows 2.

  • Page 40: Midi Map (Hex)

    MIDI MAP ( HEX ) CENTER DECK A DECK B DECK FUNCTION Type FUNCTION FUNCTION FUNCTION ACTION CODE (SHIFT) NOTE CODE (SHIFT) NOTE NOTE CODE (SHIFT) Active Sampler Active SW/ENC 05/17(44/56) 05/27(44/66) 7FH:ON 00H:OFF Effect Active Load Track SW/ENC 01/16(40/55) 01/26(40/65) 7FH:ON 00H:OFF SW/LED...

  • Page 41: Time

    MIDI MAP ( HEX ) CENTER DECK A DECK B DECK FUNCTION Type FUNCTION FUNCTION FUNCTION ACTION CODE (SHIFT) NOTE CODE (SHIFT) NOTE NOTE CODE (SHIFT) 16(55) 16(55) 7FH:ON 00H:OFF 17(56) 17(56) 7FH:ON 00H:OFF A.CUE SW/LED 18/18(57) 18/18(57) 7FH:ON 00H:OFF SCRATCH VINYL SW/LED...
  • Page 42 MIDI MAP ( HEX ) CENTER DECK A DECK B DECK FUNCTION Type FUNCTION FUNCTION FUNCTION ACTION CODE SHIFT) NOTE CODE (SHIFT) NOTE NOTE CODE (SHIFT) 7FH:ON 00H:OFF 7FH:ON 00H:OFF 7FH:ON 00H:OFF LEVEL LEVEL LED 00H~7FH* METER LED SHIFT SW/LED 2C/2C(6B) 7FH:ON 00H:OFF MASTER...
  • Page 43 MIDI MAP ( HEX ) CC-ABSOLUTE (VR, LEVEL LED TYPE) Control Change messages are sent with status 0xBn, where n is the channel, for the specifi ed CC controller. Thus the controller MIDI ID is indicated with the channel along with the CC number. The value from 0x00 to 0x7F, directly related to the location of the controller.

  • Page 44: Specifications

    SPECIFICATIONS 1. GENERAL SECTION POWER : AC100-240V~, 50/60Hz, 21WATTS DIMENSION : 420 (W) X 298.8 (D) X 89 (H) mm WEIGHT : 4.42 kg 420 mm 2. INPUT/OUTPUT IMPEDANCE & SENSITIVITY : (EQ FLAT, MAXIMUM GAIN, LOAD=100K OHM) INPUT IMPEDANCE AND REFERENCE INPUT LEVEL LINE: 47K OHM /-14dBV (200mV) +/-0.1dB PHONO:...
  • Page 45 SPECIFICATIONS 6. MAXIMUM OUTPUT: (1KHz, THD=1%, EQ FLAT, MAXIMUM GAIN, LOAD=100K OHM) MASTER: MORE THAN + LOAD=100K OHM MORE THAN +4dBV (1.6V) LOAD=32 OHM PHONES: 7. S/N RATIO: (MAXIMUM GAIN, EQ FLAT, W/20KHz LPF, A-WEIGHTED) LINE: MORE THAN 73dB PHONO: MOTE THAN 73dB MIC: MORE THAN 63dB...
  • Page 46 SPECIFICATIONS 14. USB SLAVE PLAYER SECTION: (SIGNAL FORMAT: MP3, 128KBPS) • OUTPUT LEVEL: 0dBV +/-2dB (TCD782 TRK16, GAIN MAXIMUM, EQ FLAT) • FREQUENCY RESPONSE: 17-16KHz +/-2dB (TCD781 TRK1,4,16, SET GAIN TO 0dBV OUT, EQ FLAT) • THD+N: LESS THAN 0.08% (TCD782 TRK16, GAIN MAXIMUM, EQ FLAT, W/20KHz LPF, A-WEIGHTED) •...
  • Page 47 VERSION 1.0 Printed in China...
