MV-ARM-S INSTALLATION INSTRUCTIONS
Country of origin: China Contact number: 866-395-0370 Warranty: 5 years
Imp ortant N otes
•
The Articulating Wall Mount supports display mounting from 26" to 40", VESA 100/200 x 100/200 depending
on the TV mounting plate attached (provided separately) and supports a maximum of 80 lbs. (36kg).
•
Installation will require a minimum of two people. Under no circumstances should this be
attempted by one person.
•
We highly recommend this product be installed by a qualified professional person.
•
Please do not begin installation until you have thoroughly read and understood these instructions.
•
Ensure the wall you plan to use will safely support 4 times the combined weight of the Articulating
Wall Mount and your chosen display.
•
Under no circumstances should this product be mounted to metal studs.
•
The manufacturer does not accept responsibility for incorrect installation.
Component Checklist
Wall Arm Assembly(x1)
TOOLS REQUIRED:
Power Drill
5/32" or 1/3" Drill Bit
Phillips Head Screw Driver
Spirit Level
Use the wall plate as the template, then mark the wall plate holes onto the wall.
A
Mounting the Wall Plate
Flange Bolt (x3)
Adapter Panel(x1)
Timber Stud Wall
• Tighten screws so that wall plate is firmly attached
but do not over tighten. Over tightening can damage
5/32" holes
the screws, greatly reducing their holding power.
• Never tighten in excess of 80" / lb. (9N.M.)
• Make sure that mouting screws are anchored into
the center of the studs. The use of an "edge to edge"
stud finder is highly recommended.
1
Hardware
M4x20mm Phillips
M4x10mm Phillips
Head Screw(x4)
Head Screw(x4)
M6x12mm Phillips
M5x20mm Phillips
Head Screw(x4)
Head Screw(x4)
M6x30mm Phillips
M8x12mm Hex
Head Screw(x4)
Head Screw(x4)
washer
Alligator anchor(x3)
(x4)
WARNING
M5x16mm Phillips
Head Screw(x4)
M6x20mm Phillips
Head Screw(x4)
Spacer(x4)
Flange Bolt (x3)
Allen Key (x1)
Advertisement
Related Manuals for Mustang MV-ARM-S
Summary of Contents for Mustang MV-ARM-S

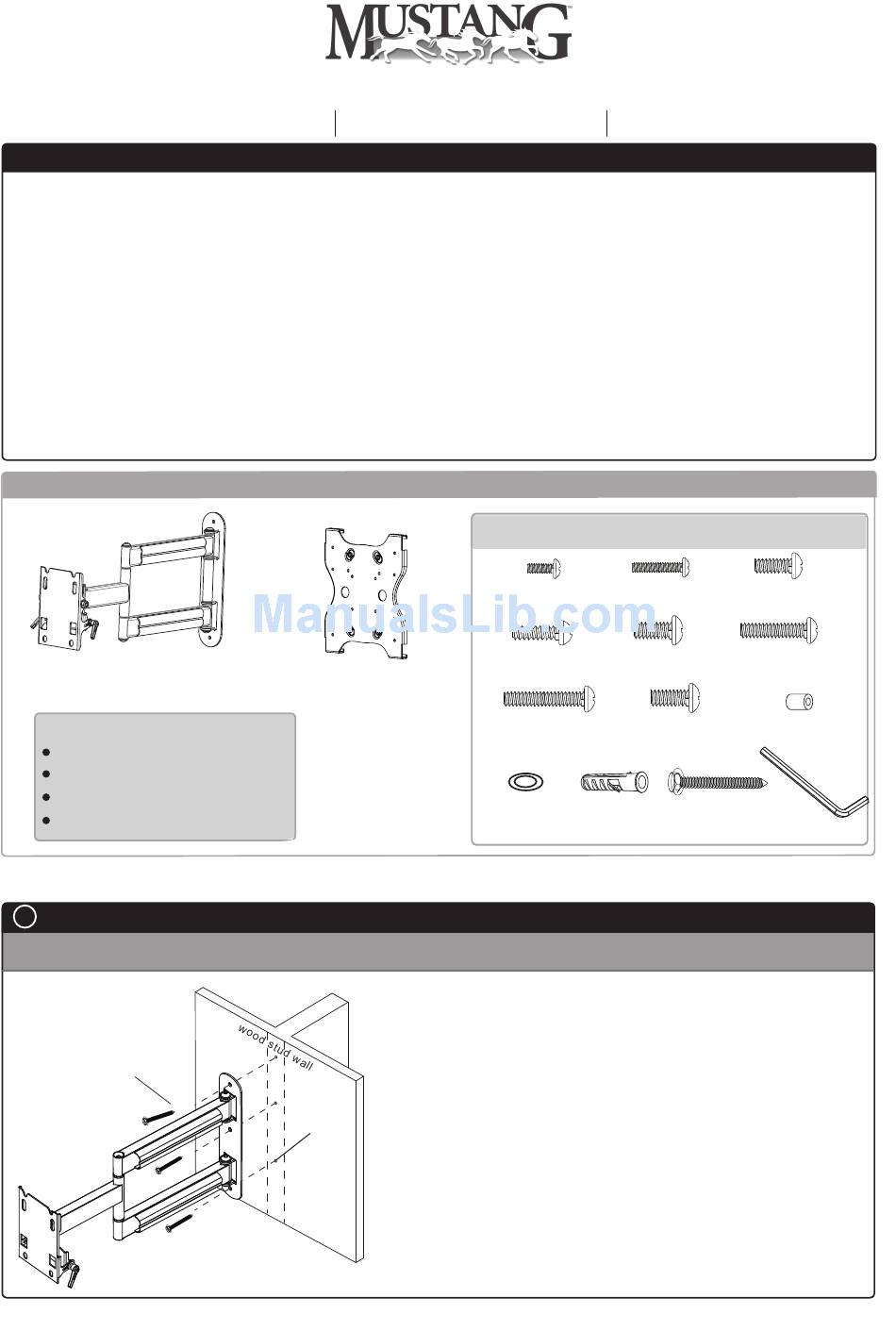

- Page 1 MV-ARM-S INSTALLATION INSTRUCTIONS Country of origin: China Contact number: 866-395-0370 Warranty: 5 years Imp ortant N otes • The Articulating Wall Mount supports display mounting from 26” to 40”, VESA 100/200 x 100/200 depending on the TV mounting plate attached (provided separately) and supports a maximum of 80 lbs. (36kg).
- Page 2 Installation to Solid Concrete and Cinder Block WARNING • When installing wall arm assembly on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 3 Installing display Insert two M8x12mm (O) screws and two 8mm metal washers (S) into top two holes of Adapter Plate. Leave approximately 1/4” of exposed thread (Do NOT tighten fully). Lift the display and hook it over the mounting head by lowering the exposed portion of the top screws into the open key slots of Wall Arm Assembly mounting head.
