Mustang MV-ARM-XS1 Installation Instructions

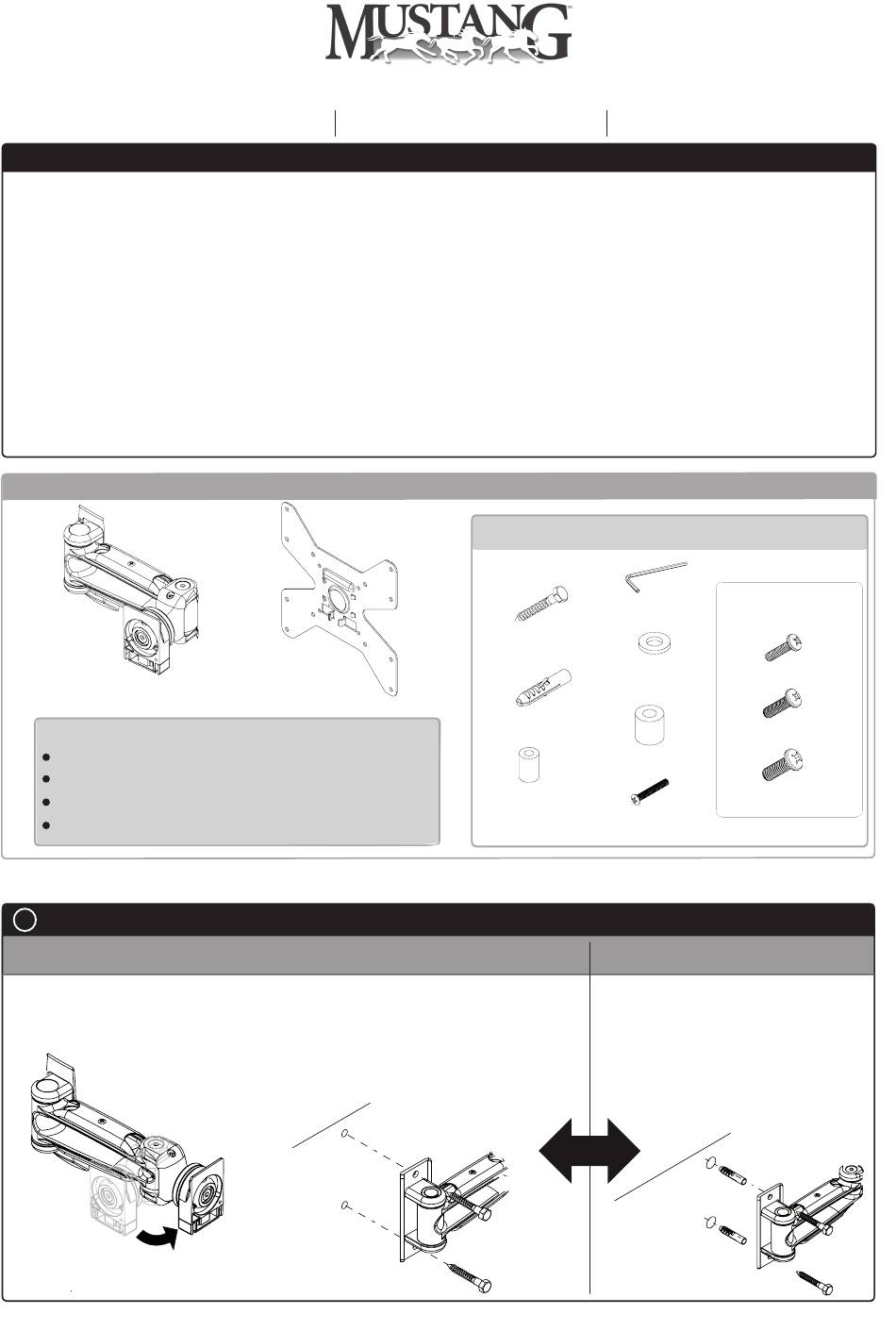

MV-ARM-XS1 INSTALLATION INSTRUCTIONS
Country of origin: China Contact number: 866-395-0370 Warranty: 5 years
Imp ortant N otes
•
The Articulating Wall Mount supports display mounting from 10" to 32", VESA 75 x 75mm, 100 x 100mm,
and 200 x 200mm, and
•
Installation will require a minimum of two people. Under no circumstances should this be
attempted by one person.
•
We highly recommend this product be installed by a qualified professional person.
•
Please do not begin installation until you have thoroughly read and understood these instructions.
•
Ensure the wall you plan to use will safely support 4 times the combined weight of the Articulating
Wall Mount and your chosen display.
•
Under no circumstances should this product be mounted to metal studs.
•
The manufacturer does not accept responsibility for incorrect installation.

Component Checklist

Wall Arm Assembly(x1)

TOOLS REQUIRED:

Power Drill • 0.25" (6mm) Drill Bit
0.4" (10mm) Masonry Drill Bit
Phillips Head Screw Driver
0.5" (13mm) Socket Wrench or Shifter
Use the wall plate as the template, then mark the wall plate holes onto the wall.

Attaching Arm to the Wall

A
Remove the the mount from
the packaging and open fully.
a maximum of 55 lbs. (25kg).
VESA Plate
Timber Stud Wall
- Drill two 6mm (0.25") diameter
holes, 50mm (2") deep.
- Secure the Mounting Plate to the
wall using the Coach Bolts supplied.
Hardware
3mm Allen Key
Coach Bolt (x2)
M4/M5 Washers
Concrete Anchor (x2)
M6/8 Spacer (x4)
M4/5 Spacer (x4)
Security Screw (x1)
- Drill two 10mm (0.4") diameter
holes, 50mm (2") deep.
- Secure the Mounting Plate to the
wall using the Coach Bolts and
Concrete Anchors supplied.
OR
1
Display Mounting
Screws
M4x16/25mm (x4 each)
(x4 each)
M5x16/25mm (x4 each)
M6x16/30mm (x4 each)
Masonry Wall
