Download
Share
Print this page
  1. Manuals
  2. Brands
  3. KWE Manuals
  4. Temperature Controller
  5. Versatronik COMO OT
  6. Quick start-up

KWE Versatronik COMO OT Quick Start-Up

Opentherm room temperature controller
Hide thumbs Also See for Versatronik COMO OT:
1
2
3
4

Advertisement

Quick Links

Download this manual See also: Operating Manual
®
Versatronik
COMO OT
OpenTherm
Room Temperature Controller
Quick Start-up Assistant
7
:
:
6
5
24
4
18
6
3
2
12
F1
F2
DB
1
7
:
:
6
5
24
4
18
6
3
2
12
F1
F2
DB
1
A
A
B
1
C
1

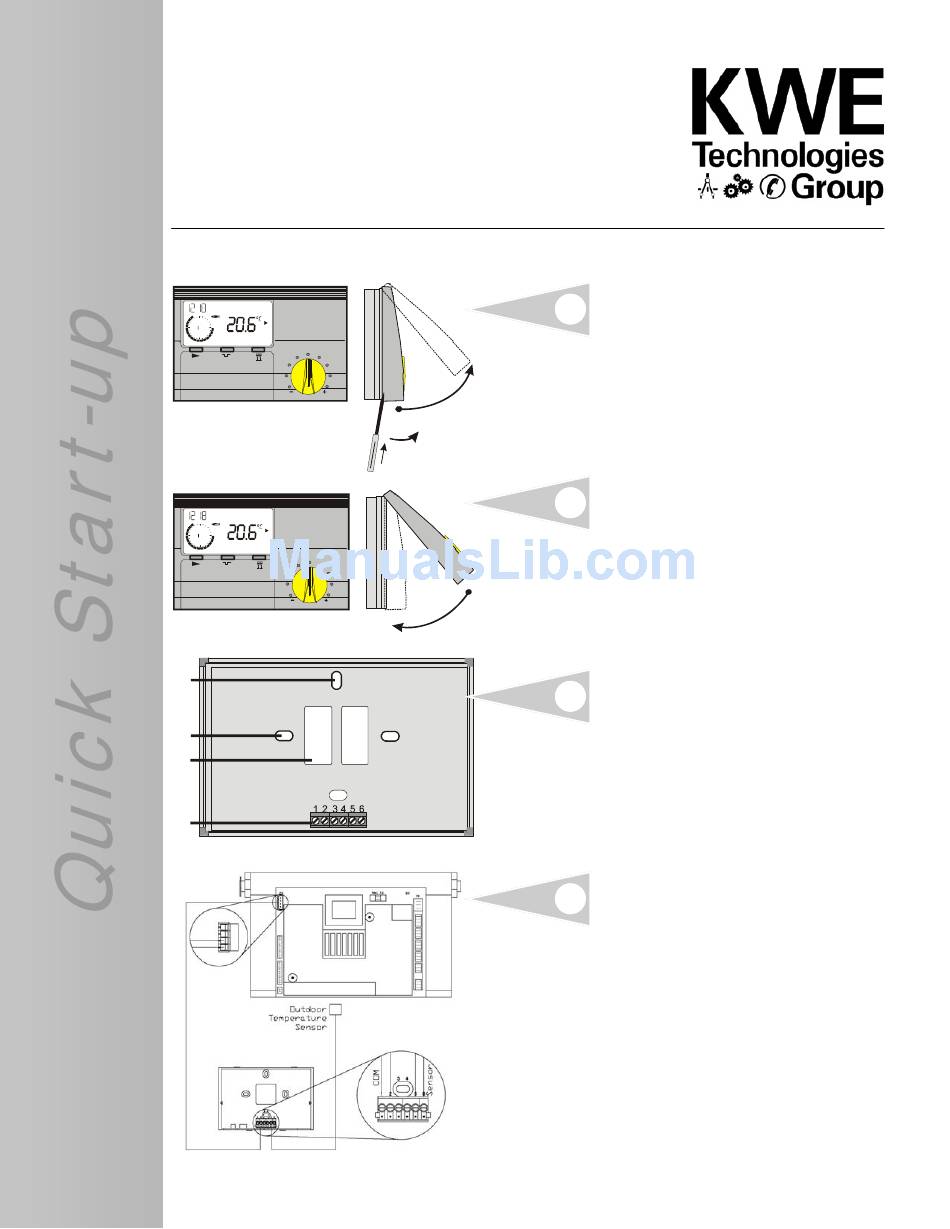

Separate Como OT sub-base from user
interface with use of flat blade
screwdriver
3.
2.
1.
2
Tilt user interface from sub-base by
hinging from the top.
3
Mount sub-base at desired location by
utilizing field supplied fasteners through
mounting holes
6
4
Make wiring connections:
1. Sub-base OT communication terminals
1 and 2
2. Sub-base Outdoor Temperature
Sensor to terminals 5 and 6
3. Connect OT communication wires to
Viessmann Vitodens X3.3 and X3.4.
Tilt front of control down, remove rear
cover to reveal X3 plug.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Versatronik COMO OT and is the answer not in the manual?

Questions and answers

Related Manuals for KWE Versatronik COMO OT

Summary of Contents for KWE Versatronik COMO OT

  • Page 1 ® Versatronik COMO OT OpenTherm Room Temperature Controller Quick Start-up Assistant Separate Como OT sub-base from user interface with use of flat blade screwdriver Tilt user interface from sub-base by hinging from the top. Mount sub-base at desired location by utilizing field supplied fasteners through mounting holes Make wiring connections:...
  • Page 2 Versatronik Como OT Quick Start-up Menu Navigation Ä Programming key a) Select a value level b) Select a value to be changed c) Saving the new value Plus key (Search for or change value) Minus key (Search for or change value)
  • Page 3 Versatronik Como OT Quick Start-up Typical Baseline Settings EXPERT Settings Settings USER Settings Setting HEATSLOPE T-ROOM DES1 20C/68F ADAPTION T-ROOM DES2 20C/68F ROOM-INFL1 —— T-ROOM DES3 20C/68F l-CONTROL T-REDUCED 20C/68F HEAT UP OPTI T-ABSENCE 20C/68F MAX OPT-TIME 0-3 => 2:00h...
  • Page 4 Versatronik Como OT Quick Start-up Display Overview A Current time B Set room temperature (represented in degrees Celsius) C Day (1=Monday, 2=Tuesday, ..., =Sunday) (as shown, 3 = Wednesday) D Bus symbol (if this symbol does not appear, check the data cable to the boiler)
