Summary of Contents for MUSIC HALL a15.3
-

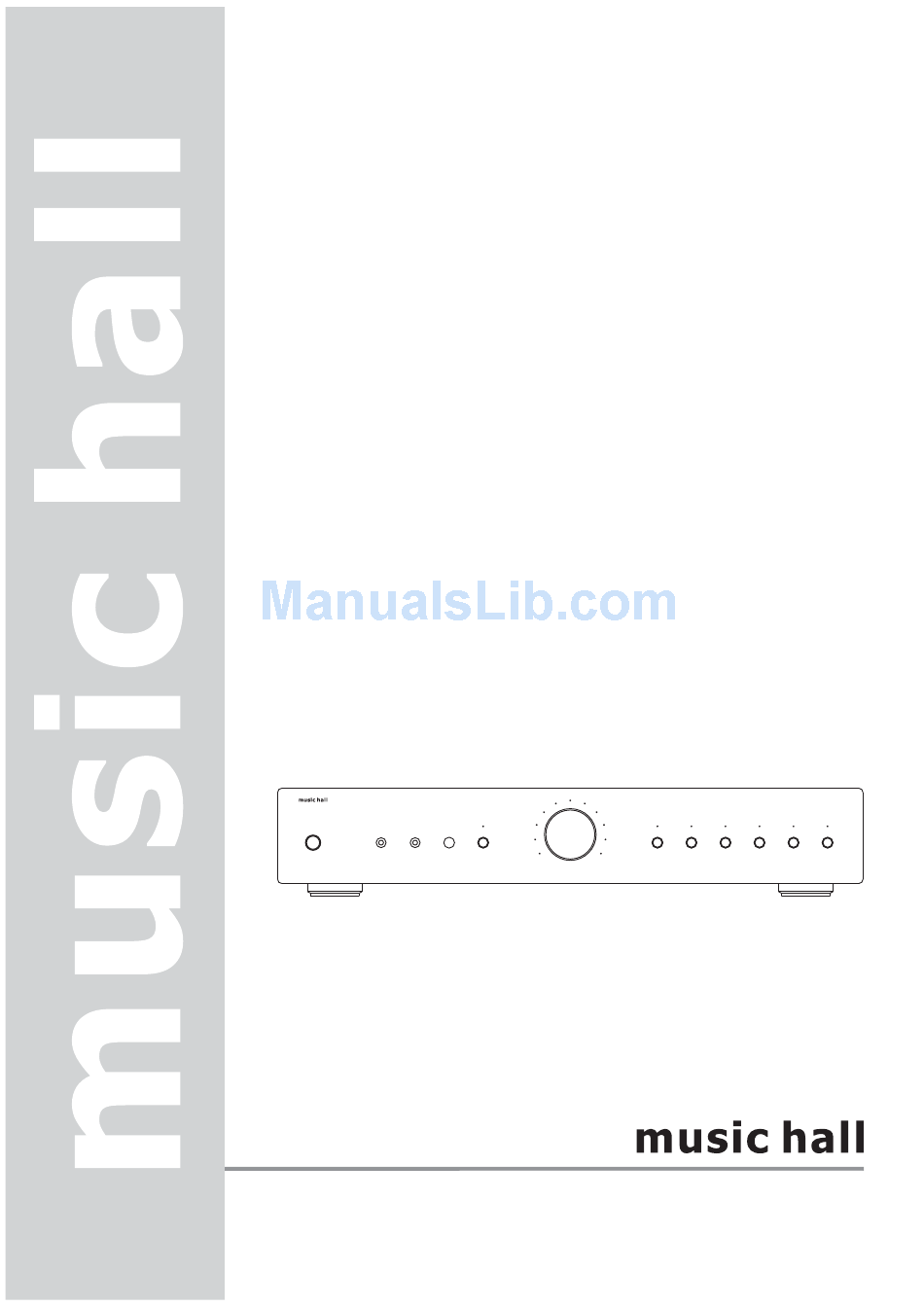

Page 1: Integrated Amplifier

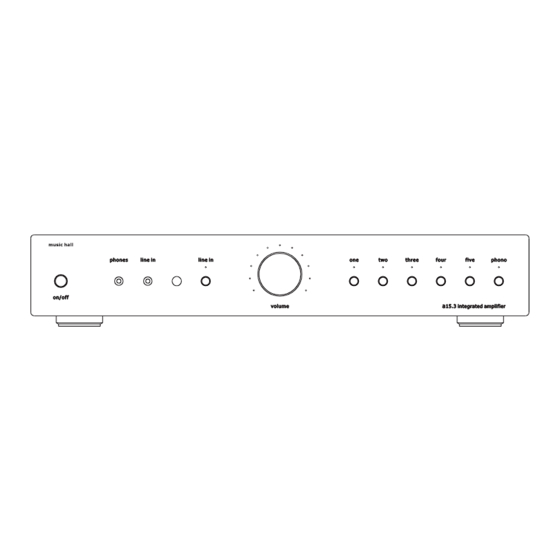

15.3 15.3 integrated amplifier ， user s manual phones line in line in three four five phono on/off volume 15.3 integrated amplifier 15.3 integrated amplifier http://www.musichallaudio.com... -
Page 3: Congratulations On Your Purchase
You have selected a state-of-the-art integrated amplifier. Each component chosen for assembly in the construction of the Music Hall a15.3 was selected to provide you with superior performance and the highest level of sound reproduction available today. We know of no integrated amplifier that costs as much to produce that sells for so little. - Page 4 If the unit is to be left unused for a long period of time, the power cord should be unplugged from the wall outlet. 12. Damage Requiring Service Stop using the unit immediately and have it inspected by an authorized Music Hall service center whenever: 1. The power supply cord or plug has been damaged.
-
Page 5: Getting Started
Make sure that the shelf or cabinet can support the weight. Ensure that there is adequate ventilation around all sides of the unit. Avoid placing the a15.3 where it may be subject to excessive heat, such as near a heat register. Do not place anything on top of it. For best performance, avoid placing the a15.3 where it may be subject to vibration, such as near a... -
Page 6: Back Panel And Connections
15.3 integrated amplifier 15.3 integrated amplifier Connecting Source Components to the a15.3 Left Speaker Right Speaker SPEAKER OUT SPEAKER OUT AC IN PHONO FIVE FOUR THREE PRE OUT ~115V ~230V MODEL: 15.3 15.3 SERIAL NO.: FUSE: T3.15AL/250V Designed and developed in the USA... - Page 7 Pay careful attention to match the positive (red or +) connector on your speaker to the positive (+) terminal on the a15.3. Likewise, match the negative (black or -) speaker connector to the negative (black or -) terminal on back of the a15.3. This will insure your loudspeakers are playing in phase.
- Page 8 15.3 integrated amplifier 15.3 integrated amplifier Remote Control Functions The supplied remote controls both the a15.3 integrated and the ir15.3 c-dac15.3 dac/cd player. The a15.3 functions are: OPEN/ C-DAC CLOSE INPUT INPUT MUTING mutes the integrated amplifiers output INPUT to select an input source, toggles through inputs...
-
Page 9: Technical Specification
15.3 integrated amplifier 15.3 integrated amplifier Technical Specification Input sensitivity RCA: 330mV Phono (MM): 1mV Power output 50W@8ohm 75W@4ohm PRE OUT 660mV >90dB THD+N <0.02%(20Hz-20KHz) Frequency response RCA: 20Hz-20KHz(-0.5dB) PHONO: RIAA compliant Analog inputs 6 x line level, 1 x phono Physical Dimensions w16.9 x d14.3 x h3.1 in. - Page 10 15.3 integrated amplifier 15.3 integrated amplifier Troubleshooting No LED indicating Volume or Source Check: · that the power switch is on · that the power cord is connected securely · that there is power at the wall outlet · the fuses after unplugging the power cord No Sound Check: ·...
-
Page 11: Warranty
15.3 integrated amplifier Guarantee This entitles you to have the Music Hall a15.3 repaired or replaced, at our discretion, free of charge for one year after purchase, at any authorized Music Hall dealer, provided the unit was purchased from an authorized dealer. Your original sales receipt is used as proof of purchase date. - Page 12 For further details contact Music Hall LLC: 108 Station Road Great Neck, NY 11023 T: 516.487.3663 F: 516.773.3891 http://www.musichallaudio.com...
