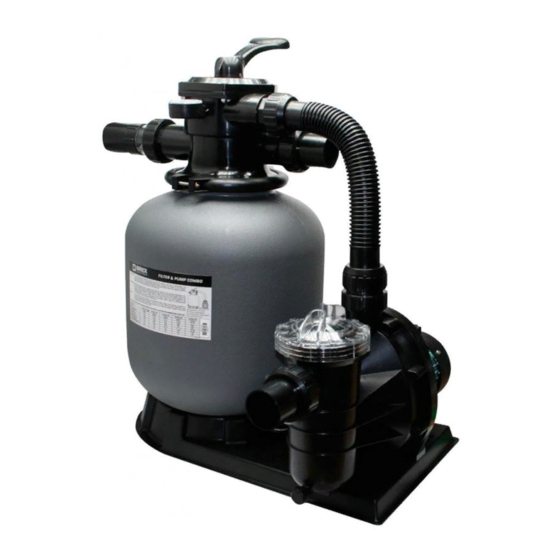

- Page 1 COMPLETE SAND FILTRATION WITH SIX-WAY VALVE AND PUMP ON BASE PLATE (Models: FSP350, FSP450, FSP500, FSP650) INSTALLATION USER GUIDE Please read the user manual...
-
Page 2: Table Of Contents
Content Function ............3 Installation ............3 III. Main proportions ..........4 Installation/starting up the fi ltration ....4 List of fi ltration components ......5 List of six-way valve components ....6 VII. List of pump components .........7 VIII. Functions of six-way valve and meaning of its positions ......8 Thank you for choosing our product and for trusting our company. -
Page 3: Function
I. Function The fi lter uses a special fi ltration sand to capture the dirt components from the pool water. A fi lter container, operating as a permanent dirt collector, is fi lled with the fi ltration sand. When the regulating valve remains in the position “FILTER“, the pool water containing the dirt, sucked through the system of hoses, is auto- matically forced in the regulating valve with patented fi... -
Page 4: Main Proportions
Voltage Model discharge (mm) (mm) (mm) (kg) (kW) /hour) FSP350 0,20 FSP450 0,50 FSP500 0,75 FSP650 1,00 IV. Installation/starting up the fi ltration 1. Make sure there is a suffi cient amount of the fi ltration sand in the fi lter container and that all necessary connections have been executed and ensured. -
Page 5: List Of Fi Ltration Components
3. Irrigate the pump and turn it on according the instructions (make sure that all suction and reversing pipes are opened), to fi ll the fi ltration container with water. When water is running out through the waste hose, leave the pump in operation at least for one minute. The primary sand rinse is recommended due to the removing of the dirt and fi... -
Page 6: List Of Six-Way Valve Components
VI. List of Six-Way Valve Components Item Description Lever Fulcrum Board Screw with a nut, cover Cover set-up O-ring cover Board Spring O-ring of the revolving wheel Revolving wheel Filtration bag - spider Body-diffuser O-ring of the end piece Adapting pipe of the end piece O-ring of the end piece End piece adapter End piece nut... -
Page 7: List Of Pump Components
VII. List of Pump Components Item Description Capillary fi lter lid O-ring under the capillary fi lter lid Capillary fi lter Pump body Connecting screw coupling Drain screw with O-ring O-ring with diffuser Diffuser Impeller Screw M 8x16 Complete shaft seal Pump body O-ring Flange between pump and motor Screw M 6x30... -
Page 8: Functions Of Six-Way Valve And Meaning Of Its Positions
VIII. Functions of Six-Way Valve and Meaning of its Positions Position of the valve Functions FILTRATION Standard fi ltration and suction. RINSE Cleaning the fi ltration by the inverse fl ow. FILTRATION PROCESS (BACKWASH) is used to rinse out the dirt from the fi ltration after the rinse. WASTE Filter bypass is used for the drain suction or lowering the water level. - Page 9 WARNING • Turn the pump off before changing the position of the six-way valve • Do never operate this installation without water. • Do never connect the filter directly to the water source from the water supply system. Water pressure from the water supply system might be much higher that the maximum pressure of the filter.
