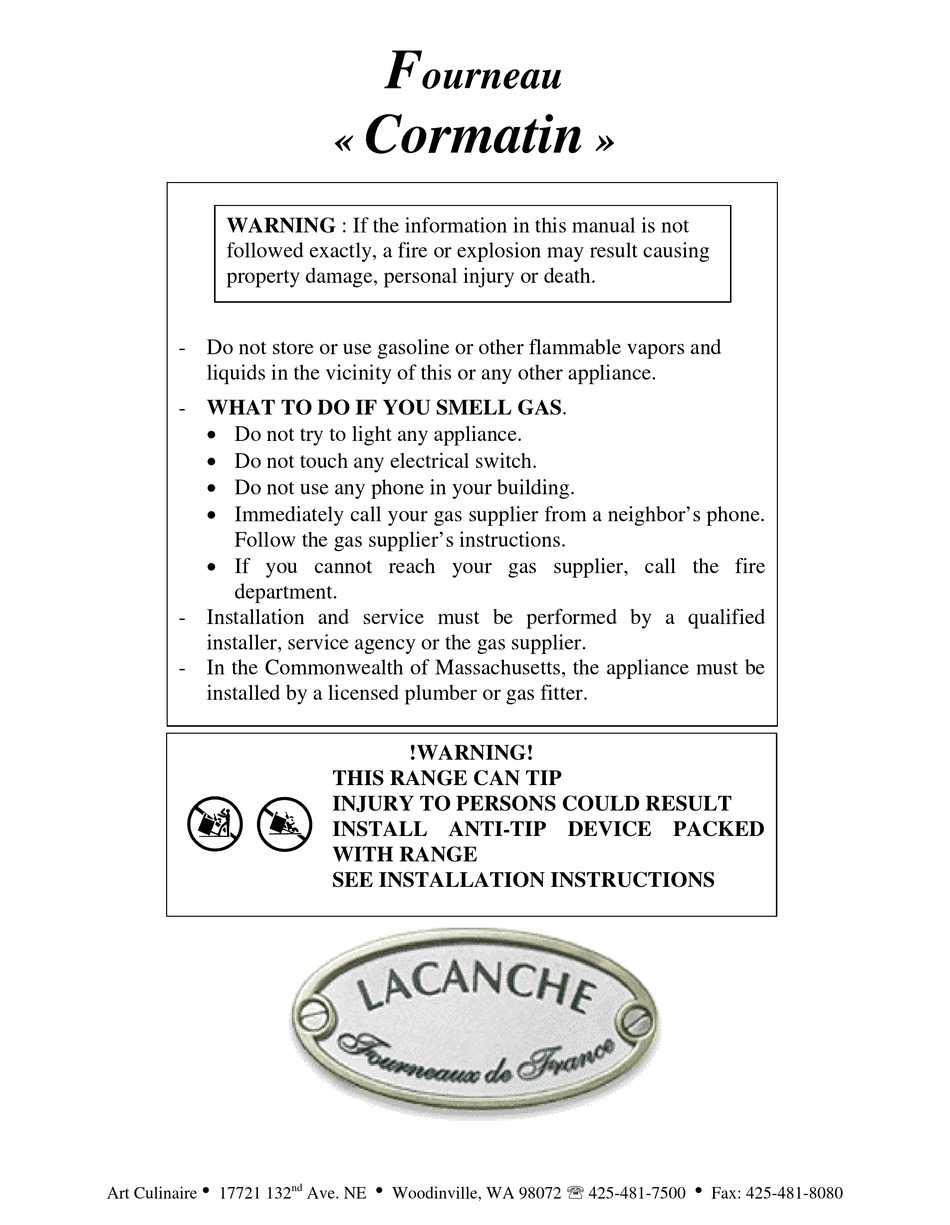

Lacanche Cormatin Installer Manual

Hide thumbs Also See for Cormatin:

Advertisement

Quick Links

WARNING : If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS.
 Do not try to light any appliance.
 Do not touch any electrical switch.
 Do not use any phone in your building.
 Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
 If you cannot reach your gas supplier, call the fire
department.
- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
- In the Commonwealth of Massachusetts, the appliance must be
installed by a licensed plumber or gas fitter.
Art Culinaire 17721 132
F
ourneau
Cormatin
«
!WARNING!
THIS RANGE CAN TIP
INJURY TO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
SEE INSTALLATION INSTRUCTIONS
Ave. NE  Woodinville, WA 98072  425-481-7500  Fax: 425-481-8080
nd
»

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cormatin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lacanche Cormatin

  • Page 1 Cormatin « » WARNING : If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2: Technical Data

    TECHNICAL DATA CORMATIN Back space vent 800 mm-31 ’’ 34 mm 727.5 mm-28 ’’ ’’ 700 mm - 27 ’’ 650 mm-25 ’’ Fig. 1 768 mm 914 mm 671 mm-26 ’’ 36’’ 708 mm-27 ’’ 1065 mm ’’ 399 mm 940 mm ’’...
  • Page 3 TECHNICAL DATA CORMATIN Static electric oven (option) : Same dimensions as gas oven. Thermostatically controlled roof and base heating elements, safety cut-out by safety thermostat. Rating : 3400 W – Power supply : 240 Volts 60Hz. Ventilated electric oven (option) Heating provided by two circular heating elements each surrounding a reaction-type fan.
  • Page 4 TECHNICAL DATA CORMATIN Page 4 of 40...
  • Page 5: Installer's Manual

    Cormatin « » INSTALLER'S MANUAL Appliances must be installed in a workmanlike manner in accordance with the instructions in this manual and locally applicable regulations. In the Commonwealth of Massachusetts, the appliance must be installed by a licensed plumber or gas fitter.
  • Page 6 INSTALLER’S MANUAL CORMATIN  Cabinet preparation This diagram depicts the actual location of gas and electrical connections on the range. Place gas stub-out or electrical receptacle outside of this area in accordance with local regulations. Electrical Gas connection Fig. 4...
  • Page 7 INSTALLER’S MANUAL CORMATIN  Must be installed under an exhaust hood. In the Commonwealth of Massachusetts, the exhaust hood must be equipped with an "interlock" system. Check local codes.  Do not install this unit near combustible walls, partitions, IMPORTANT...
  • Page 8 INSTALLER’S MANUAL CORMATIN Unscrew the screws C near the burners openings (Figures 7 and 8). Remove the pan supports and burners, pull and raise the top after having loosened the 2 screws D (Figures 9a, 9b, and 10), wedge the cooking surface.
  • Page 9 INSTALLER’S MANUAL CORMATIN Fig. 13 L.P. propane Natural gas In case of use with a gas other than that for which the Clé de 12 appliance was initially set up, it is crucial to replace the Wrench 12 ( orifices and modify the adjustments as defined below.
  • Page 10 INSTALLER’S MANUAL CORMATIN Table 3 Table 4 Burners Burners Pressure Ø Pressure Opening in mm/ inches 6" WC 0.90 1.30 1.45 1.70 6" WC 2.5 / 2.5 / Natural gas Natural gas L.P. propane 10" WC 0.65 0.90 1.05 1.20 L.P.
  • Page 11 INSTALLER’S MANUAL CORMATIN   Fig. 22 Fig. 21  Adjustment of oven primary airflow : Remove the base, loosen the screw L that secures the air ring and then adjust (Table 6, Figure 22). Table 6 Opening in mm / inches...
  • Page 12 INSTALLER’S MANUAL CORMATIN   ALL WORK ON OR REPAIR OF AN APPLIANCE ELECTRICITY MUST BE CARRIED OUT BY A QUALIFIED INSTALLER.  THE APPLIANCE WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE IMPORTANT WITH THE LOCAL CODES OR The National Electrical Code, ANSI/NFPA 70-1996 or latest edition.
  • Page 13 INSTALLER’S MANUAL CORMATIN Fig. 28 Fig. 27 BACK SPACER VENT FITTING : It is MANDATORY to mount the back spacer vent R supplied with the Fig. 29 appliance (or equivalent) to the wall, this allows for ventilation and reduces the risk of heat damage.
  • Page 14 INSTALLER’S MANUAL CORMATIN Fig 33 331.5 mm 331.5 mm " " 93 mm " 772 mm " Fig. 32 30 mm " 30 mm " 206 mm " SERVICE INSTRUCTIONS : - Lubricating gas valve. If the gas taps tends to stick slightly, you may follow this procedure : ...
  • Page 15 INSTALLER’S MANUAL CORMATIN GAS CIRCUIT DIAGRAM Designation Part number Burner cap 1.5 kW 65.330005 Burner cap 3.0 kW 65.330006 Burner cap 4.0 kW 65.330007 Burner cap 5.0 kW 65.330008 Burner bowl 1.5 kW 65.640003 Burner bowl 3.0 kW 65.640004 Burner bowl 4.0 kW 65.640005...
  • Page 16 INSTALLER’S MANUAL CORMATIN 65.330005 65.330008 65.330006 65.226006 1.5 kW = 65.064007 3.0 kW = 65.064007 5.0 kW = 65.064007 65.080005 65.103023 65.033018 65.103021 65.224004 65. 430007 65.103021 65.222002 65.224005 80.903277 65.226003 65.103022 Page 16 of 40 65.222003 65.224004...
  • Page 17 INSTALLER’S MANUAL CORMATIN 65.330006 65.226006 65.330005 65.330007 1.5 kW = 65.064007 3.0 kW = 65.064007 4.0 kW = 65.064007 65.080005 65.033018 65.103023 65.103021 65.224004 65. 430007 65.103021 65.222002 65.224005 88.265400 65.226003 65.103022 65.222003 65.224004 Page 17 of 40...
  • Page 18: Electric Circuit Diagrams

    INSTALLER’S MANUAL CORMATIN ELECTRIC CIRCUIT DIAGRAMS LG 731 G LG 741 G LG 731 E LG 731 CT LG 731 CT + grill LG 741 E LG 741 CT LG 741 CT + grill Item n° Designation Part number Three pole limiting 65.39942...
  • Page 19 INSTALLER’S MANUAL CORMATIN 240 V 60 Hz 120 V 60 Hz Reig S1 (oven) 6548 UL / LG-LCF 731 G Réf. S001009 – 00 Page 19 of 40...
  • Page 20 INSTALLER’S MANUAL CORMATIN 240 V 60 Hz 120 V 60 Hz Reig S1 (oven) 6548 UL / LG 741 G Réf. S001008 – 00 Page 20 of 40...
  • Page 21 INSTALLER’S MANUAL CORMATIN 240 V 60 Hz 120 V 60 Hz UL / LG 741 E Réf. S001010 – 00 N. B : For the model LG/LCF 731 E, the ignition connector which is not used is connected to earth.
  • Page 22 INSTALLER’S MANUAL CORMATIN 240 V 60 Hz 120 V 60 Hz UL / LG 741 CT Réf. S001011 – 00 N. B : For the model LG/LCF 731 CT, the ignition connector which is not used is connected to earth.
  • Page 23 INSTALLER’S MANUAL CORMATIN 240 V 60 Hz 120 V 60 Hz UL / LG 741 CT + Grill Réf. S001012 – 00 N. B : For the model LG/LCF 731 CT + grill, the ignition connector which is not used is connected to earth.
  • Page 24 (This page intentionally left blank) Page 24 of 40...
