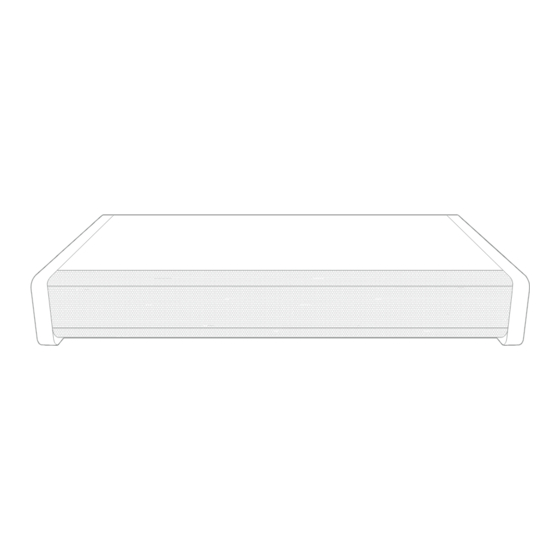

BASE
MODEL: BASE
4.2 CHANNEL100W 6 SPEAKER SOUND SYSTEM

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BASE and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans BASE

Summary of Contents for Goodmans BASE

  • Page 1: User Manual

    BASE MODEL: BASE 4.2 CHANNEL100W 6 SPEAKER SOUND SYSTEM USER MANUAL...

  • Page 2: Table Of Contents

    Operation 3.1 LED indicator 3.2 Remote control Quick Setup 4.1 Setting up 4.2 Connect Base to your TV 4.3 Put your TV onto Base 4.4 Power on Base 4.5 Choose the source type 4.6 Mute your TV output Bluetooth connectivity Set the source type to bluetooth 5.2 Connect to your bluetooth enabled device...

  • Page 3: In The Box

    • Quick Start Guide • Guarantee Booklet If any of these items are missing contact customer support. Visit: www.goodmans.co.uk/support. Mains Power Your Base sound system requires a mains supply of 90-265V 50~60Hz. Please ensure that your mains supply is compatible before use. BASE...

  • Page 4: Front View

    Press to increase the volume. button Press to decrease the volume. Rear View AC power input Used to connect Base to the mains power supply. Optical digital input Connect to television’s opitical digital output. Coaxial digital input Connect to television’s coaxial digital output.

  • Page 5: Led Indicator

    Operation LED Indicator The LED indicator on the front of Base helps you to identify the status and source mode. Red: power off White: optical input Yellow: coaxial input Green: aux input Magenta: line input Blue: bluetooth input Remote Control Mute Short press: mute or unmute the sound.

  • Page 6: Quick Setup

    2. Place Base where you place your TV. Connect Base to your TV Base offers four types of audio connectivity for you to choose. Only one source type is needed for connection. 1. Plug an audio cable into an available connection on your TV.
  • Page 7 If... 1. If the TV base is too large to fit the top of Base, please place Base in another location such as an open shelf under the TV, or mount your TV above Base.

  • Page 8: Choose The Source Type

    Choose the source type 1. Use the remote control, or press on the right hand of Base, to select and set the input source. 2. Identify the source mode using the LED indicator. Mute your TV output Please refer to your TV owner’s guide for help turning off the internal speakers of your TV.
  • Page 9 1. Go to the bluetooth setting on your smartphone, tablet, computer or other devices. 2. Search and select ‘Base’ to connect. If your phone is NFC compatible, touch the NFC zone with your phone to pair. 3. Enter ‘0000’ if the device asks for a passcode.

  • Page 10: Troubleshooting

    Problem What to do 1. Make sure Base is powered on. 2. Check the volume control of Base is not at a minimum. 3. Check Base is not set to mute. 4. Make sure Base is set to the correct source that There is no sound from my Base corresponds to the connected input source.

  • Page 11: Technical Specification

    Drivers: 230Hz-15KHz Frequency Range Subwoofers: 80Hz-1KHz Max Power Consumption Dimensions 600mm (W) x 320mm (D) x 100mm (H) Customer Support Our customer service team is available for technical or guarantee support, www.goodmans.co.uk/support. 4.2 CHANNEL100W 6 SPEAKER SOUND SYSTEM www.goodmans.co.uk BASE...
