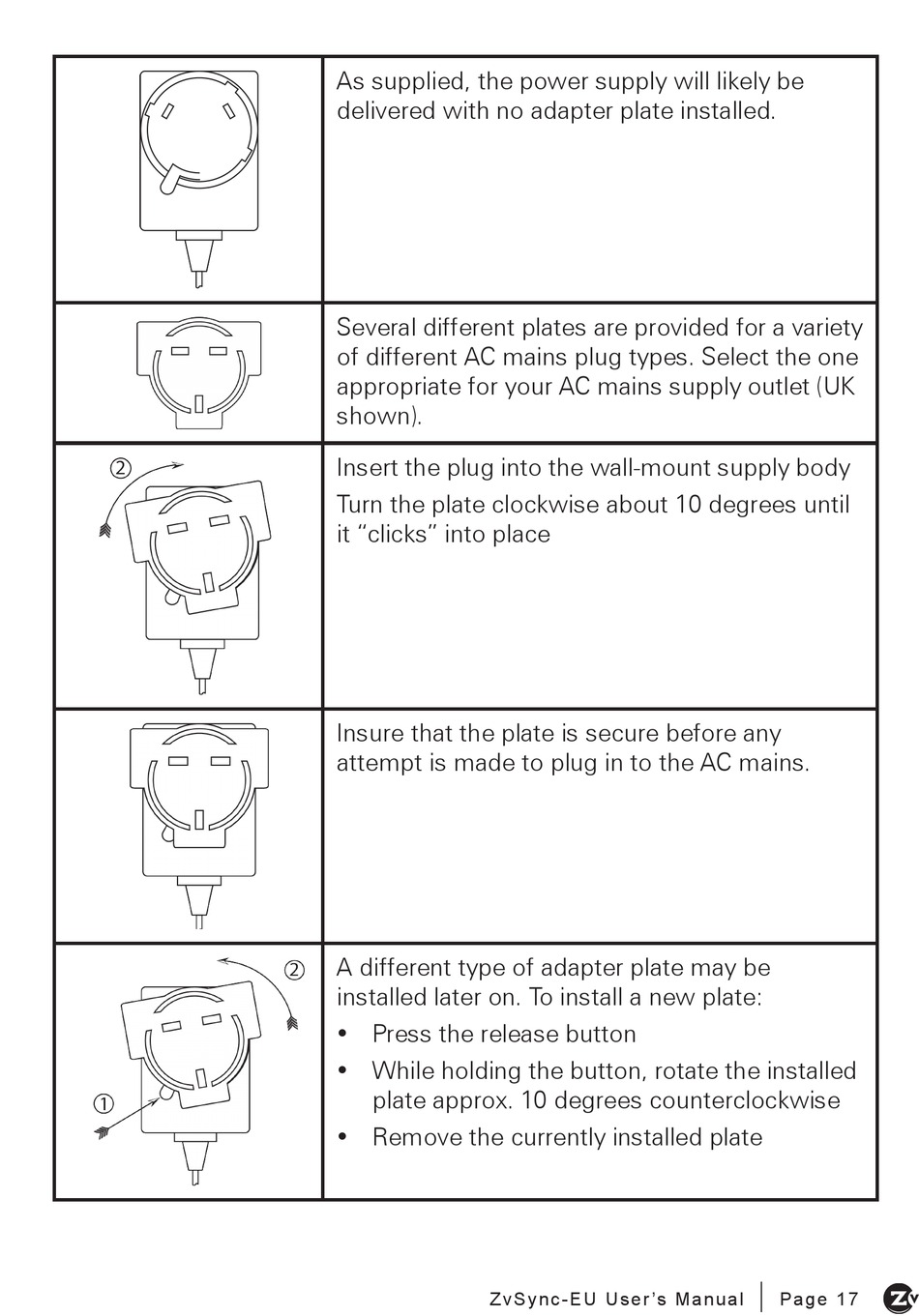

As supplied, the power supply will likely be
delivered with no adapter plate installed.
Several different plates are provided for a variety
of different AC mains plug types. select the one
appropriate for your AC mains supply outlet (UK
shown).
Insert the plug into the wall-mount supply body
Turn the plate clockwise about 10 degrees until
it "clicks" into place
Insure that the plate is secure before any
attempt is made to plug in to the AC mains.
A different type of adapter plate may be
installed later on. To install a new plate:
 Press the release button
 while holding the button, rotate the installed
plate approx. 10 degrees counterclockwise
 Remove the currently installed plate
|
