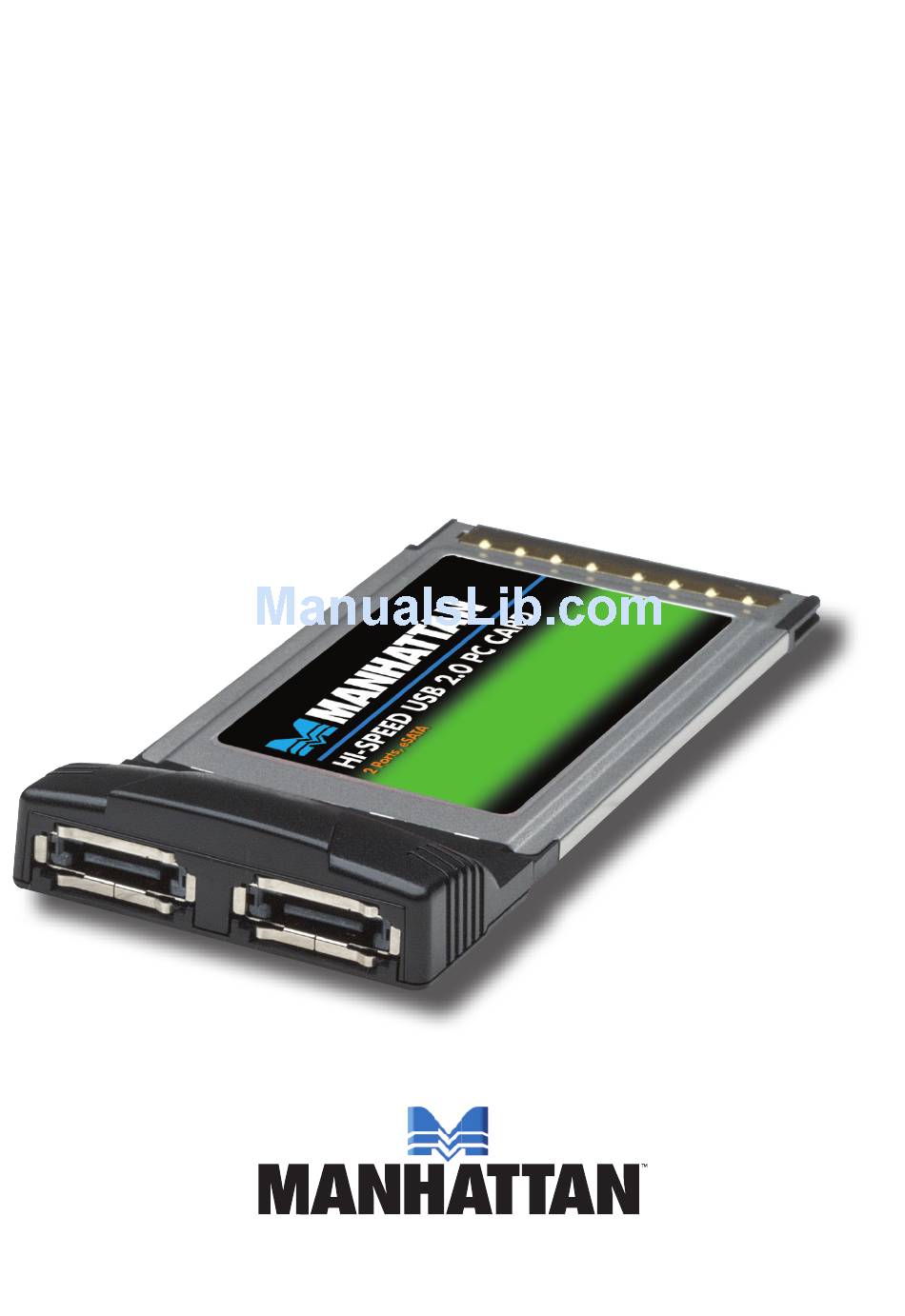

- Page 1 SATA cArdbuS pc cArd uSer mAnuAl Model 150019 MAN-150019-UM-0409-01...
-
Page 3: Hardware Installation

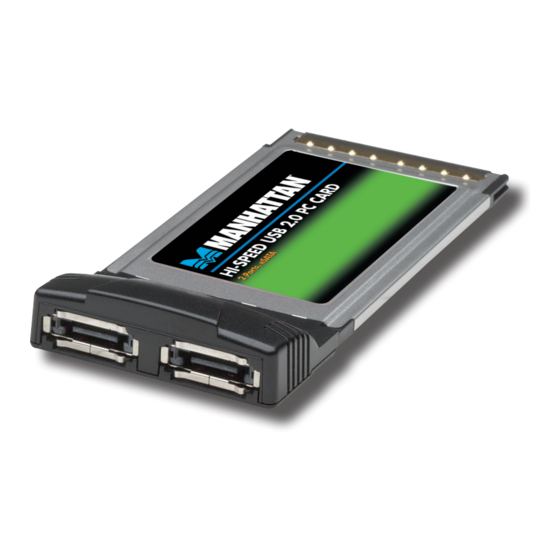

Thank you for purchasing the MANHATTAN SATA 150 CardBus ® PC Card, Model 150019. Compliant with SATA 1.0a specifications, this card adds dual external SATA ports to connect data storage and other SATA peripheral devices. It supports data transfer speeds of up to 1.5 Gbps and, using 48-bit LBA, it breaks the size limit of 137 GB hard drives to support larger storage devices. -
Page 4: Software Installation
SofTwAre inSTAllATion For Windows 2000/XP/Server 2003/Vista 1. Insert the SATA 150 CardBus PC Card into an available slot. Connect SATA cable(s) between the SATA port and SATA device(s). 2. Windows will display “Found New Hardware Wizard” and “Mass Storage controller.” 3. - Page 5 Updating the New Driver for Windows 2000/XP/Server 2003/Vista 1. Right-click on My Computer and select Properties. Under the System Properties section, click on the Hardware tab, then click “Device Manager.” Click “SCSI and RAID Controllers,” right-click “Silicon Image SiI 3132 SATALink Controller,” then select Properties from the context menu.
-
Page 6: Specifications
SpecificATionS Standards and Certifications • FCC • CE • SATA 1.0a Ports • 2 eSATA (extermal) I-type • Transfer rate: 1.5 Gbps General • PCI ExpressCard/34 • Supports 2 independent eSATA channels • 48-bit LBA for support of HDD larger than 137 GB •... - Page 8 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
