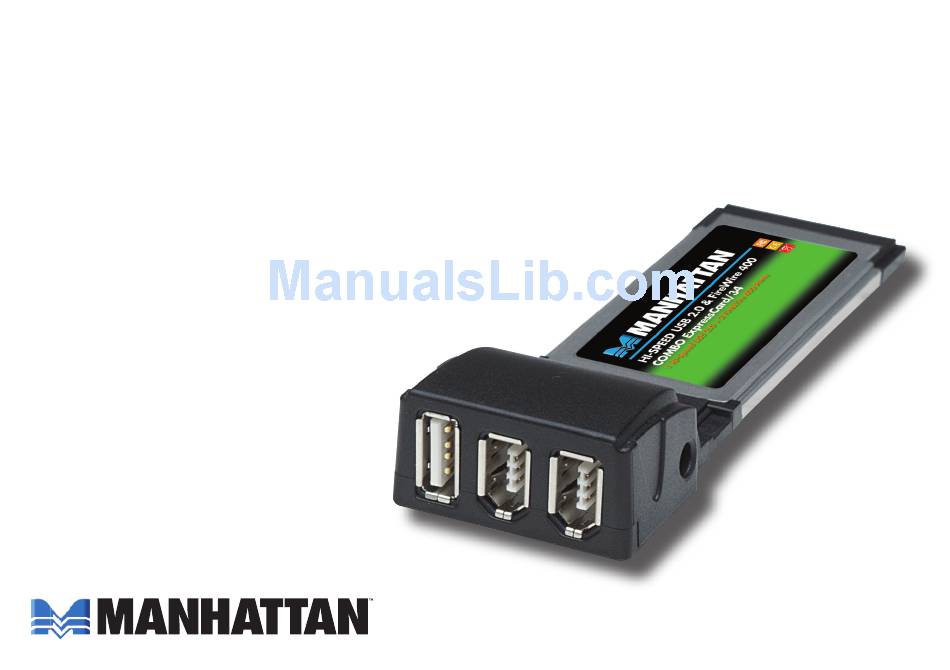

- Page 1 Hi-Speed USB 2.0 and FireWire 400 ComBo expreSSCard/34 USer manUaL MODEL 515252 MAN-515252-UM-1106-03...

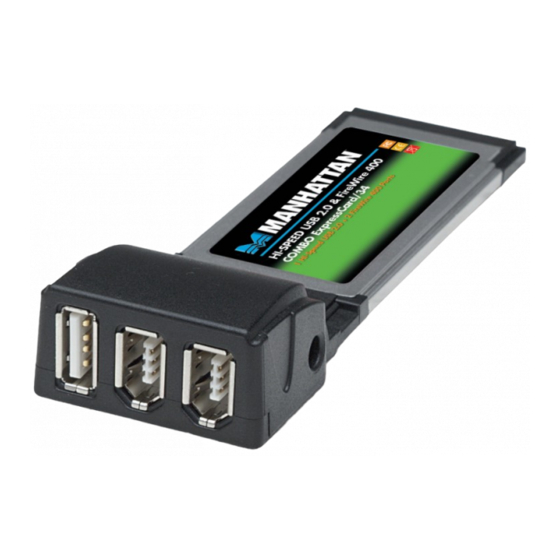

- Page 2 Hi-Speed USB 2.0 and FireWire 400 Combo ® ExpressCard/34, Model 515252. Compliant with IEEE1394a, USB 2.0 and PCI Express 1.0a specifications, this card adds two FireWire 400 ports and one Hi-Speed USB 2.0 port to connect data storage, digital media and other FireWire and USB peripheral devices. It supports FireWire 400 data transfer rates of 400, 200 and 100 Mbps (IEEE 1394) and USB data transfer rates of 480, 12 and 1.5 Mbps.
-
Page 3: Software Installation
SoFtWare inStaLLation For Windows NT 1. Insert the Hi-Speed USB 2.0 and FireWire 400 Combo ExpressCard/34 into an available ExpressCard slot. 2. When the wizard indicates that it has found a driver for the device, click "Next." 3. The wizard will now copy the required files to the system and start the driver. After starting the driver, the wizard will display a completion dialog. - Page 4 Verifying Windows 2000/XP Installation 1. Right click on "My Computer" and select "Properties." Left click on the "Hardware" tab and then on the "Device Manager" button. 2. Double-click on "IEEE 1394 Bus Host Controllers." If there is no yellow "!" or "?" in front of "Texas Instruments OHCI Compliant IEEE 1394 Host Controller,"...
- Page 5 Windows Me Installation 1. Insert the Hi-Speed USB 2.0 and FireWire 400 Combo ExpressCard/34 into an available ExpressCard slot. 2. The Hardware Wizard will display that it found a "Texas Instruments OHCI Compliant IEEE 1394 Host Controller." Select "Automatic search for a better driver (Recommended)." Click "Next."...
-
Page 6: Specifications
SpeCiFiCationS Port Specifications • Two FireWire 400 ports (6-pin female connector); one Hi-Speed USB 2.0 port (Type A) • Hi-Speed USB 2.0 data transfer rates of 480 Mbps, 12 Mbps and 1.5 Mbps; FireWire 400 devices data transfer rates of 400 Mbps, 200 Mbps and 100 Mbps •... - Page 7 System Requirements • Windows 2000/XP/Vista or MAC OS 10 or above • PCI Express-enabled system with an available ExpressCard slot • CD-ROM drive Package Contents • FireWire 400 and Hi-Speed USB 2.0 Combo ExpressCard/34 • User manual and driver CD...
- Page 8 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
