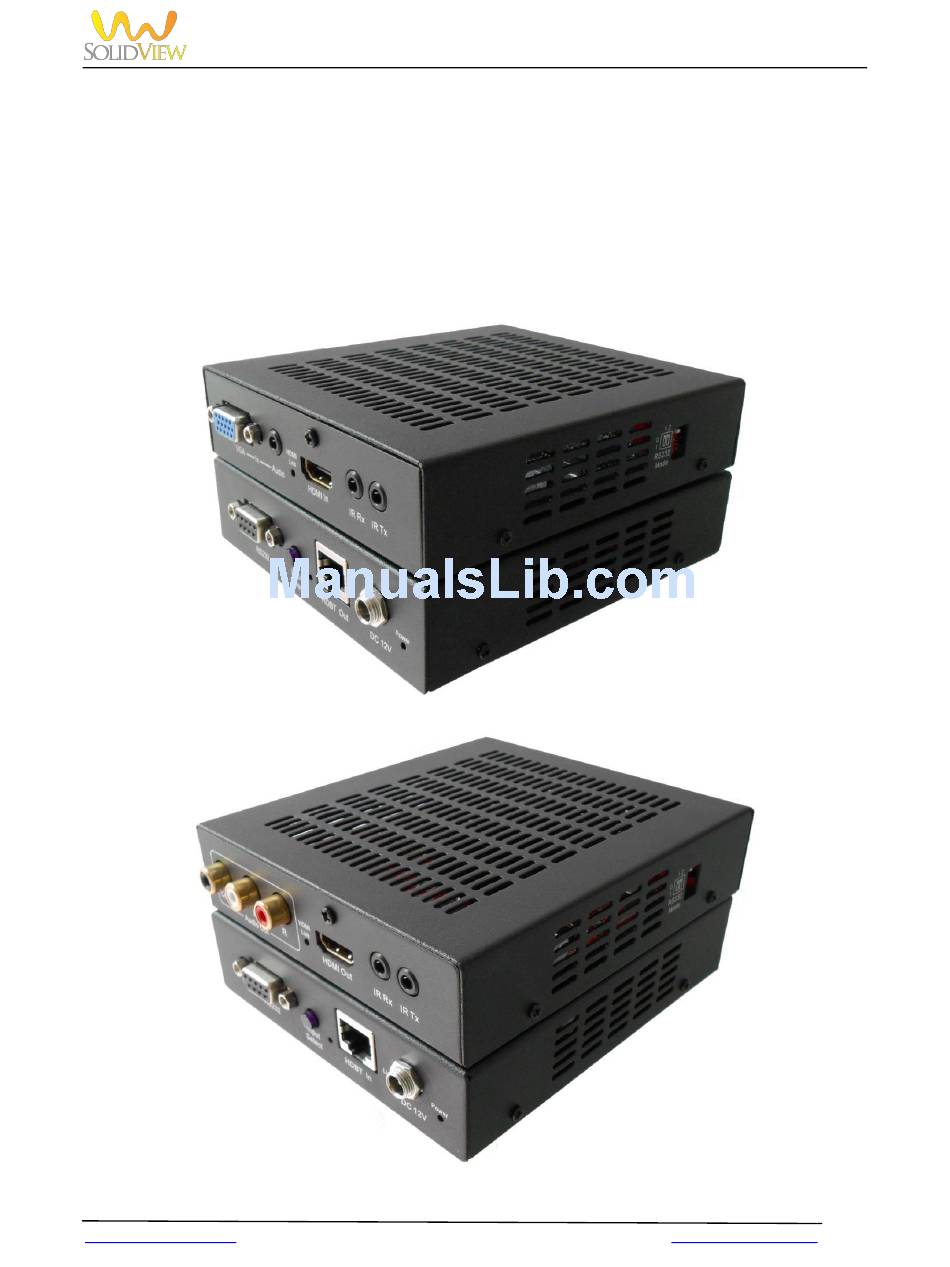

Page 1: User Manual
ET0201-VF1/VF2 User Manual ET0201-VF1/VF2 User Manual www.SolidViewAV.com Contact: info@solidviewav.com... - Page 2 ET0201-VF1/VF2 User Manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
ET0201-VF1/VF2 User Manual Table of Contents I n t r o d u c t i o n ..................4 F e a t u r e s . -
Page 4: Introduction
HDBaseT Switcher Extender. It switches between HDMI and VGA/audio inputs, digitizes, and transmits via HDBaseT. Both the transmitter and receiver offer manual and RS232 switching between HDMI and VGA inputs. By using ET0201-VF1 and ET0201-VF2, the transmission distance for 1080P reaches 100 meters (330ft), and 4K x2K reaches 70 meters (230ft). -
Page 5: Panel Descriptions
ET0201-VF1/VF2 User Manual Panel Descriptions ET0201-VF1: VGA input Audio input(go with VGA input) HDMI input IR Receiver jack IR Transmitter jack RS232 port Input select button Inputs indicator light, red for VGA input, blue for HDMI input HDBaseT output 10. DC power input 11. - Page 6 ET0201-VF1/VF2 User Manual ET0201-VF2 RS232 port Input select button Inputs indicator light, red for VGA input, blue for HDMI input HDBaseT input DC power input Coaxial Digital Audio output,SPDIF RCA L: Left channel of stereo analog audio output RCA R: Right channel of stereo analog audio output HDMI output 10.
-
Page 7: R S 2 3 2 S W I T C H I N G C O D E S
ET0201-VF1/VF2 User Manual RS232 switching codes for VGA and HDMI inputs Codes Description vgaselect Switching to VGA input hdmiselect Switching to HDMI input getselect Get status of currently selected input, return message will be HDMI port or VGA port Note: Codes are case sensitive. Carriage returns (0X0D) needs to be pressed to activate the code. -
Page 8: Application Diagram
ET0201-VF1/VF2 User Manual Application Diagram Specifications ET0201-VF1: Bandwidth: 2.97Gbps per color 1 x HDMI Type A, 19-pin, female, locking Video Input Connectors: 1 x VGA Type A, 15-pin, female, locking Video Output Connectors: 1x RJ-45 RS-232 serial port: DB-9, female IR Input ports: 1x 3.5mm stereo jack... -
Page 9: Maintenance
The warranty does not apply to any part of a product that has been installed, altered, repaired, or misused in any way that, in the opinion of SolidView, would affect the reliability or detracts from the performance of any part of the product, or is damaged as the result of use in a way or with equipment that had not been previously approved by SolidView. -
Page 10: Exclusive Remedies
RMA Policy When returning product to SolidView for any reason, the customer should fill out the official RMA form to obtain a RMA number. Without the permission or approval, SolidView will be no responsible for any return.This can be initiated by emailing or calling your related sales. - Page 11 Shipping your RMA to SolidView using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping. SolidView will not repair or replace a module that is shipped in such a way that the product is not properly protected.
