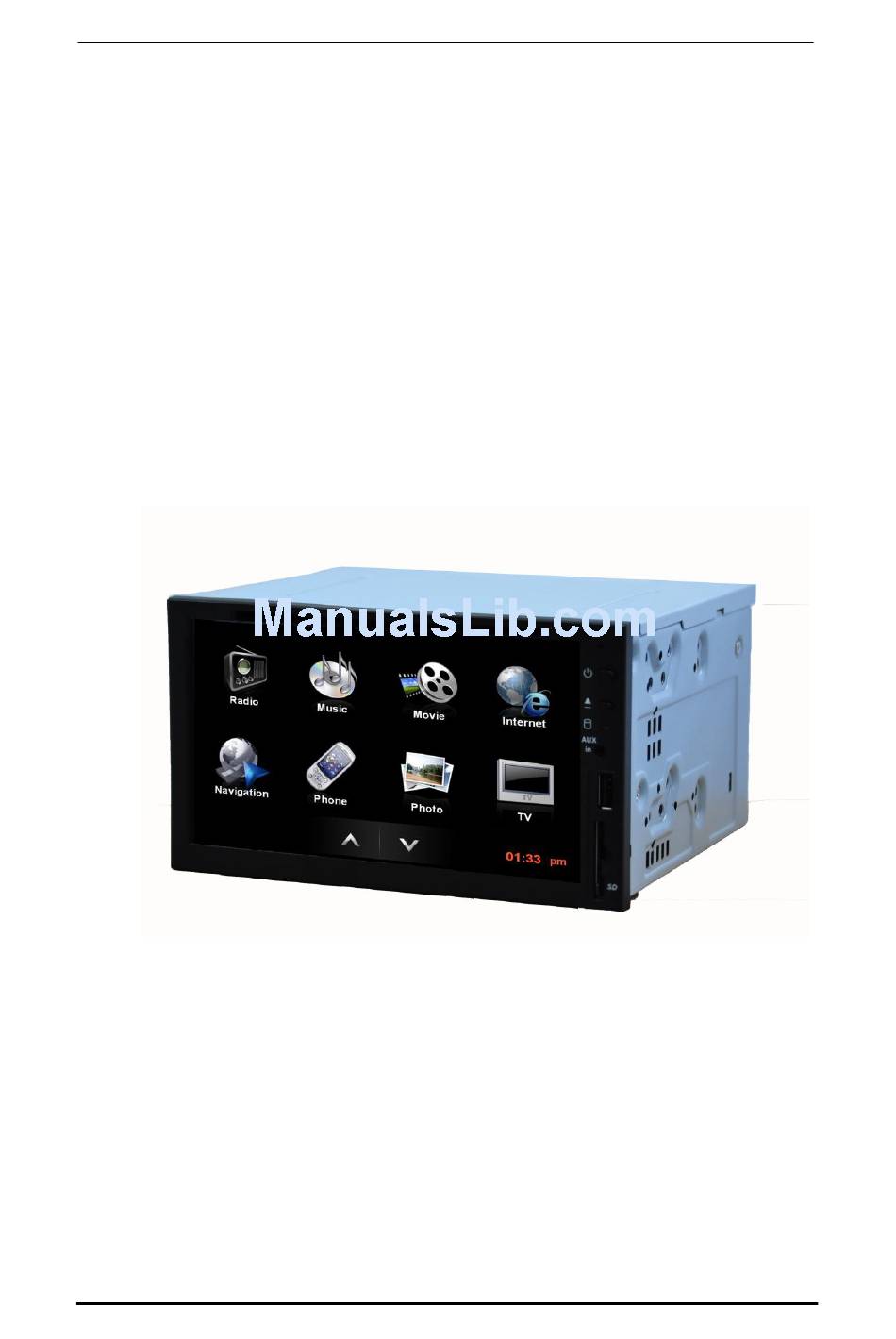

VPC6600
2-DIN Vehicle PC
Operation Manual
Operation Manual
October 2011, Ver. A.2
VPC6600 Series Vehicle PC Operation Manual A.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPC6600 and is the answer not in the manual?

Questions and answers

Related Manuals for Giantec VPC6600

Summary of Contents for Giantec VPC6600

  • Page 1 VPC6600 2-DIN Vehicle PC Operation Manual Operation Manual October 2011, Ver. A.2 VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 2: Copyright

    All rights reserved. October 2011, Ver. A.2 Announcement This manual is only written for the VPC6600 2DIN Vehicle PC series product with supporting Windows based operating system use. The appropriate models for this user’s manual are in the following list: VPC6600 series ...

  • Page 3: Safety Notice

    8. Do not disassemble and/or modify this unit. It may cause an accident, fire or electric shock. Please contact your local authorized service agent for inspection and/or repair if you felt the unit is malfunctioning. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 4 5. Please make sure the rear seat display shall installed at a place or location where the driver is not able to see or getting distraction with. 6. Please to comply the local laws and regulations for installing and/or operating an audio/video combo head unit within vehicle. VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 5: Technical Support Information

    This warranty does not cover any failure resulting in loss to software, data, lost profits, lost savings, any incidental damages or other economic consequential damages due to accident, abuse, misuse, negligence and acts of God. VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 6: Packing List

    Packing List Before you begin installing your unit, please make sure that the following materials are included in the packing:  1 x VPC6600 Vehicle PC main system  1 x CD (User Manual & Driver CD)  External cable kit with multi-lock connectors in 3 pieces (in a inner box) If any of these items are missed or damaged, contact your distributor or sales representative immediately.

  • Page 7: Table Of Contents

    2.1 General Features 2.2 Icons 2.2.1 Phone 2.2.2 Music 2.2.3 Radio 2.2.4 Internet 2.2.5 Navigation 2.2.6 Movie 2.2.7 Photo 2.2.8 TV 2.2.9 Windows 2.2.10 Application 2.2.11 Backlight 2.2.12 Settings 2.2.13 AUX1 Appendix A: System Recovery VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 8: Chapter 1 Introduction

    Users can easily identify their needs by accessing the GUI (Graphic User Interface) to perform any service, requirements or settings within few clicks. This manual will guide you to understand fully about the VPC6600 with all features and also take you to explore the unlimited in-vehicle multimedia infotainment combine with all the greatest utilities that PC can offer.

  • Page 9: Major Features

    VPC6600 has build in with graphical icon human interface control (also known as Graphic User’s Interface; GUI) – Media Monsuta 2 which allows you to touch the front screen to access or manage all the features provided by VPC6600, such as GPS navigation, WiFi/Bluetooth communication, Movie/Music/Picture playback, EQ equalizer, and smart power management system, etc.

  • Page 10: Chapter 2 Software Function

    File format supports in jpg, jpeg and bmp. It can also (hands free mobile phone – external Microphone read source from all mass storage (including connection is required) or VOIP – software DVD/CD, USB disk and HDD) depended. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 11 At the main menu’s right hand side bottom is displaying the current system time. At the main menu’s bottom with two arrow keys to switch between pages. Touch for “page up” and “page down” VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 12: Icons

    NOTE Before using this UI and making phone calls, please make sure your Bluetooth phone is able to perform pairing setting with VPC6600’s Bluetooth device. Detailed description can be found in 2.2.1.1 Active Bluetooth Communication with a mobile phone in this manual.
  • Page 13  with a connected mobile phone. Tab to make and hang up a call. Tab to edit a selected contact in VPC6600’s phone book. Tab to launch Skype program (refer to 2.2.1.3 About Skype communication for details). Tab to switch the voice sound output in between car speakers and mobile phone’s speaker.
  • Page 14 At the same time, tab this icon to start pairing. Step 2. Please select “VPC6600” from your mobile to start connection and key in “1234” as security pairing code for connecting both devices. Step 3. After entering the security code, the Bluetooth status menu will show “Normal”...
  • Page 15 When the Bluetooth pairing is in ready mode, you can access the phone function under the Media Monsuta’s main menu and it will show up another window which is like in below diagram. Tab the keypad to enter phone numbers and tab make calls. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 16 (also support Chinese input) to enter names for assigned number, you can also edit numbers from here. Step 3. to save this contact or tab to exit without save. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 17 Tab to delete the contact. NOTE Before exiting the screen: to save your settings/changes to exit without save directly to exit back to main menu will not save any settings/changes VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 18 2.2.1.3 About Skype Communication If you are accessing internet through WiFi or 3G network, you can use Skype via VPC6600 to keep in touch with your family, friends, or business associates. VPC6600 does not come with pre-installed Skype software, you would need to visit the official website for self installation, and then link up with Media Monsuta.

  • Page 19: Music

    Enjoying endless hours of music while driving? Media Monsuta has built in a music player and it’s easy to operate for everyone to use. You can play the music files from all sorts of external source or just from your VPC6600’s internal storage device.
  • Page 20 The last device is reserved for DVD player, if there is no DVD player in VPC6600, and then it will appear as No Disk. icon or tab directly to the music file name to play music. During...
  • Page 21 Return back to main menu NOTE When adjusting the volume, please make sure that this is done under the Media Monsuta’s GUI environment. Please do not try to attempt adjusting volume from somewhere else. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 22 (refer 2.2.12.1 sound settings for details). NOTE Before exiting the screen: to save your settings/changes to exit without save directly to exit back to main menu will not save any settings/changes VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 23: Radio

    2.2.3 Radio Radio features is combined within VPC6600, therefore user is able to access this from Media Monsuta’s GUI. There are AM / FM radio stations and also support 18 AM stations and 27 FM stations in memory setting. Tab Radio under main menu and brings up the following pictures. You are able to choose AM1, AM2, FM1, FM2 and FM3 from left column and right column displays the station channels.
  • Page 24 Step 3: Repeat Step 1 and 2 to finish all 9 preset stations’ memory in each radio band for later use. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 25 9 strongest radio stations by reception signal. To save radio station follow by a assigned number To access sound effect setting (refer 2.2.2.1 about sound effect setting and 2.2.12.1 sound setting for details) Return back to main menu VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 26: Internet

    Under Internet feature, few factory default settings for internet service information, such as weather, traffic…etc has been configured. Please make sure your VPC6600 is internet service enable (WiFi / 3G) before accessing those information. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 27 Media Monsuta’s main menu. NOTE Before exiting the screen: to save your settings/changes to exit without save directly to exit back to main menu will not save any settings/changes VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 28: Navigation

    Navigation Navigation can help you find your way around during driving. The navigation software and GPS receiver does not come as standard package in VPC6600, however Media Monsuta has already pre-design a quick access icon for this propose. User will have to add GPS receiver and relevant navigation software to be able to run with it.

  • Page 29: Movie

    Tab My Movie from the left column, it will show the all media files (avi, mpg, mpeg, mp4, wmv, flv and vob) which was stored in your VPC6600 under the following path: C:\Monsuta Media\Movie. Any unnamed external storage device is attached to VPC6600, it will display as Storage 01, Storage 02…etc.
  • Page 30 2.2.12.1 sound setting). Return back to main menu Fast forwarding in 2x, 4x, 8x, and 16x speed will only apply in DVD NOTE: player mode, other format will support only with 2x speed forwarding. VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 31: Photo

    VPC6600, it will display as Storage 01, Storage 02…etc. Tab any appeared storage device from left column which will show up the picture files. The last device is reserved for DVD player, if there is no DVD player in VPC6600, and then it will appear as No Disk.
  • Page 32 Tab to change the display time interval period from 1.5, 3 and 5 seconds. Tab to rotate photo 90° clockwise. Return back to main menu Footnote A: Split Photo Pre-view Text File Name Pre-view VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 33 You will never miss out your favorite TV program when you are out on the road. Simply plug in USB TV receiver, install relevant driver and set up the quick access in your VPC6600 to start enjoy your favorite program from Media Monsuta’s GUI.

  • Page 34: Windows

    Tab Windows icon from Media Monsuta’s main menu to switch to Windows Platform environment. from Windows environment and tab again to return back to Media Monsuta’s main menu. VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 35: Application

    Before start using this feature, you would have to access quick link set up under Media Monsuta’s path setting function to assign this quick access link (refer to 2.2.12.4 Path Setting for details). VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 36: Backlight

    To reactive backlight again, just simply tabbing anywhere within LCD screen. In addition, there is also an advance Auto and Manual backlight level settings in brightness for you to select from. VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 37: Settings

    2.2.12 Settings Settings allows user to self set up Media Monsuta’s basic settings which gives the ability to manage VPC6600 more efficiently. The basic settings are included date and time, language, power control, touch screen’s calibration, audio sound stage setting, display, dual display and quick access link.
  • Page 38 2.2.12.1.1 Sound Stage Setting User may select one of the default equalizer’s (EQ) settings from the left column to adjust the audio output. Each EQ will display different combination of BASS, MID and TRE. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 39 Tab left and right to adjust up and down for speaker volume. To adjust EQ settings To adjust each speaker’s volume setting To select loudness in boost or flat Return back to main menu VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 40 NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 41 NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 42 Night mode setting: With car’s headlight is on, tab icons to adjust brightness and then tab to save settings under night mode. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 43 NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 44 NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 45 NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 46 2.2.12.3.1 Date & Time This page will allow you to adjust the system’s date & time directly without accessing back to Window’s platform for adjustment. Please follow below steps carefully to perform this adjustment. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 47 AM/PM) which will be displayed in red color for making adjustment. Step 2. icons to make adjustment. NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 48 You can tab from right hand column to select desired setting. NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 49 0 ~ 1800 seconds accordingly. icon to access power management page and use to make settings. The VPC6600 will be entering the suspending mode with mute and configured time interval and then power off automatically after the ignition is turned off.
  • Page 50 2.2.12.3.4 Touch Screen’s Calibration to access touch screen’s calibration setting page. VPC6600 has already pre-installed the program. If you wish to perform this adjustment, please refer to 2.2.12.4 Path Setting for linking up quick access link from the following path: C:\Program Files\PenMount Universal Driver\DMCCtrl.exe.
  • Page 51 NOTE Before exiting the screen: to save your settings/changes to exit without save directly to return back to main menu and will not save VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 52 Media Monsuta GUI prior to set up quick access link. Step 2. After installation is completed, return back to Media Monsuta’s path setting page under application and choose the corresponded program/application name from the left column to assign this quick access link. VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 53 (refer 2.2.1 Phone for details). For Bluetooth and Touch Screen’s Calibration which can be access from system setting page with tabbing both icons (refer 2.2.12.3.4 Bluetooth and 2.2.12.3.5 Touch Screen’s Calibration for details). VPC6600 Series Vehicle PC Operation Manual A.2...
  • Page 54 2.2.12.5 Dual Display Setting VPC6600 supports dual independent display function where front and back seat passengers can use different application at the same time. Tab icon to access dual display setting page. The following screen shouts shows after tabbing dual icon.
  • Page 55 2.2.12.6 System Information icon to access into system information page. The system information page will bring up the most current version which VPC6600 is using for Media Monsuta GUI, Audio, Video and Power Module. VPC6600 Series Vehicle PC Operation Manual A.2...

  • Page 56: Aux1

    VPC6600 provides one additional audio/video input for user who wishes to connect up an external device. All you have to do is connect up the device to the back of VPC6600’s connection point/plug, then access this device from Media Monsuta’s main menu in AUX1.

  • Page 57: Appendix A: System Recovery

    Appendix A: System Recovery VPC6600 has equipped with a recovery system scheme for returning the whole unit back to original factory default settings, in case of the system is malfunctioning. Please follow below steps carefully to perform this action. NOTE Please have a USB keyboard connected ready before starting this system recovery scheme.
  • Page 58 During the recovery scheme is in progress, a percentage of completion is showing on the screen. Once the recovery in completed, the VPC6600 will restart and system will perform back to normal under default factory settings.
