D i s p l a y
I n s t a l l a t i o n
T
S
RANSDUCER
ELECTION
The transducer supplied with the DF1000D is suitable for installation and operation on most boats. For optimal perform-
ance the transducer should be mounted to the transom of the boat as per the installation instructions supplied with the
transducer installation instructions. On fiberglass hulls (non-cored) and some aluminum hulls it can be glued to the inside
of the hull, but this type of installation will reduce the performance of the DF1000D slightly.
Some boats may require a specialized transducer. If after completely reviewing the transducer installation instructions supplied with
the transducer you find that the supplied transducer is not appropriate for your vessel, please contact NMP at 888-667-2767, or visit
us on the internet at www.norcrossmarine.com for exchange information. You may exchange your new and unused transducer for
another type, but keep in mind that some transducers may have additional costs.
P
T
L
ARTS AND
OOLS
IST
Parts Supplied in Packaging
Before installing your DF1000D Depth Sounder, please ensure that the following parts are included in the packaging:
• DF1000D Depth Sounder Display
• Flush Mount Bracket and Hardware
• Power Cable Attached to the Unit
• Warranty Card
If any items are missing or damaged, please contact our Customer Service Department at 888-667-2767.
Tools and Supplies Required for Installation
• 2" Hole Saw and Drill
• Wire Connectors Suitable for Connecting the Power Wire to Your Vessel
• Wire Cutting/Crimping Tool
• Marine Sealant
D
I
ISPLAY
NSTALLATION

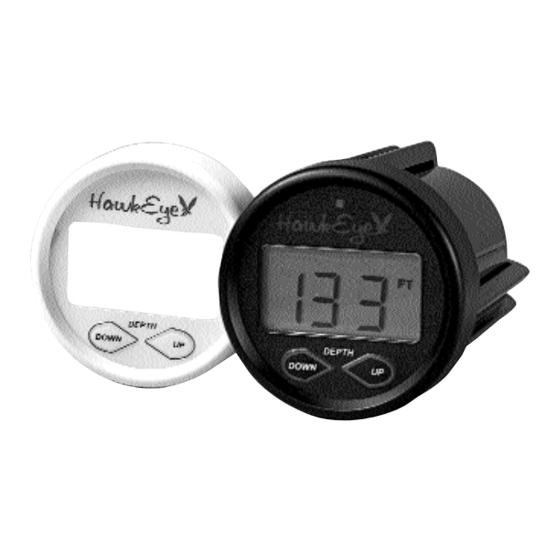

Installation of the DF1000D Display
1. Find a location on the boat that will allow clear viewing of the LCD Display. Please
keep in mind that the wires for the transducer and power must reach the mounting
location.
2. After finding the right location for the display, mark a 2-inch hole.
3. Check behind the desired mounting location for any cables or wiring which could be
damaged, then cut out the 2-inch hole and seal any exposed wood with a marine
sealant.
4. Insert the display from the front of the panel, and install the bracket and locking nut
from the rear of the panel (see Figure 1). Make sure that the face of the display is
rotated upright and aligned to your satisfaction for easy viewing from the vessel's
helm.
The DF1000D can also be surface mounted using NMP's exclusive MB01 Adjustable
Surface Mount Bracket (see Figure 2). Please see your local retailer, or contact NMP's
by phone 888-667-27637 , or online at: www.norcrossmarine.com for purchase
information. You must attached the extension rod to the mounting stud on the back of
the DF1000D display before inserting the display into the MB01.
a n d
O p e r a t i o n
Figure 1
Figure 2
- 1 -
DF1000D
Digital Depth Sounder
M a n u a l
Transom/In-Hull
IMPORTANT!!!!
Install
the
transducer
installing the display to ensure that
the transducer cable is long enough
to reach your desired mounting
location. Read ALL the instructions
completely before proceeding with
the installation.
MB01
Extension
Rod
Included
Transducer
before
