MicroCam II
Wireless Security Camera
With 4 Channel Receiver
If this device does not work when you first
plug it in, do not take it back to the store.
Contact the Swann Helpdesk using one of the Toll-Free
numbers shown on the back cover of this booklet.
Most problems can be quickly and easily fixed with a
quick chat with one of our friendly technical staff.
(Toll-Free available in the US and Australia only)
Note: Wireless Networks (WiFi) may interfere with and/or experience interference caused by the transmitter
in this unit. Changing the receiver to another channel/frequency or setting the Wireless Network (i.e. Wireless
Access Point) to a frequency further away from the camera's set frequency can alleviate this problem.
Consult the documentation of your Wireless LAN device for information on how to change the transmission
frequency. These cameras work with most wireless camera receivers that support 2414MHz, 2432MHz,
2450MHz and 2468MHz.

INSTALLATION GUIDE

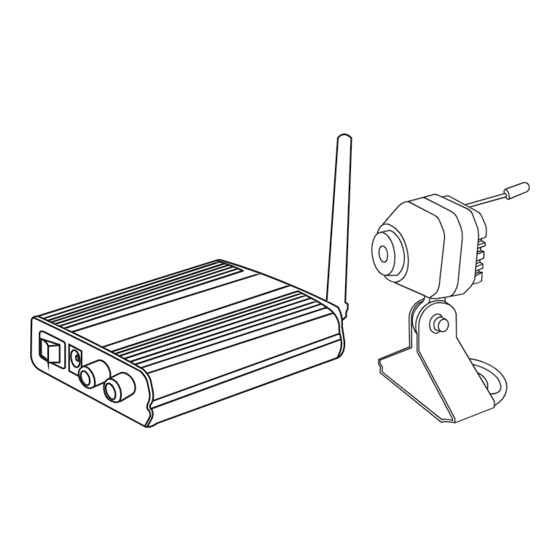

MicroCam II comes with...
• 1 x MicroCam II Miniature Colour Camera / 2.4GHz Transmitter
• 1 x MicroCam II 2.4GHz Receiver
• 1 x 9v Battery Snap for Transmitter/Camera
• 1 x Mains Power Adaptor (8V for use with MicroCam II)
• 1 x Mains Power Adaptor (12V for use with Receiver)
• 1 x 6 Pin Plug to RCA Adaptor cable (For use with Radio Shack 4-Channel
Video Surveillance Switchbox ~ Cat No.:49-2533 -
purchases only
)
• RCA Cable
• Metal Camera stand
• This Instruction Sheet
If any of these items are missing, please contact your retailer.
Index
USA Radio Shack

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MicroCam II and is the answer not in the manual?

Questions and answers

Summary of Contents for Swann MicroCam II

  • Page 1: Installation Guide

    • 1 x 9v Battery Snap for Transmitter/Camera Wireless Security Camera • 1 x Mains Power Adaptor (8V for use with MicroCam II) • 1 x Mains Power Adaptor (12V for use with Receiver) • 1 x 6 Pin Plug to RCA Adaptor cable (For use with Radio Shack 4-Channel With 4 Channel Receiver Video Surveillance Switchbox ~ Cat No.:49-2533 -...
  • Page 2 (12V) If required, place the MicroCam II into the Camera Stand by first placing the cable through the bracket and then gently push the camera in until it is correctly seated. Tighten the screw on the stand until firm.
  • Page 3 *The MicroCam II works on Channel 2 (2432MHz) currently. Other channels are reserved for future accessory cameras, and are not usable at this time. See the Swann website or ask your Never paint or attach metallic labels or stickers of any kind.
  • Page 4: Telephone Support

    FCC Notice See http://www.worldtimeserver.com for information on different time zones and We, Swann Communications of 10612 Shoemaker Avenue, Bldg B, Santa Fe Springs, CA 90670 the time in Melbourne Australia compared to your local time. USA, declare under our sole responsibility that the product:...
