Summary of Contents for Breeze Digital Signage

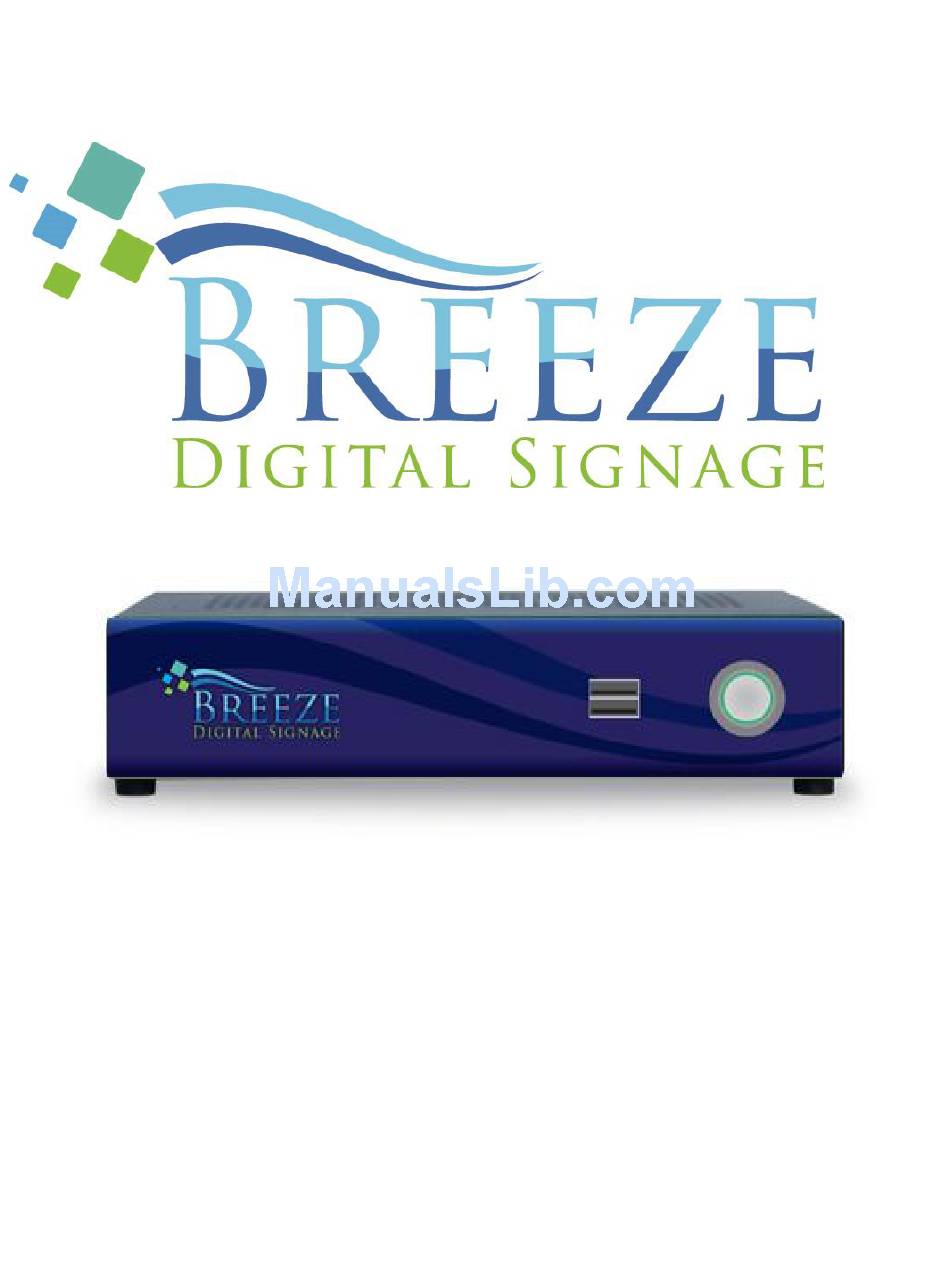

- Page 1 Breeze Digital Signage Installation Guide for the ASRock Motherboard Version 1.5 November 2014...
-
Page 2: Breeze Support
Keywest Technology technical support. Contact information: Phone: 1-800-331-2019, Option #2 E-mail: tech@keywesttechnology.com Chat: live chat assistance is available at http://www.breezedigitalsignage.com/support Documentation Getting Started with Breeze (Brief): http://helpdesk.keywesttechnology.com/index.php?/Knowledgebase/Article/View/124/ 0/getting-started-with-breeze Breeze Documentation (Full): http://helpdesk.keywesttechnology.com/index.php?/Knowledgebase/Article/View/167/ 0/breeze-documentation Training Videos... -
Page 3: Table Of Contents
Player Front ....................4 Player Back ....................4 Player Accessories ..................4 To Install Players ................... 5 Connect to a Breeze Server ................6 Player Registration..................6 Additional Installation Setup ................8 Audio Configurations ..................8 Network Connections ................. 10 Connect Breeze Players to Wireless ............ -
Page 4: Hardware
Breeze Installation Guide Hardware Player Front Player Back Player Accessories Your Breeze player will include the following accessories. Accessories: 1. 19.5V power supply (1) 2. Power cord (1) 3. Wireless Antenna (1) 4. Mounting bracket (1) 5. Player-Mounting screws (4) If the player kit that you received did not include all of the accessories, please notify Keywest Technology technical support. -
Page 5: To Install Players
Plug the HDMI cable into the Breeze player. Ethernet: 1. Connect the Ethernet cable to the Ethernet input (#8) on the Breeze player. Power: 2. Plug the power cord into to the 19.5V power supply and the electrical outlet. Plug the 19.5V power supply into the Breeze player. -
Page 6: Connect To A Breeze Server
2. Username and Password correspond to the credentials used to login to the Breeze server. 3. Player Name is the name the player will have in the Players tool in the Breeze server. It is recommended that a player be named according to its location when... - Page 7 The default playlist loaded on your player will begin showing once the player is registered. Players Tool: The Players tool in the Breeze server is where a user can interface with the player device. 1. Go to the Players tool in your Breeze server.
-
Page 8: Additional Installation Setup
Opening the sound control panel: 1. From the desktop of the Breeze player, click the System drop down menu in the top right corner of the player desktop. 2. From the System drop down menu, click System Settings. - Page 9 Breeze Installation Guide Changing the audio output: 1. Within the sound control panel, click the Output tab. 2. To switch from the headphones or speaker output (green) to the HDMI audio output, click HDMI/DisplayPort2 in the Play sound through window.
-
Page 10: Network Connections
Breeze Installation Guide Network Connections Out of the box, the Breeze player is configured to use DHCP and it will automatically obtain an IP address for you. If the player does not automatically obtain an IP address, please contact your network administrator. A static IP address can be assigned to the wired or wireless connections using the following steps. - Page 11 Breeze Installation Guide 5. In the Editing Wired connection… window, click the 1Pv4 Settings tab. 6. Select Manual from the Method drop down menu. 7. To input your TCP/IP settings, click the Add button. a. DNS Servers should be separated by a comma and no spaces.
-
Page 12: Connect Breeze Players To Wireless
Breeze Installation Guide Connect Breeze Players to Wireless The first step to connecting the Breeze player to your wireless network is confirming that networking is enabled. Confirm networking is enabled: 1. From the desktop of the Breeze player, click the Networking and Connections drop down menu in the top right corner of the player desktop. - Page 13 Breeze Installation Guide Enable wireless and connect to a network: 1. From the Networking and Connections drop down menu, click Enable Wireless. 2. From the Networking and Connections drop down menu, select your wireless network. a. If your wireless network is not listed, refresh the list of available wireless networks.
-
Page 14: Confirm Internet Connectivity
Breeze Installation Guide Confirm Internet Connectivity Once your player is connected to the wired or wireless internet connection, you can then use the Mozilla Firefox web browser to confirm internet connectivity. Opening Firefox: 1. Click the Dash Home Icon from the Launcher bar on the far left hand side of the player desktop. -
Page 15: Other Player Functions
Files application. 3. In the Home directory, double-click on the Factory Reset icon. 4. After the player configuration has been reset to the default settings, the player will need to be registered to a Breeze server before it can receive playlists. -
Page 16: Stop & Restart Breeze Player
Breeze Installation Guide Stop & Restart Breeze Player To stop the Breeze player software, you will need to connect a mouse and keyboard to the player or establish a remote connection to the player. Stopping the Breeze player software: 1. To stop the Breeze player software, click the Escape key on your keyboard until the Breeze player desktop displays. - Page 17 Breeze Installation Guide 5. Within the Terminal window, type the command pkill BreezeMonitor and press the Enter key. Restarting the Breeze player software: 1. To restart the Breeze player software, double click the BreezeMonitor desktop icon.
