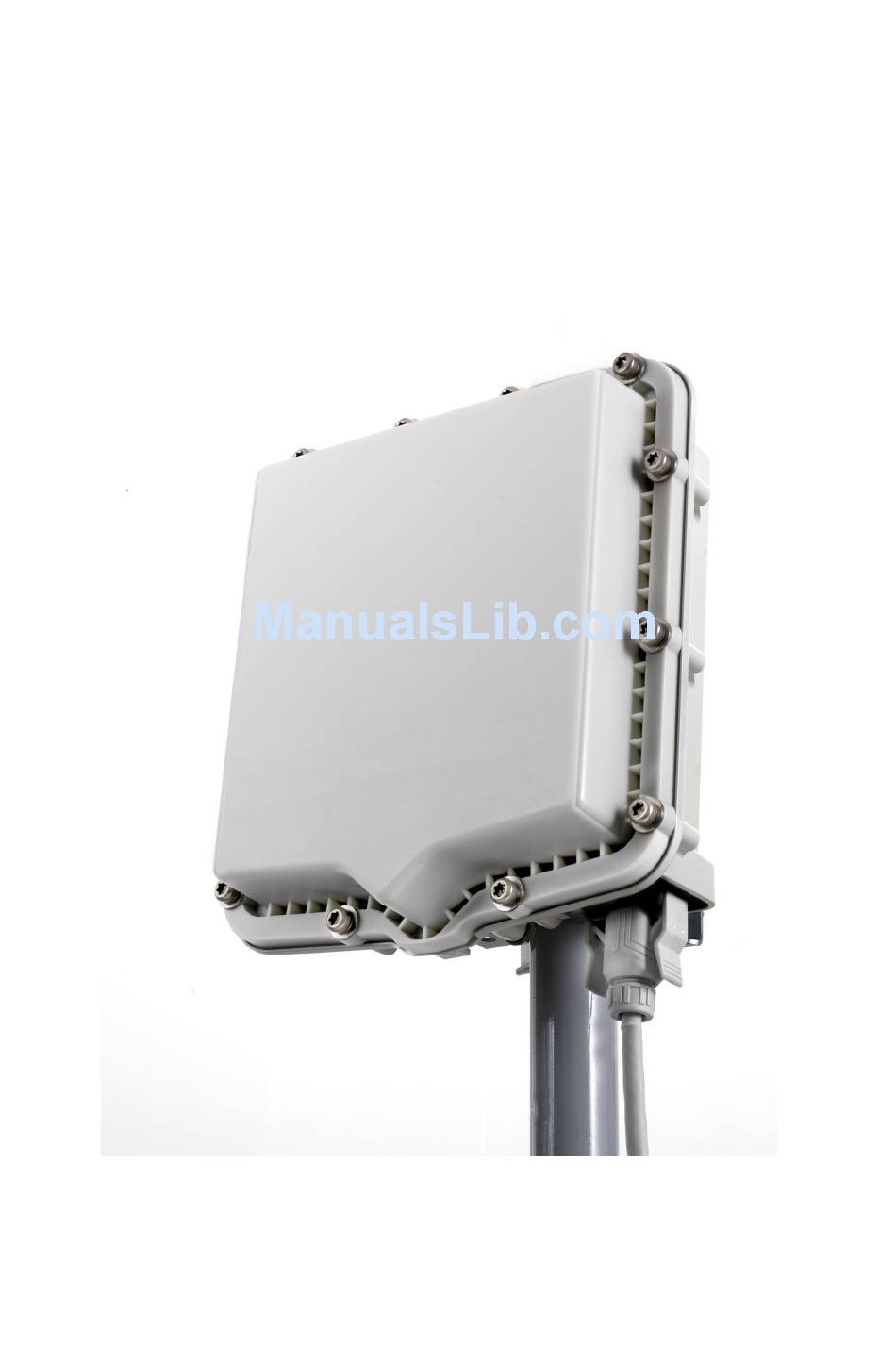

- Page 1 Gigaset SE680 WiMAX User Guide This device works in a frequency band for which a general licence might have to be obtained. Please contact your service provider or your National Authority for Frequency Management about licensing before putting this device into service...
-
Page 3: Table Of Contents
Wall mounting (optional) ..........11 Connecting the Gigaset SE680 WiMAX modem ......12 Connecting the outdoor modem . - Page 4 The Gigaset SE680 WiMAX – Free software ....... . 48...
-
Page 5: For Your Safety
Only pass on the Gigaset SE680 WiMAX modem to third parties with this user guide and the assembly instructions. The Gigaset SE680 WiMAX modem must only be installed and put into use by a qual- ified electrician in accordance with the supplied installation instructions. -
Page 6: Information On Specific Absorption Rate (Sar)
Notes on the user guide This user guide describes how to set up and configure the Gigaset SE680 WiMAX modem. Installation of the individual components is dealt with in the assembly instruc- tions, which you received together with the Gigaset SE680 WiMAX modem. -
Page 7: The Gigaset Se680 Wimax
SE680 WiMAX modem already meets the latest IEEE 802.16e-2005 standard, a mobile WiMAX standard that offers many extra possibilities. The Gigaset SE680 WiMAX modem With your Gigaset SE680 WiMAX modem, you can make use of everything the Internet has to offer: Downloads –... -
Page 8: Product Features
High performance and Quality of Service Optional: external antenna for improved quality of connection Scope of delivery 1 Gigaset SE680 WiMAX modem, comprising: – 1 Outdoor modem (to be installed by an electrician) – 1 Indoor unit 1 power lead (two-pin) 1 Ethernet cable (length 1.8 m) -
Page 9: Connectors And Leds
Red: The connection between the indoor unit and the outdoor modem is faulty. The LED shows that power is being supplied. Green: The Gigaset SE680 WiMAX modem is powered cor- rectly. Ethernet connector for data exchange with a PC or network (RJ45, 10/100 Base T), see "Connecting a PC or switch"... -
Page 10: Installing The Gigaset Se680 Wimax Modem
Outdoor modem with integrated antennas (X-pol) External antenna (optional) Indoor unit The Gigaset SE680 WiMAX modem must be assembled and put into serv- ice by a qualified electrician. The information in the enclosed assembly instructions must be noted. This user guide assumes that the work required for outside installation has already been carried out. -
Page 11: Choosing The Location
System requirements Choosing the location Choose the location so that you can easily establish the following connections: – Ethernet cable socket, which, for example, establishes the connection to the out- door modem through a wall duct. – Ethernet cable socket for connection with a PC or network. –... -
Page 12: Connecting The Gigaset Se680 Wimax Modem
Wall mounting (optional) Connecting the Gigaset SE680 WiMAX modem Set up the connections on the indoor unit in the following order: 1. Connect the outdoor modem. 2. Connect the PC or the switch/hub. 3. Connect the indoor unit to the mains power supply and switch all the devices on. - Page 13 Wall mounting (optional) Connecting the indoor unit to a PC ì Connect an Ethernet cable plug to the IN socket on the indoor unit. ì Connect the other plug of the Ethernet cable to the LAN interface on the PC. Connecting the indoor unit to a switch ì...
-
Page 14: Switching On The Devices
Check the LEDs during startup: LEDs during startup: – The ON power supply LED lights up green, and the Gigaset SE680 WiMAX modem starts a self-test. – The FAULT LED (red) and the CONNECT LED (green) light up for approximately 1 second and then go out. -
Page 15: Configuration With The Web Browser
ì Press Enter (Return). If a system password has been set up on your Gigaset SE680 WiMAX, the login screen will now open. Enter the system password supplied by your provider in the text box and click Ok.The start page (Home) of the user interface opens, in which you can change the language if necessary (see page 18). -
Page 16: User Interface Elements
User interface If the login screen does not open: ì Check the connections; see "Connecting the Gigaset SE680 WiMAX modem" on page 12. ì If you use a firewall on the PC, it must allow connection to the Gigaset SE680 WiMAX. - Page 17 Menu area: Click the menu items to display the respective pages of the currently open config- uration area or a submenu. Working area: Check the settings on your Gigaset SE680 WiMAX modem and change them as necessary. Buttons Open online Help.
-
Page 18: Setting The Language
Menu structure The menu of the user interface on your Gigaset SE680 WiMAX modem is split into the following main areas: Home, Basic Setup Wizard, Advanced Settings and Status. Under these menu options, you will find the following areas:... -
Page 19: The Home Page
The Home page The Home page Once you have logged in successfully to the Gigaset SE680 WiMAX modem, you will see the Home page for the device software. The start screen offers an overview of all areas of the configuration progam:... -
Page 20: Basic Setup Wizard
Internet provider. ì Enter the access data and click Next. Your Gigaset SE680 WiMAX can be used as an Internet router or bridge. For more on this see "Setting the operating mode" on page 24. Adjusting the antenna ì... -
Page 21: Establishing A Radio Connection With A Wimax Network
ì Turn your Gigaset SE680 WiMAX modem by approx. 20°. Turn or move the device a little at a time and note the signal strength display. Use this to move the antenna to the position with the best signal strength. - Page 22 ì Turn or move the Gigaset SE680 WiMAX modem or turn the antenna a little at a time and note the signal strength display. Use this to move the antenna to the position with the best signal strength.
-
Page 23: Advanced Settings
Internet (page 25). Local Network Here you can configure your local network, e.g. change the private IP address of the Gigaset SE680 WiMAX or make set- tings for the DHCP server (page 29). WiMAX configuration Here you can change the access data for your WiMAX access (page 30). -
Page 24: Setting The Operating Mode
PC, you must connect the PC directly to the LAN port. You must also temporarily assign it a static IP address in the address range of the Gigaset SE680 WiMAX. If you want to use the Internet again after this, reset your PC to “automatic IP address”. For details see the document “Configuring the local area network”... -
Page 25: Configuring Internet Access
Advanced Settings Configuring Internet access If you have configured the Gigaset SE680 WiMAX using the Basic Setup Wizard, you have also configured your Internet access. You can check or change these settings in the Internet menu. This menu also offers you a wide range of possibilities for setting up security settings and limiting access to the Internet as well as for providing your own services on the Internet. -
Page 26: Setting Up Dns Servers
Preferred DNS server and the Alternate DNS server. Enabling or disabling the firewall Your Gigaset SE680 WiMAX comes with an integrated firewall, which protects your device and network against unauthorised access from the Internet. If the firewall is ena- bled, your device can identify certain events, e.g. suspicious incoming data packets from the Internet, as attacks and avert them (hacker defence). -
Page 27: Port Forwarding
PC on which the game is running. If you configure Port Forwarding, the Gigaset SE680 WiMAX outwardly assumes the role of the server. It receives requests from remote users under its public IP address and automatically redi- rects them to local PCs. -
Page 28: Opening The Firewall For A Selected Pc (Exposed Host)
The IP addresses of the PCs you want to set up as exposed hosts must remain unchanged. If the IP addresses of the PCs are assigned via the DHCP server of the Gigaset SE680 WiMAX, you must select the option Never expires as the Lease time when configuring the DHCP server or assign static IP addresses to the PCs, see "Configuring the DHCP server"... -
Page 29: Lan Configuration
This address block is 192.168.1.1 to 192.168.255.254. Configuring the DHCP server The Gigaset SE680 WiMAX has a DHCP server for which the factory setting is active. Con- sequently, the IP addresses of the PCs are automatically assigned by the Gigaset SE680 WiMAX. -
Page 30: Wimax Configuration
IP address you wish to assign to the PC. Ageing time for MAC table When a PC in the network is accessed, your Gigaset SE680 WiMAX writes the MAC address and port number in a MAC table to speed up further accesses. The entry in the MAC table is deleted after a fixed time. -
Page 31: Administration
Firmware Update Updates firmware (page 33) System password The system password is the password for configuring your Gigaset SE680 WiMAX and is requested when you open the configuration pages, see "Launching the user interface" on page 15. If the device came from your provider with a preset system password, you can change this password here. -
Page 32: Restoring Factory Settings
Gigaset SE680 WiMAX modem. Restoring factory settings You can reset the Gigaset SE680 WiMAX to the factory settings. You should do this before making the device available to others or exchanging it through the dealer. Oth- erwise unauthorised users may use the Internet access data at your expense. -
Page 33: Restart
Updating the firmware Restart If the Gigaset SE680 WiMAX is not operating properly, you can reboot it. It should then be ready for use again. ì Open the Advanced Settings tab and on the Administration menu select Restart. ì Click Ok to reboot the device. -
Page 34: Status
Status Status You can check the status of your Gigaset SE680 WiMAX with the pages in the Status menu. The menu is divided into several individual pages opened by clicking the entries in the menu area. To help with orientation, in the following sections the path is placed first so that you can quickly find the status messages described. -
Page 35: Internet
If necessary, click the Refresh button to refresh the data in the status display. Internet Status > Internet The connection settings for your Gigaset SE680 WiMAX are displayed in the Internet submenu. Connection status The status of the radio connection with the WiMAX network... -
Page 36: Local Network Lan
If necessary, click the Refresh button to refresh the data in the status display. Device status Status > Device Status The device status of your Gigaset SE680 WiMAX is displayed in the Device Status sub- menu. System uptime Operating time of your Gigaset SE680 WiMAX since it was last restarted. -
Page 37: Radio Status
Radio Status submenu. Connected to a base station Indicates whether or not your Gigaset SE680 WiMAX is connected to a base station. Base station ID ID number of the base station to which the device is connected. -
Page 38: Using The Gigaset Se680 Wimax
Using the Gigaset SE680 WiMAX Using the Gigaset SE680 WiMAX When you have finished configuring your Gigaset SE680 WiMAX modem, use it to surf the Internet, send e-mails etc. As soon as you attempt to access the Internet with a PC connected to the Gigaset SE680... -
Page 39: Appendix
In the case of network problems troubleshooting may be difficult, as miscellaneous net- work parameters may be affected. This section only describes problems which are asso- ciated with the Gigaset SE680 WiMAX modem and the antenna. Symptom Possible cause and solutions No LED does light up. - Page 40 1. Check all cable connections. 2. Enter a ping command to your own computer us- ing ping 127.0.0.1, see "Checking the connec- tion to the Gigaset SE680 WiMAX" on page 42. If an error is reported, reinstall the TCP/IP network proto- col.
-
Page 41: Other Faults And Problems
Troubleshooting Other faults and problems You are using a firewall on the PC that prevents access to the Gigaset SE680 WiMAX modem Test this, if necessary, by briefly switching off the firewall. If access is possible, configure the firewall. For details, refer to the user guide for your firewall. -
Page 42: Checking The Connection To The Gigaset Se680 Wimax
If it is not possible to access the configuration pro- gam of your Gigaset SE680 WiMAX modem, check and change the settings in your Web browser. To find out how to do this, please read the next chapter. -
Page 43: Configuring The Web Browser
We recommend Microsoft Internet Explorer Version 7.0 or Mozilla Firefox 2.0 as the Web browser. Do not use an HTTP proxy for accessing your Gigaset SE680 WiMAX modem. Java and Javascript must be enabled. Popup windows must be enabled for your Gigaset SE680 WiMAX modem. -
Page 44: Allowing Javascript And Java
Select either Direct connection to the Internet or Manual proxy configuration. If you have chosen Manual proxy configuration, in the No proxy for: field, enter the IP block in which the IP address of your Gigaset SE680 WiMAX modem is found: 192.168.2.0/24 ì... -
Page 45: Allowing Pop-Up Windows
Open Internet Explorer. ì Click on Tools and then on Pop-up Blocker and choose Pop-up Blocker Settings. ì Enter the IP address of your Gigaset SE680 WiMAX modem as the Website address: 192.168.2.1 ì Click on the Add button. ì... -
Page 46: Specifications
Troubleshooting Specifications Model Gigaset SE680 WiMAX Dimensions Outdoor Modem: approx. 228.5 x 208 x 101 mm Indoor unit: approx. 140 x 65 x 36 mm Operating temperature Outdoor Modem: –40 °C to +60 °C Indoor unit: 0 °C to +40 °C... -
Page 47: Putting Into Service
WEEE Putting into service This device is intended for use in the country indicated on the device's label. The device is operated under a single licence, which is held by your service provider. Contact your service provider regarding licensing before you put the device into service. -
Page 48: The Gigaset Se680 Wimax - Free Software
WEEE The Gigaset SE680 WiMAX – Free software The modem contains, among other things, free software that was developed by third parties and is protected by copyright. The software is provided free of charge. You are authorised to use this free software in accordance with the relevant licence conditions. -
Page 49: Gsoap
WEEE OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. gSOAP "Part of the software embedded in this product is gSOAP software. Portions created by gSOAP are Copyright (C) 2001-2004 Robert A. van Engelen, Genivia inc. -
Page 50: Glossary
IP address be assigned to different network components in succession as and when required. DHCP server There is a DHCP integrated into the Gigaset SE680 WiMAX modem that automatically assigns IP addresses to PCs in the local network. - Page 51 IP address. Downlink Files that your Gigaset SE680 WiMAX modem receives and forwards to your local net- work. Digital Subscriber Line. DSL is a technique whereby data is transmitted via the conven- tional phone line.
- Page 52 Glossary File Transfer Protocol. Protocol for exchanging files via the Internet. FTP is used, for example, to make files available for download or to receive files from other users. Full duplex Data transmission operating mode in which data can be sent and received at the same time.
- Page 53 Glossary IEEE 802.16 Standard defined by the IEEE for WiMAX. Similarly to other standards in the 802 series (e.g. 802.3 Ethernet, 802.11 WLAN), the WiMAX standard is one of the standards for networks. The standard has progressed in accordance with new developments; there are currently two main versions: IEEE 802.16-2004: WiMAX, which specifies the secure location for connection part- ners.
- Page 54 Glossary Internet Service Provider. See Provider. Local Area Network, local network. A local network links network components so that they can exchange data and share resources. The physical range is restricted to a partic- ular area (a site). A local network can be connected to other local networks or a wide- area network (WAN) such as the Internet.
- Page 55 Some applications (e.g. Internet services such as HTTP or FTP) work with fixed port numbers; others are allocated a free port number whenever they need one. Port forwarding In port forwarding, the Gigaset SE680 WiMAX directs data packets from the Internet that are addressed to a particular Port to the corresponding port of the appropriate network component.
- Page 56 Glossary SMTP Simple Mail Transfer Protocol. The SMTP protocol is a TCP/IP protocol and regulates the exchange of electronic post on the Internet. Your Provider provides you with access to an SMTP server. Subnet A subnet divides a network into smaller units. Subnet mask The subnet mask determines how many parts of the IP addresses of a network represent the network number and how many parts represent the network component number.
- Page 57 Glossary Uplink Data that your Gigaset SE680 WiMAX modem forwards from your PC or local network to external sites (e.g. to the Internet). Universal Resource Locator. Globally unique address of a domain on the Internet, e.g. http://www.sagem-communications.com. Virtual server A virtual...
-
Page 58: Index
Index Index ......... Address Translation . - Page 59 Index ..... . Firefox ....Internet Explorer .
- Page 60 Index ......SMTP ....Specifications Password .
- Page 61 Index ......Web browser ....configuring .
- Page 62 Issued by Sagem Communications SAS Sagem Communications 250, route de l'Empereur - 92500 RUEIL MALMAISON Sagem Communications SAS is a trademark licensee of Gigaset Communications GmbH © Sagem Communications SAS 2009 All rights reserved. Subject to availability. Rights of modification reserved. www.sagem-communications.com A31008-N925-R101-4x-7619 08.2009...
