1995
ICG32RQ
F31
F32
COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1995 ICG32RQ and is the answer not in the manual?

Questions and answers

Related Manuals for Winnebago 1995 ICG32RQ

Summary of Contents for Winnebago 1995 ICG32RQ

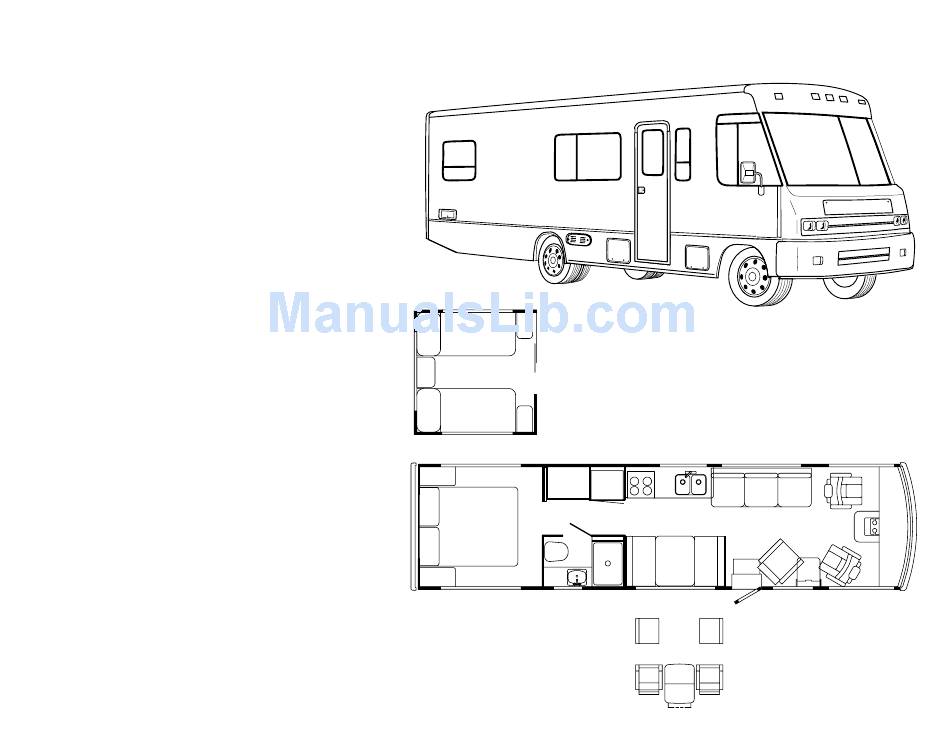

  • Page 1 1995 ICG32RQ COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 2: Accessories Group

    EA GRILLE-SPEAKER, OVAL - 4" X 6" - BLACK - MAGNADYNE G46WI 077069-02-000 EA CABLE-ANTENNA, RADIO - EXTENSION 96" - ARA 6700667 090944-01-000 EA ANTENNA-RADIO, 16" RUBBER 108847-01-000 EA BRACKET-ANTENNA GROUND 109889-04-000 EA EXTENDER-SHAFT, ANTENNA - 3" - MAGNADYNE RV71EX3 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 3 EA PLATE-DIRECTIONAL, FOR HEAD - WINEGARD #3200644 076319-01-712 EA PLATE-CEILING, WINEGARD #3200608 076319-01-704 EA BEARING-NYLON, 1.25" OD - WINEGARD #3200657 076319-01-713 EA PLATE-BASE, WINEGARD #3100523 076319-01-703 EA BEARING-NYLON, 5" OD - WINEGARD #3200656 076319-01-714 EA HOUSING, ROTATING GEAR WINEGARD 2200049 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 4: Bath Group

    EA SHOWER HEAD-W/60" HOSE, US 103092-02-000 EA SHOWER HEAD-W/HOSE, CANADIAN 011048-03-700 EA BRACKET-SHOWER HEAD, BONE 103092-01-700 EA BRACKET-SHOWER HEAD, CLEAR - 2328028 104464-02-01A EA SURROUND-SHOWER, OFF WHITE 057671-01-000 EA COVER-SCREW, #8 - PLASTIC - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 5 EA FLUSH LEVER - 340873 085330-01-710 EA PLUG-DRAIN & CAP, W/SEAL - 385316142 085330-06-701 EA VALVE-W/DIVERTER, VACUUM BREAKER - 230335 085330-06-704 EA VACUUM BREAKER KIT - 316906 085330-04-706 EA BREAKER-VACUUM, W/HAND SPRAY - 385319055 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 6: Bedroom Group

    109645-02-000 EA BRACKET-SUPPORT, FLOOR 104826-01-E10 EA SHELF-TV 111236-15-E07 EA SHELF-TV WEDGE 107796-05-000 EA BRACKET-GAS SPRING, SPDI SPD-1020 107796-06-000 EA SPRING-GAS, 20" LENGTH - 120 LB - SPDI SPD-2300-120 107796-07-000 EA BRACKET-GAS SPRING, SPDI SPD-1080 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 7: Chassis Group

    EA BUMPER PANEL-FRONT 034512-01-000 EA PIN-LOCKING, DRAWBAR 104318-02-C07 EA GRILLE ASSEMBLY-BUMPER 034513-01-000 EA PIN-HITCH, 3/16" WIRE 086140-03-000 EA SUPPORT-FRONT BUMPER, PASSENGER SIDE - 9.1" X 4" - STEEL 113589-01-000 EA CONNECTOR-PLUG, TRAILER 113589-02-000 EA CONNECTOR-SOCKET, TRAILER COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 8: Exterior Entertainment Center

    EA COMPARTMENT-POWER CORD 107717-01-000 EA COMPARTMENT-LP 109778-01-000 EA SHIELD-TANK, LP 017516-01-000 EA FLAP-MUD, 14" X 18" - BLACK 020167-05-000 EA DIRT GUARD-STEEL, 380MM LONG 065450-05-000 EA TIEDOWN-BATTERY, 8.4" TUBE 115361-01-01A EA PLUG-PLASTIC, CAPLUG NO.W5 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 9 EA SEAL-STEP, SWITCH - BLACK - LUNDELL ENTRANCE DOOR STEP COMPARTMENT KEY PART NUMBER U/M DESCRIPTION 104006-01-C05 EA LID-ENTRANCE STEP COMPARTMENT, W/O CARPET 101222-01-02A EA BRACKET-CATCH, LID - OFF WHITE 107941-01-02A EA SUPPORT-LID, ENTRANCE STEP - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 10 EA HANGER-TAILPIPE 112166-01-000 EA PIPE-EXHAUST, TAIL - FORD - REAR 112165-01-000 EA PIPE-EXHAUST, TAIL - FORD - FRONT 007125-07-000 EA CLAMP-MUFFLER, 2.50" DIAMETER 007125-05-000 EA CLAMP-MUFFLER, 2" DIAMETER 101544-06-000 EA SHIELD-HEAT, EXHAUST - STEEL COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 11 EA PIPE-FILL VENT, 90 DEGREE BEND - .625" OD - STEEL 098803-02-000 EA PIPE-FUEL FILL FROM: 00-00-00 THRU: 02-05-95 098803-01-000 EA PIPE-FUEL FILL, 90 DEGREE BEND - 13.2" - 1 3/4" OD - STEEL FROM: 02-06-95 THRU: 99-99-99 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 12: Curtain & Cushion Group

    EA WHEEL-COVER, 19.5 - FRONT & REAR - SHAG95 DICOR THE WINDOW. 109443-01-701 EA SET-BRACKET, 1 FRONT WHEEL - SHAG95-FBS DICOR 109443-01-702 EA SET-BRACKET, 1 REAR WHEEL - SHAG95-RBS DICOR 109443-01-703 EA CAP-CENTER, HUB - DICOR COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 13 EA VALANCE-BLIND, 31" SLAT - PURE SILVER 109353-04-000 EA CLIP-VALANCE SLAT MOUNTING, CLEAR PLASTIC 109041-20-02A EA BLIND-MINI, 31" X 18" DROP - BEIGE 109353-07-02A EA VALANCE-BLIND, 31" SLAT - BEIGE 109353-04-000 EA CLIP-VALANCE SLAT MOUNTING, CLEAR PLASTIC COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 14 073260-54-D36 EA TIEBACK-CURTAIN, 3" X 16" - SHOWER CURTAIN (F31) 073260-54-E01 EA TIEBACK-CURTAIN, 3" X 16" - SHOWER CURTAIN (F32) 057534-03-000 EA TIEBACK-PLASTIC, 7.5" - CLEAR 057534-01-000 EA TIEBACK/TIEDOWN-BED/CURTAIN/DOOR, 6" - PLASTIC - CLEAR COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 15 071126-54-F31 EA SKIRT-SINGLE, 10.5" - W/OPEN BACK - 6 WAY MANUAL CONTROL 071126-54-F32 EA SKIRT-SINGLE, 10.5" - W/OPEN BACK - 6 WAY MANUAL CONTROL 111169-01-000 EA BACK PLATE-ITASCA EMBLEM 111169-05-000 EA EMBLEM - "ITASCA" COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 16 EA PILLOW - 15" X 15", W/1/2" GATHERED WELT 111862-04-F32 EA PILLOW - 15" X 15", W/1/2" GATHERED WELT 111637-02-F31 EA PILLOW - 22" X 22", KNIFE EDGE - W/WELT 111637-02-F32 EA PILLOW - 22" X 22", KNIFE EDGE - W/WELT COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 17 EA BAR-SEAT BELT, 2.5" X 12.75" FROM: 11-14-94 THRU: 99-99-99 108049-02-000 EA CLIP-PEDESTAL CABLE 057759-01-000 EA WASHER BRACKET-SEAT BELT, 4" DIAMETER 007021-01-000 EA SEAT BELT - 2" X 90", BLACK 117125-01-02B EA BRACKET-CABLE HOLDER, E-COAT COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 18: Dinette Group

    EA END CAP-BOTTOM, PULL TYPE 113405-12-F32 EA SEATBOARD 097565-01-000 EA BRACKET-MOUNTING, PLEATED BLIND 097591-01-000 EA SPRING-EXTENSION, PLEATED BLIND 097593-10-000 FT CORD-BLIND, PLEATED - VANILLA (F31) 097593-02-000 FT CORD-BLIND, PLEATED - GRAY(F32) 086276-01-000 EA TAPE-DOUBLE SIDED, 1/2" COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 19 EA LEVELER-TABLE TOP, MALE END W/4 SCREWS - PLASTIC 049493-12-000 EA LEG CATCH-FLOOR MOUNTED, OFF WHITE 009050-03-000 EA LEVELER-TABLE TOP, FEMALE END W/2 SCREWS - PLASTIC 049493-11-700 EA LEG CATCH-FLOOR MOUNTED, 2.5" X 2.7" - METAL - E-COAT COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 20: Drivers Compartment Group

    EA SUNVISOR ASSEMBLY 007211-01-000 EA HINGE-SUNVISOR, 25.5" X 1.5" - METAL 074012-01-000 EA CLIP-SUNVISOR, SQUARE - PINCH ON 116093-01-02A EA BRACKET-SUNVISOR, W/ROD - RH - BLACK 116093-02-02A EA BRACKET-SUNVISOR, W/ROD - LH - BLACK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 21 EA BULB - 12V NO.74 0. 12A WEDGE GE 22 - 25 OR EQUIVALENT 111904-01-000 EA INDICATOR-TRANSMISSION 105615-01-000 FT FILM-PROTECTIVE, CLEAR 103603-01-000 EA BULB - 12V NO.74 0. 12A WEDGE GE 22 - 25 OR EQUIVALENT 077539-01-000 EA BRACKET-MOUNTING, DASH PANEL - L/SHAPED COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 22: Electrical Group

    EA LENS-TAIL LIGHT, RED - BARGMAN 30-84-010 081638-01-701 EA LENS-TAIL LIGHT, W/BACKUP - BARGMAN 30-84-700 111102-03-000 EA LENS-MARKER LAMP, RED - TRIPLEX 117R 037934-01-000 EA BULB-BACK UP & TURN SIGNAL, #1156 037935-01-000 EA BULB-BRAKE LIGHT, #2057 OR #1157 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 23 EA HOUSING-SOCKET, 3 CAVITY - AMP 1-480701-0 088474-10-000 EA HOUSING-SOCKET, 2 CAVITY - AMP 1-480699-0 103608-01-000 EA SOCKET-WEDGE BASE W/LEADS JKL 2944-6 OR EQUIVILANT 103987-02-000 EA SEAL-SOLENOID ACCESS 098262-01-000 EA SEAL-CONNECTOR, WEATHER PACK - PACKARD 12010293 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 24 EA MONITOR-SOLAR CHARGER NAGY IL-1W 108303-01-000 EA WIRE ASSEMBLY-REAR AUTO HEATER 111915-01-000 EA WIRE ASSEMBLY-DAY RUN LAMPS, FUSE - CHEVY 111915-03-000 EA WIRE ASSEMBLY-DAY RUN LAMPS, FUSE - FORD 073328-B4-000 EA CABLE ASSEMBLY-BATTERY, W/TERMINALS COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 25: Exterior Body Group

    EA SIDEWALL-LEFT, W/TWIN BEDS/DRIVER DOOR 086180-55-001 EA U-CHANNEL-EXTRUDED, 1.7" X 16' - OFF WHITE M05145-06-E30 EA CAP ASSEMBLY-FRONT, W/LIGHTS - OFF WHITE 115042-01-01A EA CAP ASSEMBLY-FRONT, W/O LIGHTS - OFF WHITE 103801-02-01A EA TRIM-ROOF, OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 26 EA MIRROR ASM - DRIVER SIDE 110782-01-000 EA ANGLE - SUPPORT - HEADLAMP 106015-01-703 EA MIRROR KIT (BEZEL W/MIRRORS) PASSENGER SIDE 110691-01-01A EA BRACKET-SPRING - HEADLAMP - MILL 106015-02-702 EA MIRROR KIT (BEZEL W/MIRRORS) DRIVER SIDE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 27 FT FILM - 38.1 MM, TROPICAL BLUE 107385-02-05A FT FILM - 50.8 MM, MEDIUM TITANIUM 111303-02-01A EA DECAL-LOGO, "ITASCA, BY WINNEBAGO IND." - TROPICAL BLUE/OFF WHITE/TROPICAL BLUE 107385-02-06A FT FILM - 50.8 MM, LIGHT RUTILE 111303-03-01A EA DECAL-LOGO, "ITASCA, BY WINNEBAGO IND." - TROPICAL BLUE DUPONT PAINT COLORS &...
  • Page 28 U/M DESCRIPTION 102953-11-F31 EA LADDER ASSEMBLY 067165-01-000 EA MOUNTING BRACKET-LADDER, LOWER 076980-02-000 EA END CAP-STEP, BLACK 000G39-06-10T EA SCREW-SF/DR, 6-20 X 5/8 PPH - BLACK 000G68-10-36T EA SCREW - 10-12 X 2.25 POH - BLACK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 29 EA UPPER BRACE ASSEMBLY-COMPLETE, 50" 249159C 116059-01-714 EA LOCKING KNOB-BLACK 249105C 116059-01-717 EA LOCK PIN-HANDLE 040279C 116059-01-715 EA DOOR ROLLER 060063C 116059-01-716 EA NUTSERT TOOL KIT 905007C 111037-02-01A EA SPACER-AWNING, UPPER - BLACK 111038-01-01A EA SPACER-AWNING, LOWER - BLACK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 30: Galley Group

    EA SINK-STAINLESS STEEL, DOUBLE - LARGE/SMALL BASIN 092303-01-000 EA STRAINER-SINK 098335-02-F31 EA RAIL-GALLEY CABINET 098335-02-F32 EA RAIL-GALLEY CABINET M07474-02-F31 EA GALLEY CABINET, W/O DOORS OR DRAWERS M07474-02-F32 EA GALLEY CABINET, W/O DOORS OR DRAWERS COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 31 61705222 104137-06-715 EA SPARK/SENSE ELECTRODE, SINGLE 61692222 104137-08-01A EA LIGHT KIT-REFRIGERATOR, 6182 - NORCOLD 61771022 054450-01-000 EA LEVEL-REFRIGERATOR 065225-02-000 EA PLATE-TIEDOWN, REFRIGERATOR 093646-01-000 EA BRACKET-TIEDOWN, REFRIGERATOR - RH 093646-02-000 EA BRACKET-TIEDOWN, REFRIGERATOR - LH COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 32: Generator Group

    KEY PART NUMBER U/M DESCRIPTION 102765-04-01A EA PANEL-MONITOR, W/PLUG - FOR 2 TANKS & WATER HEATER - LVS 075470-01-703 EA SWITCH-ON/MOMENTARY, JENSEN AND VENTLINE 096983-01-700 EA SWITCH-ON/OFF, VENTLINE 108 102765-04-700 EA CIRCUIT BOARD, LVS 5076-11 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 33 EA REGISTER-HEAT/A/C, ROUND W/O DAMPER - 4" - PLASTIC - OFF WHITE 093614-02-01A EA GRILLE-RETURN AIR, BROWN 098668-06-000 EA DOOR-ACCESS, FURNACE - OFF WHITE - SUBURBAN 520574 009198-01-000 FT DUCT-HEAT, FLEXIBLE - 4" ID X 25 FT 009200-01-000 EA TAPE-FURNACE, 1 1/2" COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 34 EA SPRING-SCREW, ROOF A/C GASKET - COLEMAN 6757-150 108889-02-702 EA CAPACITOR-START 1497-0891 105620-01-705 EA PROTECTOR-OVERLOAD, RH & LH - COLEMAN 6759-3791 108889-01-713 EA SUCTION LINE - 3/8" OD X .032" WALL 6792-130 108889-01-714 EA DISCHARGE LINE ASSEMBLY 6792-531 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 35 EA START CAPACITOR 1497-0881 108889-01-704 EA OVERLOAD-MRA #98693 6749-3541 108889-01-712 EA SUCTION LINE REDUCER - 3/8 X 1/2 1215-2161 108889-01-713 EA SUCTION LINE - 3/8 OD X .032 WALL 6792-130 108889-01-714 EA DISCHARGE LINE ASSEMBLY 6792-531 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 36 103930-21-700 EA HOSE ASSEMBLY - #6, FORD 085-0139 103930-21-701 EA HOSE ASSEMBLY - #10, FORD 085-0149 110279-01-703 EA HOSE-VENT, MOTOR BLOWER - SCS 051-0034 110279-01-712 EA FITTING-HEATER 050-0076 113245-01-707 EA GASKET - #8 045-0126 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 37: Interior Finish Group

    EA HOSE-VENT, MOTOR BLOWER - SCS 051-0034 077840-01-E07 EA MOLDING-CAP, WALL 110279-01-712 EA HEATER FITTING 050-0076 078323-06-E10 EA MOLDING-CAP, WALL 113245-01-707 EA GASKET - #8 045-0126 100182-10-E30 EA TRIM-RAIL 024990-05-000 EA OUTLET-W/SWIVEL DEFLECTORS, 4" DIAMETER 105709-01-000 FT T-MOLDING-1", MODERN IVORY COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 38 EA CLOCK-WALL, 11" DIAMETER - BOLDEN 9988 114031-13-000 EA SLIDE-DRAWER, 18" - CABINET - LEFT SIDE 112515-02-05A EA PICTURE-DECOR, LANDSCAPE 203SC - THOU ART - 16" X 20" 114031-21-000 EA SLIDE-DRAWER, 22" - CABINET - LEFT SIDE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 39: Cabinet Hardware

    EA CATCH-SINGLE ROLLER 110943-01-000 FT FELTSTRIP-ADHESIVE, 3/8" X 50FT 049176-01-000 EA HEDLOCK II - 3/4 DIAMETER, SCREW MOUNT - ALL W/RADIUS DOOR 083125-07-000 EA BRACE-COUCH, OFF WHITE 083125-05-000 EA BRACE-ANGLE, COUCH - 2.5" - BEIGE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 40: Labels Group

    EA LABEL-WARNING, LPG - CANADIAN KEY PART NUMBER U/M DESCRIPTION 040944-01-000 EA LABEL-ENTRANCE DOOR, “OPEN” KEY PART NUMBER U/M DESCRIPTION 050225-01-000 EA LABEL-WARNING, STOVE VENT - US 050222-01-000 EA LABEL-WARNING, STOVE VENT - CANADIAN COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 41 006040-01-000 EA TAG-GAS REFUELING WARNING 006040-02-000 EA TAG-GAS REFUELING WARNING - CANADIAN KEY PART NUMBER U/M DESCRIPTION 107571-01-000 EA LABEL-EXIT/ESCAPE WINDOW 039290-01-000 EA LABEL-EXIT WARNING KEY PART NUMBER U/M DESCRIPTION 077510-01-000 EA LABEL-GENERATOR PREP COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 42 EA LABEL-WASTE WATER 111537-04-000 EA LABEL-FUSES 111104-01-000 EA LABEL-HITCH, READ MANUAL 094675-01-000 EA LABEL-EXTERIOR LIGHT, SERVICE 098379-04-000 EA LABEL-ELECTRICAL BOX, SIDE 111802-01-000 EA LABEL-CFC WARNING 112518-01-000 EA LABEL-HANG TAG, CO DETECTOR 068383-01-000 EA LABEL-DIESEL FUEL, GM----557005 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 43: Lounge Group

    EA ELBOW-BRASS, 90 DEGREE - 3/8"F X 1/2"FPT 103613-01-000 EA DETECTOR-LP GAS 113542-11-02B EA MOUNT ASM-LP TANK, E-COAT 010252-01-000 EA ELBOW-BRASS, 90 DEGREE - 3/8 F X 1/2 MPT 010377-02-000 EA NUT-BRASS, 3/8" FLARE - FORGED COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 44: Front Overhead Cabinet-Passenger Side

    EA DOOR-CABINET, W/O HARDWARE - EXPORT 103128-01-E10 EA END CAP-CABINET, OVERHEAD 103128-09-F31 EA END CAP-CABINET, OVERHEAD M05993-13-E30 EA DOOR-CABINET, W/O HARDWARE M06839-02-F31 EA CABINET-OVERHEAD, LOUNGE - W/O DOORS OR HARDWARE M06839-02-F32 EA CABINET-OVERHEAD, LOUNGE - W/O DOORS OR HARDWARE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 45: Sealants & Fasteners Group

    EA BOLT-COLLARED HANGER, 8-32 X 1" 086285-01-000 EA SPACER-NYLON, .5" OD X .257" ID 051387-05-000 EA BOLT-CARRIAGE, W/O HOLE - 5/16-18 X 8.5 - ZINC 051387-06-000 EA BOLT-CARRIAGE, W/O HOLE - 5/16-18 X 9.5 - ZINC COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 46 EA SCREW-SF/DR, 10-16 X 3/4 PPH - FLUOROCARBON SILVER 000G39-10-12R EA SCREW-SF/DR, 10-16 X 3/4 PPH - BEIGE 000G39-10-12D EA SCREW-SF/DR, 10-16 X 3/4 PPH - BLACK 000G39-10-12B EA SCREW-SF/DR, 10-16 X .75 PPH - ZINC COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 47: Water & Sewage Group

    051393-01-726 EA SOLENOID VALVE AND BRACKET, 93870 - WHITE ROGERS 051391-04-706 EA TANK-INNER, FRONT MOUNT - ATWOOD 91642 052009-01-000 EA DOOR-WATER HEATER, OFF WHITE - ATWOOD 5576-27 051391-01-717 EA GRILLE ONLY-WATER HEATER DOOR 92640 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 48: Drainage System

    010051-01-000 EA ELBOW - 45 DEGREE BEND, 1 1/2" SPIGOT AND HUB - PLASTIC - BLACK 010115-01-000 EA COUPLING - 1 1/2" HUB X HUB, PLASTIC 104352-01-000 EA TANK-HOLDING, BLACK WATER - 50 GALLON COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 49 EA CONNECTOR - 1/4" OD X 3/8" MPT 103259-01-000 EA BRACKET-BYPASS, WATER HEATER 110438-01-000 EA VALVE-CHECK, BRASS G784 WATER PURIFICATION SYSTEM KEY PART NUMBER U/M DESCRIPTION 701069-01-000 EA WATER PURIFICATION SYSTEM 9252 701069-03-700 EA CARTRIDGE-WATER FILTER, AC - EVERPURE 9601-11 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 50 FROM: 00-00-00 THRU: 01-01-95 117053-03-F31 EA WINDOW-ENTRANCE DOOR FROM: 01-02-95 THRU: 99-99-99 113733-01-01A EA WINDOW-ENTRANCE DOOR, THERMO 098647-23-01A EA WINDOW-SLIDER, OFF-WHITE 112795-16-01A EA WINDOW-SLIDER, THERMO INSULATED 113500-01-01A EA WINDOW-DOUBLE TIPOUT 112795-21-01A EA WINDOW-SLIDER, THERMO INSULATED COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 51 EA SCREEN-W/SPRING & WEATHERSTRIP 112795-01-700 EA LATCH ASSEMBLY - BLACK 112795-01-701 FT SLIDE-STOP 112795-01-702 FT FILLER PLUG 112795-01-703 FT RUN CHANNEL 112795-01-704 FT VINYL-GLAZING 112795-21-700 EA WINDOW-W/O TRIM 112795-21-701 EA GLASS-STATIONARY 112795-21-702 EA GLASS-SLIDING, W/SASH & LATCH COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 52 FT RUN CHANNEL 112795-01-702 FT FILLER PLUG 112795-01-704 FT VINYL-GLAZING 112795-01-703 FT RUN CHANNEL 112795-15-701 EA GLASS-STATIONARY 112795-01-704 FT VINYL-GLAZING 112795-15-702 EA GLASS-SLIDING, W/SASH & LATCH 112795-15-701 EA GLASS-STATIONARY 112795-15-702 EA GLASS-SLIDING, W/SASH & LATCH COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 53 EA GLASS-SLIDING, W/SASH & LATCH - PASSENGER 103658-01-702 EA GLASS-STATIONARY, BOTTOM 098644-01-700 EA REPAIR KIT-LATCH, BLACK 103658-07-701 EA STATIONARY GLASS-TOP, DRIVER OR PASSENGER 098644-01-706 FT WEATHERSTRIP-GLASS 098644-01-708 FT CHANNEL-RUN, PIERCED - GLASS 098644-01-716 FT PLUG-FILLER COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 54 FT SEAL-GLASS, EXTERIOR - .5" WIDE - VINYL - BLACK ENTRY DOOR WINDOW - THERMO KEY PART NUMBER U/M DESCRIPTION 113733-01-01A EA WINDOW-ENTRY DOOR, THERMO - W/O INSIDE FRAME 113733-01-700 EA WINDOW-W/O TRIM 113733-01-701 EA TRIM 113733-01-702 EA GLASS-STATIONARY COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 55 EA MOTOR-ROOF VENT, 1/8 SHAFT - 12V - JENSEN 048649-01-000 EA FAN-ROOF VENT, 6 BLADES - 6" - JENSEN 110051-01-704 EA SCREEN & FRAME - 4" 29-688-03 110051-01-703 EA CRANK HANDLE-ROOF VENT, JENSEN RP-1031-B COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 56 111017-01-F31 EA DOOR-STORAGE/EXTERIOR RADIO 111009-01-E30 EA DOOR-LP COMPARTMENT, 16.9" X 5.4" - ALUMINUM 111013-20-E30 EA DOOR-STORAGE 111013-19-E30 EA DOOR-STORAGE 081240-11-000 EA DOOR-WATER FILL, LOCKABLE W/O LOCK - 4" X 4 5/8" - OFF WHITE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 57 FT LATCH-ROTARY, 248-081311 106469-01-714 FT LATCH ROD ASSEMBLY-HORIZONTAL, 203-081015 106469-02-702 EA GLASS-STATIONARY, 106-041104 106469-01-719 EA RAIL-MULLION , V103-84 106469-01-705 FT RUN-CHANNEL, 122-010850 106469-01-709 FT WEATHERSTRIP-FUZZY, 171-040630 106469-01-706 FT FASTNER-ROD END, 130-040593 106469-02-700 EA JAMB-DRIVER DOOR, V108-30L COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 58 EA SWITCH-PUSH BUTTON, IN DOOR JAMB - METAL CHROME 108897-01-01A EA GARNISH-DOOR, DRIVERS - U CHANNEL - BLACK 109378-01-000 EA STRAP-CHECK, DRIVERS DOOR - BLACK 109235-01-01A FT COVER-SCREW, MAT BLACK - DAWN 132-081046 109235-01-03A FT COVER-SCREW, OFF WHITE - DAWN COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 59 EA CASE-LOCK, A = 17 MM - 702375 110506-53-005 EA CASE-LOCK, A = 25 MM - 702385 110506-59-006 EA KEYS-SET OF TWO, 596726 110506-52-006 EA CASE-LOCK, A = 17 MM - 702376 110506-53-006 EA CASE-LOCK, A = 25 MM - 702386 COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 60: Entrance Door

    EA CATCH-DOOR HOLDER, RETAINER - OFF WHITE 104099-01-01A EA CATCH-DOOR HOLDER, STRIKE - OFF WHITE 009126-02-000 EA HANDLE-ASSIST, ENTRANCE DOOR - BLACK 093673-01-01A FT TRIM-ENTRANCE DOOR, 1.4" WIDE X 8' LONG- OFF WHITE PLASTIC COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.

  • Page 61: Windshield & Wiper Group

    EA GROMMET-SNAP, 3/16" ID - 3/8" HOLE - PLASTIC - BLACK 067193-05-000 EA TOOL KIT-GROMMET INSTALLATION 067193-05-000 EA TOOL KIT-GROMMET INSTALLATION 110742-01-000 EA GASKET-WIPER 110742-01-000 EA GASKET-WIPER 067188-01-000 EA STUD-WIPER CRANK 067188-01-000 EA STUD-WIPER CRANK COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
  • Page 62 103107-03-01A EA TRIM-WINDSHIELD, PASSENGER SIDE - BLACK 103788-01-000 EA GLASS-WINDSHIELD, PASSENGER SIDE 098788-06-000 EA CARRIER-REVEAL, 48.9" - WINDSHIELD 077922-03-000 EA HEADER WINDSHIELD-END, PASSENGER SIDE 077922-05-000 EA HEADER WINDSHIELD-CENTER 077922-04-000 EA HEADER WINDSHIELD-END, DRIVER SIDE COPYRIGHT © 2004 WINNEBAGO INDUSTRIES INC.
