Neumann.Berlin M 147 Tube Operating Instructions Manual

Neumann.Berlin M 147 Tube Operating Instructions Manual

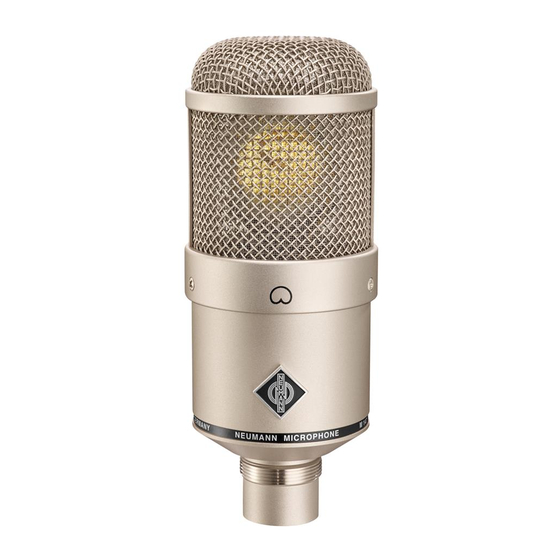

Studio condenser microphone
Hide thumbs Also See for M 147 Tube:

Advertisement

Quick Links

Bedienungsanleitung
Operating Instructions
M 147 Tube
georg neumann gmbh · ollenhauerstr. 98 · 13403 berlin · germany
tel +49 (0)30 / 41 77 24-0 · fax -50 · headoffice@neumann.com · www.neumann.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M 147 Tube and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Neumann.Berlin M 147 Tube

  • Page 1 Bedienungsanleitung Operating Instructions M 147 Tube georg neumann gmbh · ollenhauerstr. 98 · 13403 berlin · germany tel +49 (0)30 / 41 77 24-0 · fax -50 · headoffice@neumann.com · www.neumann.com...
  • Page 2: Table Of Contents

    Zubehör Accessories Kurzbeschreibung Description Das Kondensatormikrofon M 147 Tube ist ein Groß- The M 147 Tube is a large diaphragm studio con- membran-Studiomikrofon mit der Richtcharakte- denser microphone with a capsule with cardioid ristik Niere. polar pattern. Als Eingangsstufe wird eine Röhre verwendet, um...
  • Page 3: Das Kondensatormikrofon M 147 Tube

    The M 147 Tube has a typical studio microphone’s unterdrückt. sensitivity of approx. 20 mV/Pa. Internally, the tube Das M 147 Tube liefert mit ca. 20 mV/Pa einen für amplifi es the capsule signal by 10 dB approx. Thus, Studiomikrofone üblichen Ausgangspegel. Dies the sound of the M 147 Tube is exclusively deter- resultiert aus der Verstärkung des Kapselsignals...
  • Page 4 In contrast to conventional tube mi- nutzbar. Im Gegensatz zu herkömmlichen Röhren- crophones the high output current of the M 147 Tube mikrofonen sind aufgrund der hohen Ausgangs- allows cable lengths of up to 300 m without risking stromkapazität Kabellängen bis zu insgesamt 300 m...
  • Page 5: Inbetriebnahme

    The M 147 Tube must only be operated with the Das M 147 Tube darf nur mit den Neumann-Speisege- Neumann power supplies N 149, N 149 A or N 149 V. räten N 149, N 149 A oder N 149 V betrieben werden.
  • Page 6: Ausführungsform Und Beschaltung Des Mikrofon- Und Netzgeräteausganges

    Power Supply Outputs M 147 Tube (EU) ..ni ..Best.-Nr. 008435 M 147 Tube (EU) ..ni ..Cat. No. 008435 M 147 Tube (US) ..ni ..Best.-Nr. 008434 M 147 Tube (US) ..ni ..Cat. No. 008434 M 147 Tube (UK) ..
  • Page 7: Netzgerät

    M 147 Tube Kabel nicht hervorgerufen. Daher sind für die Mo- Thus, the audio signal cable can have a length of dulation Kabellängen bis etwa 300 m erlaubt. Das up to approx. 300 m, the 8-core connecting cable 8-polige Kabel zwischen Mikrofon und Netzgerät darf between the microphone and the power supply unit dabei bis etwa 100 m lang sein.
  • Page 8: Technische Daten

    Technische Daten Technical Specifi cations Akust. Arbeitsweise ..Druckgradientenempfänger Acoustical op. principle .....Pressure gradient transducer Richtcharakteristik ........Niere Polar pattern .......... cardioid Übertragungsbereich ....20 Hz...20 kHz Frequency range ......20 Hz...20 kHz Feldübertragungs- faktor ..........20 mV/Pa Sensitivity .......... 20 mV/Pa Nennimpedanz ........50 Ohm Rated impedance ........50 ohms Nennabschlussimpedanz ......1000 Ohm Rated load impedance ......1000 ohms...
  • Page 9: Frequenzgänge Und Polardiagramme

    M 147 Tube Frequenzgänge und Polardiagramm Frequency Responses and Polar Pattern gemessen im freien Schallfeld nach IEC 60268-4 measured in free-fi eld conditions (IEC 60268-4)
  • Page 10: Einige Hinweise Zur Pfl Ege Von Mikrofonen

    Einige Hinweise zur Pfl ege von Hints on Microphone Maintenance Mikrofonen Staubschutz verwenden: Mikrofone, die nicht im Ein- Use a dust cover: Microphones not in use should satz sind, sollte man nicht auf dem Stativ einstauben not be left on the stand gathering dust. This can lassen.
  • Page 11: Zubehör

    M 147 Tube Zubehör Accessories Elastische Aufhängung Elastic Suspension Um mechanische Erschütterung fernzuhalten, emp- The use of an elastic suspension is recommended fi ehlt sich die Verwendung einer elastischen Mikro- to prevent the microphone from being exposed to fonaufhängung. strong mechanical vibrations caused by structure borne shock waves.
  • Page 12 MF 5 ..... gr ....Best.-Nr. 08489 MF 5 ..... gr ....Cat. No. 08489 Der Mikrofonfuß MF 5 hat eine graue Soft-Touch Pul- Floor stand with grey soft-touch powder coating. verbeschichtung und steht gleitfest und trittschall- It has a non-skid sound-absorbing rubber disk at- dämmend auf einem Gummiring.
  • Page 13 M 147 Tube IC 3 mt KT 8 N 149 A EA 1 (mt) SG 2 DS 120 MF 5 MNV 87 (mt) MF 4 PS 15 PS 20 a WS 87...
  • Page 14 STV...
  • Page 15 M 147 Tube...
  • Page 16 Limitation of Liability Declaration of Conformity Georg Neumann GmbH shall not be liable for consequences of an inappro- Georg Neumann GmbH hereby declares that this device conforms to the priate use of the product not being in compliance with the technical allow- applicable CE standards and regulations.
