DelRay Hotshot DHS Installation Operation & Maintenance

Gas fireplace insert

Advertisement

Quick Links

Warning:
Improper installation, adjustment, altera-
tion, service or maintenance can cause
injury or property damage. Refer to this
manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.

What To Do If You Smell Gas:

Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.

For Your Safety:

Do not store or use gaso-
line or other flammable
vapors and liquids in the
vicinity of this or any other
appliance.

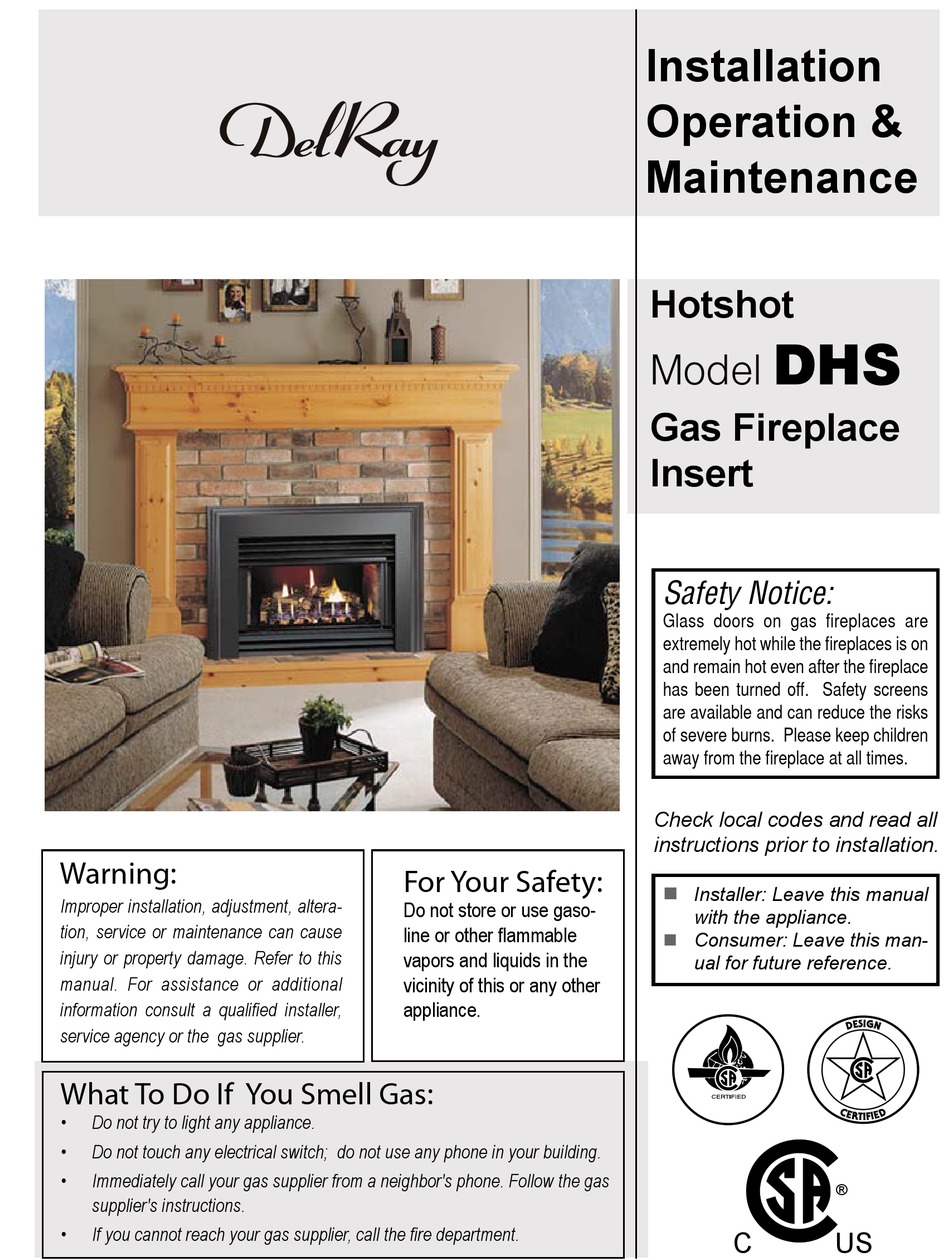

Installation
Operation &
Maintenance
Hotshot
DHS
Model
Gas Fireplace
Insert

Safety Notice:

Glass doors on gas fireplaces are
extremely hot while the fireplaces is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
C
®
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hotshot DHS and is the answer not in the manual?

Questions and answers

Summary of Contents for DelRay Hotshot DHS

  • Page 1: Safety Notice

    Installation Operation & Maintenance Hotshot Model Gas Fireplace Insert Safety Notice: Glass doors on gas fireplaces are extremely hot while the fireplaces is on and remain hot even after the fireplace has been turned off. Safety screens are available and can reduce the risks of severe burns.
  • Page 2: Table Of Contents

    Lower Louvre Assembly ........6 Warranty and Installation Information: Face Plate Trim ..........6 The DelRay warranty will be voided by, and DelRay disclaims any Upper Louvre Assembly ........6 responsibility for, the following actions: Wiring for the Air Circulating Fan ........7  Modification of the fireplace and/or components including Direct-...
  • Page 3: Installation

    Hotshot Gas Fireplace Insert Installation Installing The Gas Line Before You Begin The gas line must be installed before finishing the Hotshot fireplace Ensure that your masonry fireplace's opening is large enough to ac- insert. For ease of installation, this appliance is equipped with an ap- comodate the Hotshot.
  • Page 4: Chimney Liner Installation

    Hotshot Gas Fireplace Insert Installation Chimney Liner Installation This appliance is for installation with 4" diameter Type-B gas vent (B- Vent) or double wall aluminum flex liner. Install flex liner or B-Vent inside the masonry chimney all the way  to the top of the chimney cap.
  • Page 5: Installing The Hood

    Hotshot Gas Fireplace Insert Installation Installing the Face Plate, Trim Installing the Hood and Louvres For proper operation of your fireplace, this hood must be installed. Step 1. Install the Face Plate  Line the hood up against the two threaded holes located just ...
  • Page 6: Lower Louvre Assembly

    Hotshot Gas Fireplace Insert Installation Step 2. Install the Lower Louvre Assembly  3b. Installation Slide the face plate trim onto the fireplace. The trim should slide in Position the Lower Louvre Assembly as shown in Figure 7. easily between the face plate and the lower louvres and the hood. Line up the screw holes on the hinge with the pilot holes on the Refer to figure 8b.
  • Page 7: Wiring For The Air Circulating Fan

    Hotshot Gas Fireplace Insert Installation Removing and Installing Wiring for the Air Circulating Fan the Door The Hotshot features a heat-activated fan for circulating warm air into the living space. The fan is factory installed, and no installation work Removing the door: is required.
  • Page 8: Installing The Logset

    Hotshot Gas Fireplace Insert Installation Installing the Log Set Installing the Logs: Center logs Back log The double burner Hotshot is supplied with a six (6) piece fibre log Right log set. Unpack the logs and handle them very carefully. Left log Remove the door cover and the glass door.
  • Page 9: Lighting Instructions

    Hotshot Gas Fireplace Insert Operation - Model DHS For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. ...
  • Page 10: Operation

    Hotshot Gas Fireplace Insert Operation Maintenance Lighting Instructions CAUTIONS Fireplace gas control must be in the “OFF” position and pilot  See page 9. and main burners extinguished when cleaning appliance with On/Off Switch a vacuum. The On/ Off Switch is located on the top right-hand side of the Hot- Doors and logs can get very hot.
  • Page 11: Gas Control Valve

    Hotshot Gas Fireplace Insert Maintenance Gas Control Valve Troubleshooting The following is a troubleshooting chart of possible problems: PROBLEM CORRECTIVE ACTION Noisy Pilot Flame Locate pilot adjustement screw on gas control valve. The flame is decreased by turning adjustment screw clock- wise.
  • Page 12: Warranty

    The duration of any implied warranty with respect to this DelRay Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you.
  • Page 13 Hotshot Gas Fireplace Insert Appendix A - State of Massachusetts Amendment (Gas Fireplace / Equipment sold in the State of Massachusetts) 5.08: Modifications to NFPA-54, Chapter 10 (1) Revise NFPA-54 section 10.5.4.2 by adding a second exception as follows: Existing chimneys shall be permitted to have their use continued when a gas conversion burner is installed, and shall be equipped with a manually reset device that will automatically shut off the gas to the burner in the event of a sustained back-draft (2) Revise 10.8.3 by adding the following additional requirements:...
  • Page 14 XG0511 - 120507 Montigo Del Ray Corp. Canadian Heating Products Inc. Ferndale, WA 98248 Langley, BC V4W 4A1...
