4-2 Elektra power supply for Calypso

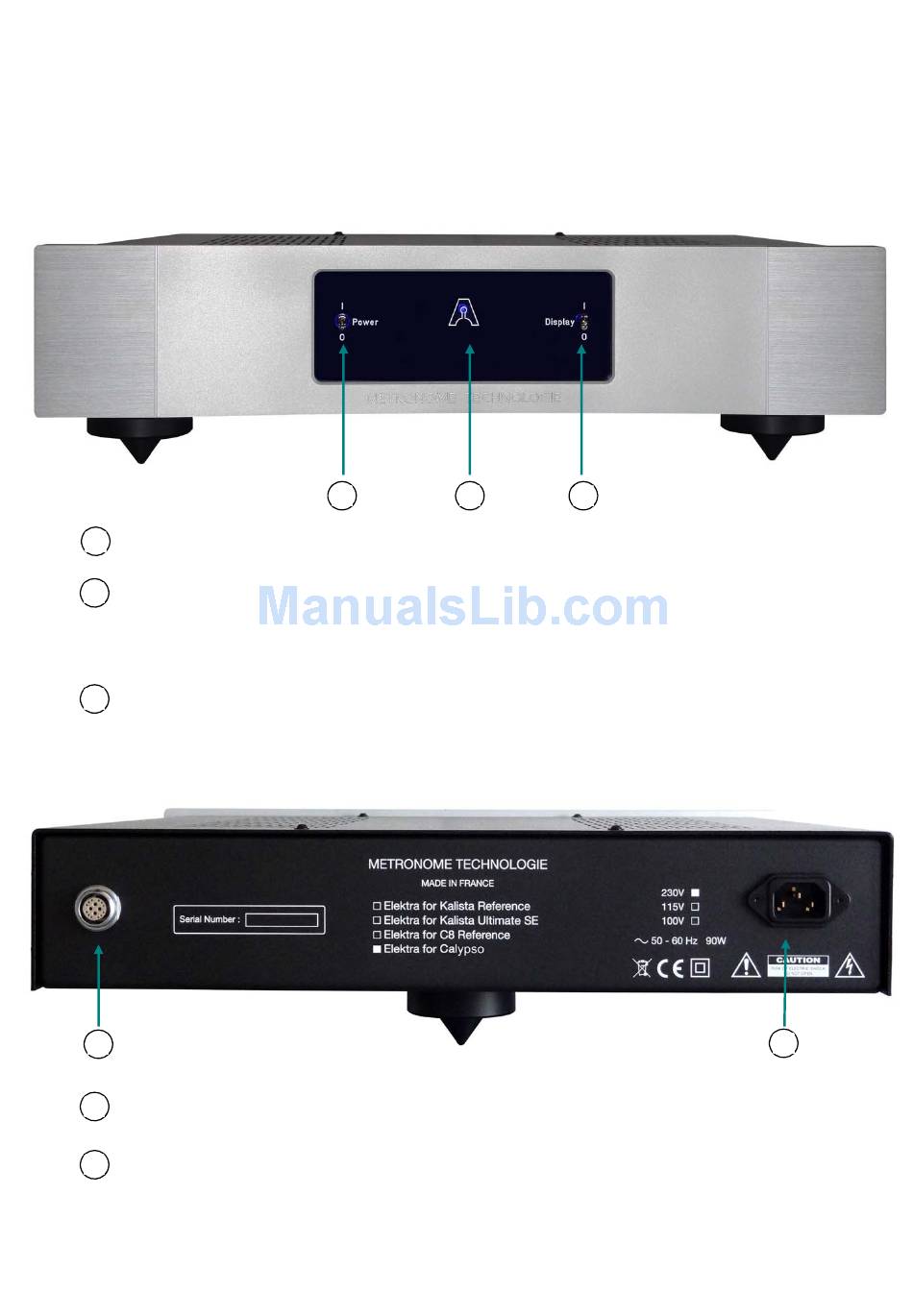

4-2-1 Front Panel Layout :

1 Main switch : "on / off" main power switch for the power supply
2
Blue Led : Immediately after activated the main current with the switch on the front
face of power supply, this led will blinks during approximately 15 seconds. Once all
regulations stabilized , this led keeps alight.
Display switch: * up : Calypso's display is ON, * Down : Calypso's display is OFF.
3

4-2-2 Rear Panel Layout :

4
Power Supply Connector: To connect the Elektra power supply to the Calypso
4
CD Transport (Very High Quality 16 wires cable & connector).
5
Power entry connector to plug the power, fuse compartment is into the chassis, to
change fuses if broken you must to unscrew the 8 screws of the top cover.
1 2
