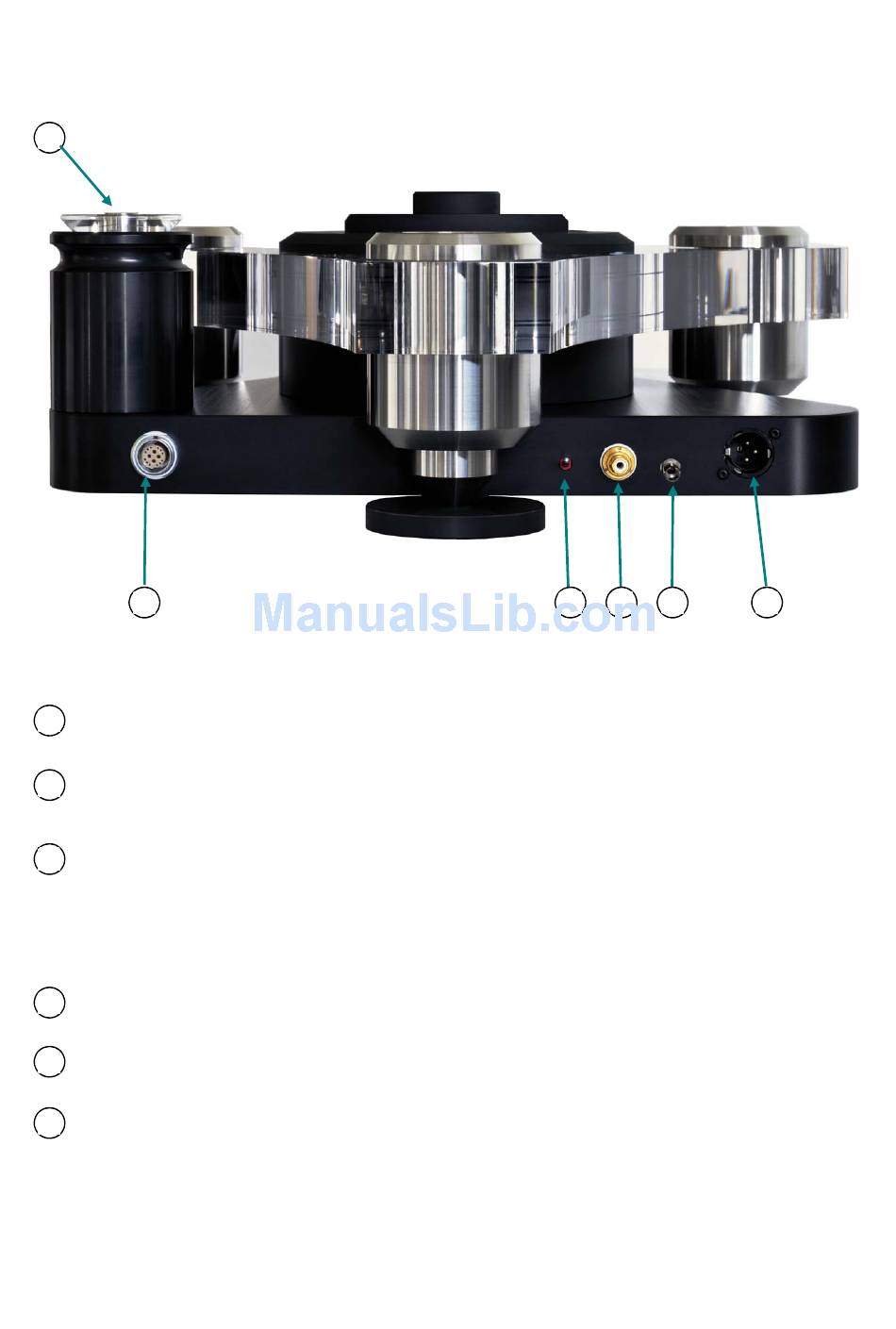

4-3-2 Rear Panel Layout :

12
13
12
Clamp holder: You MUST uses it to put the clamp when the casket is present.
Power Supply connector: To connect the Elektra power supply with the Calypso CD
13
Transport (16 wires cable).
14
Switch 44,1/96Khz: To choose the frequency of the digital signal built by the up
sampler circuit present on the PCB into the Calypso CD Transport.
By using the switch you have 2 values available: 44,1 KHz in down position and 96
KHz in up position.
15
RCA S/PDIF: S/PDIF digital output * ( WBT Professional connector quality )
16
OPTICAL: OPTICAL digital output * ( High quality Metal plug )
17
AES/EBU: AES/EBU digital output *
* Note: all outputs marked by a star need to go to an external converter
14
