smart
flap
installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Flap and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Petporte Smart Flap

Summary of Contents for Petporte Smart Flap

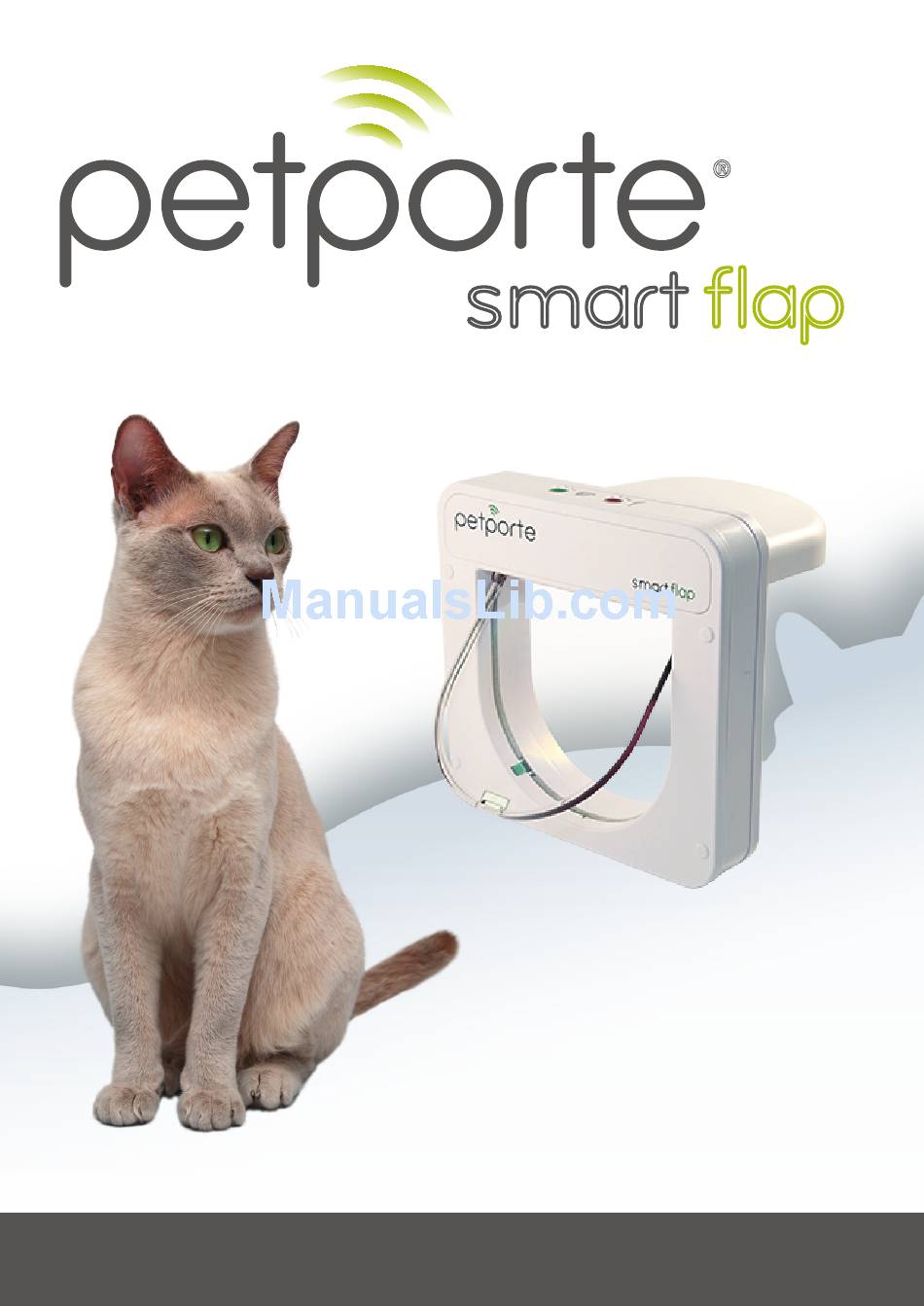

  • Page 1 ® smart flap installation guide...
  • Page 2 Smart Flap. Occasionally microchips migrate to positions within the cat that the scanner cannot read reliably. In these cases the Smart Flap can only be used as a cat flap without the selective entry (or exit if purchased).
  • Page 3 Power Supply Your Smart Flap is supplied with a low voltage power supply that has a 2.5m electrical cable. If your nearest power point is more than 2.2m away then you will require an extension cable which is available to purchase online at www.petporte.com...
  • Page 4 The Smart Flap is designed to fit into the most common cat flap opening i.e. 212 mm diameter or 169 mm by 169mm. If an existing opening in your door or wall is greater than 212 mm diameter if circular or 169 mm by 169 mm if rectangular then it is ok to fit the Smart Flap, providing the indoor and outdoor part cover the opening.
  • Page 5 SMART FLAP INSTALLATION INTO A WALL It is also possible to install a Smart Flap into a wall. You must only fit a wall model to a wall because it has specialist features to enable this.
  • Page 6 Installation Guide - Page 5 smart flap INSTALLATION DIAGRAMS Figure 3 Figure 4 Attaching the four “horseshoe” clips to the four Remove the extension tunnel from the interior “mushrooms” on the underside of the porch. section. Loosen the four self tapping screws from the interior section and remove the large cover plate.
  • Page 7 Tighten the screws to hold the Smart Flap in the of the screw covers, four small ones for the self tapping and desired position within the opening. two large ones for the M6. Finally power up your Smart Flap.
  • Page 8 Pet Porte Ltd. Unit 2, Homefield Rue de L’Epinel Forest Guernsey GY8 0HL Channel Islands Tel. +44 (0) 1481 265359 Email: sales@petporte.com www.petporte.com...
