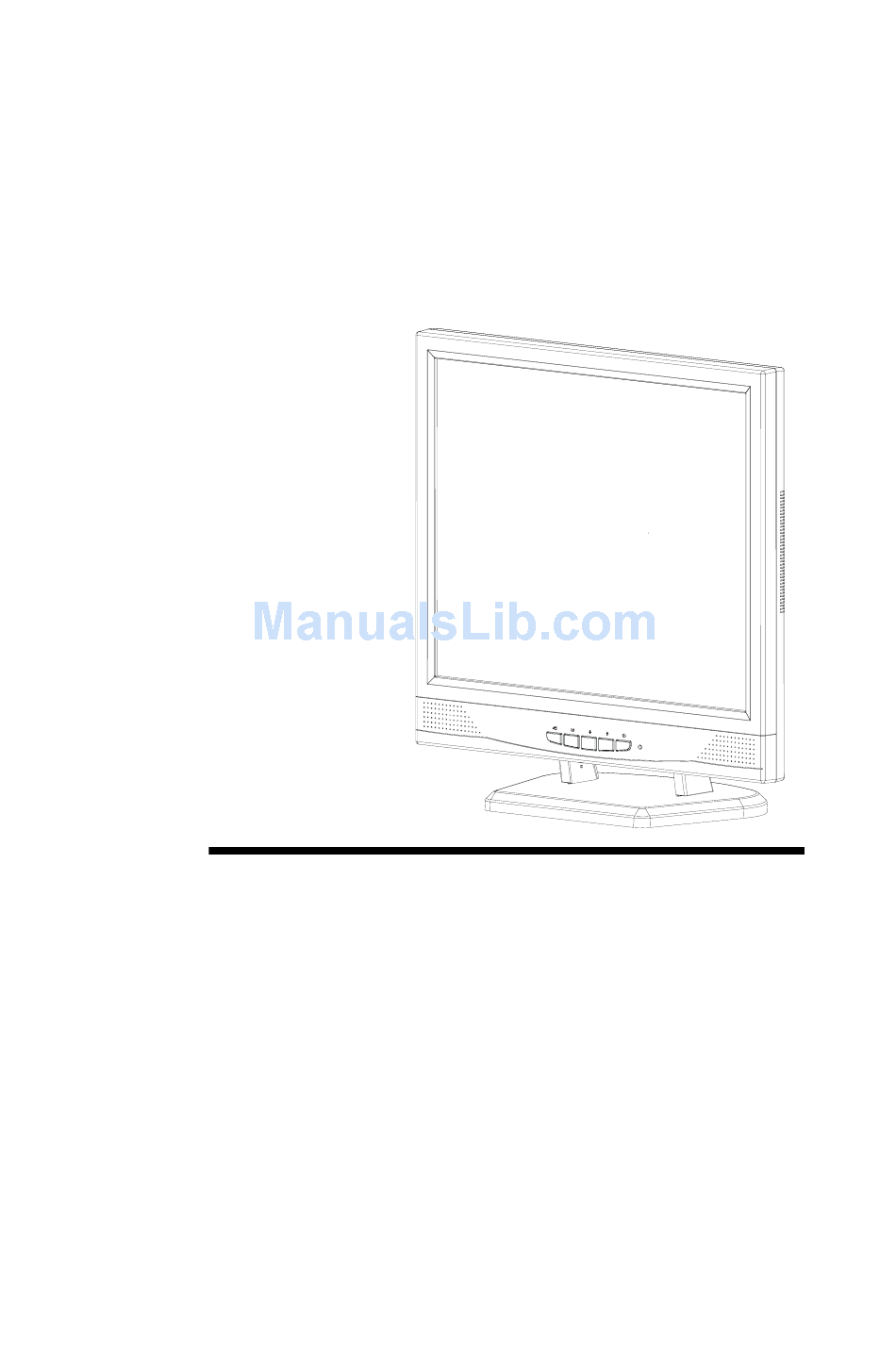

Page 1: Instruction Manual
TFT-LCD Monitor INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. Document Number : 20060222-10A Part Number : 000-00000-000 Version : V1.0... -
Page 2: Warning
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"... -
Page 3: Fcc Compliance Statement
FCC Compliance Statement Information to the user: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Important Safeguards
Important Safeguards 1. READ INSTRUCTIONS -- All the safety 9. POWER SOURCES -- Video monitor or and operating instructions should be equipment should be operated only from read before the appliance is operated. the type of power source indicated on the marking label. - Page 5 Important Safeguards 16. LIGHTNING -- For added protection for 21. SAFETY CHECK -- Upon completion of video monitor or equipment during a any service or repairs to this video lightning storm, or when it is left product, ask the service technician to unattended and unused for long periods perform safety checks to determine that of time, unplug it from the wall outlet and...
-
Page 6: Installation Guide
Installation Guide Accessory All of the accessories have been tested and qualified. Do not use any non-qualified accessories with this LCD monitor. Please check all accessories before installation LCD monitor. LCD monitor x 1 AC power cord x 1 VGA Cable x 1... -
Page 7: Table Of Contents
Contents …………………………………………………… Warning …………………………………… FCC Compliance Statement ………………………………………… Important Safeguards ……………………………………………… Installation Guide …………………………………………………… Contents ……………………………………………… Quick installation …………………………………………………… Features ………………………………………… Resolution Support …………………………………… Operating Instructions Controls ………………………………………… Backside Connections ……………………………………………… OSD Architecture ……………………………………………… A. General Setup ……………………………………………… B. Video Setup ………………………………………………... -
Page 8: Quick Installation
Quick Installation For instructions on wall mounting or rack mounting, see page 16 of this user guide. Connect power cord Connect video cable • Make sure both the LCD display and computer are turned OFF • Connect the video cable from the LCD display to the computer. Turn ON LCD display and computer •... -
Page 9: Features
Features General 1280 x RGB x 1024 TFT LCD Panel. Advance control OSD menu. High brightness. High contrast. 1 analog RGB signal input. Compatible with SXGA (1280 x 1024) resolution. Support vertical refresh rate up to 75 Hz for VESA standard specification. Automatic detection or manual configuration of optimal refresh and synchronization rates for VGA and composite signals. -
Page 10: Resolution Support
Resolution Support VGA resolution table Resolution Symbol H Freq. V Freq. Pixel Remark 640 x 480 640-60 31.469 59.941 25.175 VESA 640 x 480 640-72 37.861 72.810 31.500 VESA 640 x 480 640-75 37.500 75.000 31.500 VESA 800 x 600 800-56 35.156 56.250... -
Page 11: Operating Instructions Controls
Operating Instructions - Controls Power Monitor ON /OFF. If switched OFF with this button, monitor will be in standby state. Light indicate: Green – Power On Yellow – Standby mode. Red – Power Off Adjust UP Select item above. Adjust Down Select item below. -
Page 12: Backside Connections
Backside Connections ○ PC-AUDIO: Audio signal input for VGA and DVI channel. ○ AUDIO 1: Audio signal input 1 for CVBS1 and S-Video. Normally, RED is for right channel; WHITE is for left channel. ○ AUDIO 2: Audio signal input 1 for CVBS2. Normally, RED is for right channel;... -
Page 13: Osd Architecture
OSD Architecture General Setup Power on default: Set the signal input priority at power ON. CVBS1: Set channel to AV1 when power is turned ON. CVBS2: Set channel to AV2 when power is turned ON. S-Video: Set channel to S-Video when power is turned ON. VGA: Set channel to VGA when power is turned ON. -
Page 14: Video Setup
OSD Architecture Video Setup Brightness: Adjusts the overall picture shade and brightness. Use the Brightness to make details in the dark areas of the picture just visible, and Contrast to “brighten” the picture without causing noses and foreheads of people to turn white. Contrast: Permits adjustment for contrast between light or dark areas of the picture. -
Page 15: Vga Setup
OSD Architecture VGA Setup Input sync. auto: This feature all user to auto-optimize displaying picture under VGA mode. Brightness: Adjusts the overall picture shade and brightness. Use the Brightness to make details in the dark areas of the picture just visible, and Contrast to “brighten”... -
Page 16: Mounting Guide
Installation Guide Desktop With the monitor on a flat surface, hold the base at one side with one hand and draw the screen upwards with the other hand, until the required tilt angle is achieved. Click! A noticeable "click" will be heard, and felt, as the screen is moved into the normal range of tilt.(For detailed range, see image below) Do not touch the display area of... -
Page 17: Vesa Bracket
Installation Guide VESA Bracket Holding the front of the base with one hand, use the other hand to push the top of the casing back, until it lies flat. Do not insert fingers onto the hinge area, otherwise injury may occur when folding down the screen. -
Page 18: Rack Mount Bracket
Installation Guide Rack Mount Bracket Remove the desk mount bracket as detailed in the previous section. Fix the rack mount brackets to the two sides of the monitor as shown below. Use the supplied M3 screws to mount the monitor to the brackets. -
Page 19: Typical Connection Device
Typical Connection Device - 19 -... -
Page 20: Specification
Specification 17" 19” Pixel Type Normal white Normal white Max. Resolution 1280 x RGB x 1024 1280 x RGB x 1024 Aspect Ratio 640 x 480 @ 60/72/75Hz 640 x 480 @ 60/72/75 Hz 800 x 600 @ 56/60/72/75 Hz 800 x 600 @ 56/60/72/75 Hz Resolution / Scan for VGA / DVI 1024 x 768 @ 60/70/75 Hz... -
Page 21: Appendixes
Problem: No image Make sure power button is ON. Check whether the LCD monitor and computer or video devices power cords are plugged in and that there is a supply of power. Problem: No signal Check the signal connection between the computer and LCD monitor. - Page 22 Use OSD “Color” function to adjust color setting. Use OSD “Hue” function to adjust color setting. Problem: Can not adjust LCD monitor with buttons in the front. Check OSD “Key lock” function is ON. Problem: Video can not see all pictures on screen Use OSD “Scan mode”...
-
Page 23: Memo
Memo - 23 -...
