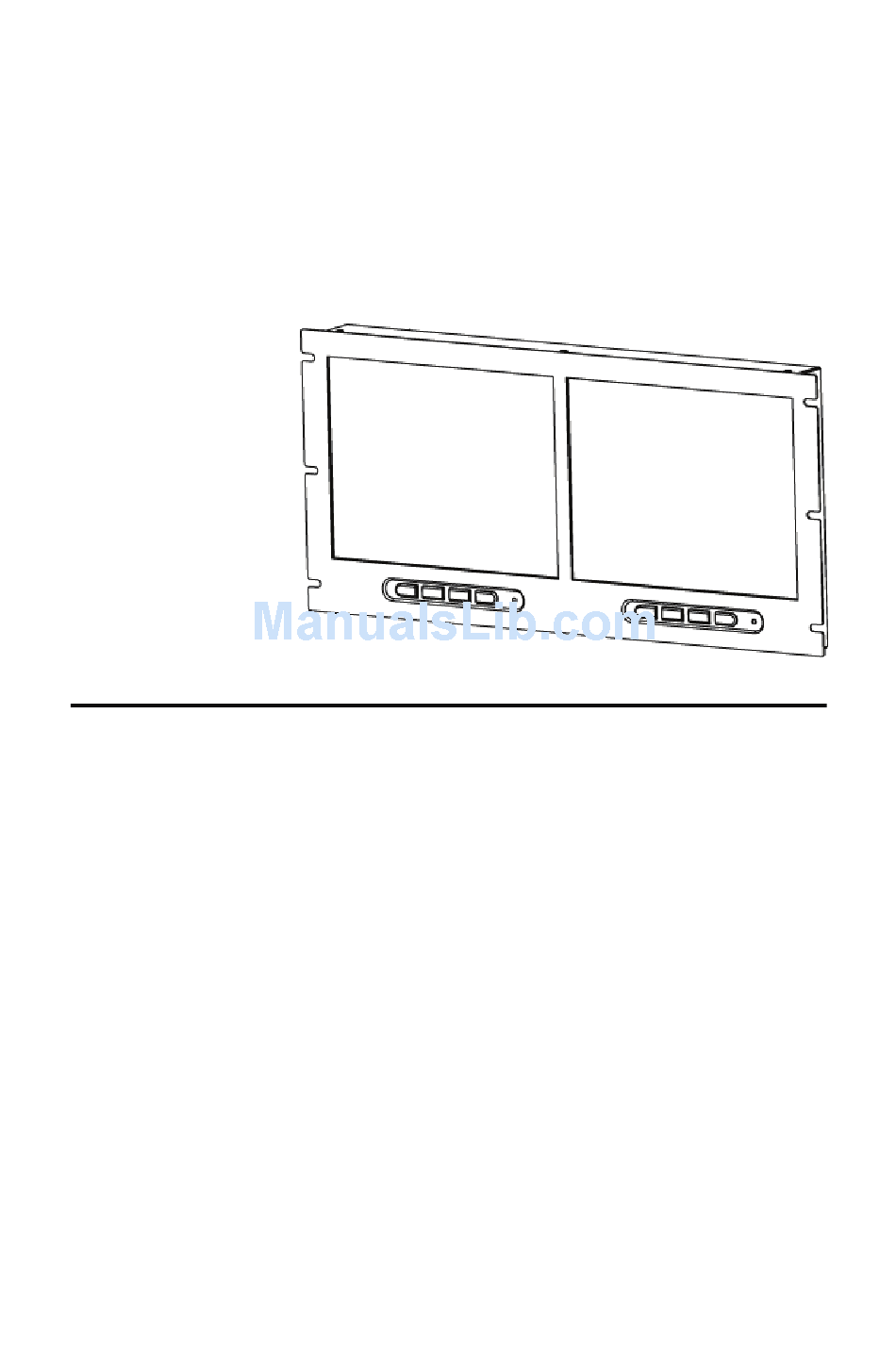

- Page 1 10.4” Dual Rack Mount TFT-LCD Monitor INSTRUCTION MANUAL Please read this manual thoroughly before use. Keep it handy for future reference. Document Number: V531-LB100-001 Mar, 2008...
-
Page 2: Warning
* * * WARNING * * * This equipment has been tested and found to comply with the Class A digital device‚ pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Precaution
Precautions Safety Installation Should any liquid or solid object fall into Do not install the unit in an extremely hot the cabinet, unplug the unit and have it or humid place or in a place subject to checked by the qualified personnel before excessive dust or mechanical vibration. -
Page 4: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. -
Page 5: Important Safeguards
Important Safeguards 1. READ INSTRUCTIONS -- All the 8. POWER SOURCES – The Video safety and operating instructions monitor or equipment should be should be read before the appliance is operated only from the type of power operated. source indicated on the marking label. If you are not sure of the type of power 2. - Page 6 Important Safeguards 14. OBJECT AND LIQUID ENTRY -- 17. SAFETY CHECK -- Upon completion Never push objects of any kind into of any service or repairs to this video video monitor or equipment through product, ask the service technician to openings as they may touch perform safety checks to determine dangerous voltage points or short-out...
-
Page 7: Installation Guide
Installation Guide Accessory All of the accessories have been tested and qualified. Do not use any non-qualified accessories with this LCD monitor. Please check all accessories before installation LCD monitor. For USA: AC power cord x 1 10.4” LCD monitor x 2 For EU and UK: European AC power cord x 1 AC Adaptor x 1... -
Page 8: Table Of Contents
Contents …………………………………………………… Warning …………………………………………………… Precaution …………………………………… FCC Compliance Statement ………………………………………… Important Safeguards ……………………………………………… Installation Guide …………………………………………………… Contents ……………………………………………… Quick installation …………………………………………………… Features ………………………………………… Resolution Support …………………………………… Operating Instructions Controls ……………………………………………… Rear Connections ……………………………………………… OSD Architecture ..…………………………………………… A. OSD Tree CVBS ..……………………………………………... -
Page 9: Quick Installation
Quick Installation when using with a PC For instructions on rack mounting, see page 18 of this user guide. Connect power cord Connect video cable • Make sure both the LCD display and computer are turned OFF • Connect the video cable from the LCD display to the computer. Turn ON LCD display and computer •... -
Page 10: Features
Features General 10.4” (800 x RGB x 600) TFT LCD Panel. Advanced control OSD menu. Brightness of 220 cd/m² High contrast of 400 : 1 1 analog RGB signal input. Compatible with SVGA (800 x 600) resolution. Support vertical refresh rate up to 75 Hz for VESA standard specification. Automatic or manual optimum detection of separate sync and composite sync of VGA signal. -
Page 11: Resolution Support
Resolution Support VGA resolution table Resolution Symbol H Freq. V Freq. Pixel Remark 640 x 480 640-60 31.469 59.941 25.175 VESA 640 x 480 640-72 37.861 72.810 31.500 VESA 640 x 480 640-75 37.500 75.000 31.500 VESA 800 x 600 800-56 35.156 56.250... -
Page 12: Operating Instructions Controls
Operating Instructions Control Power Monitor ON / OFF. At OFF mode, monitor will be in standby status. Light indicates: Green – Power On Red – Standby mode. No light – Power Off MENU Press to enter OSD menu. When OSD menu is active, press to accept current item or exit menu. Adjust UP When OSD menu is active, select the item above or increment the current value. -
Page 13: Rear Connections
Backside Connections DC POWER IN: DC12V power input. ○ RIGHT MONITOR CVBS2 IN: composite video signal input for ○ CVBS2 channel. RIGHT MONITOR CVBS2 OUT: Video auto termination loop-out for ○ CVBS2 IN signal. Auto termination impedances are 75 Ohms. RIGHT MONITOR CVBS1 IN: composite video signal input for ○... -
Page 16: Osd Architecture
OSD Architecture CVBS Setup MAIN MENU BRIGHTNESS / CONTRAST COLOR LANGUAGE SOURCE POWER ON DEFAULT FACTORY DEFAULT BACK SOURCE: This feature allows a user to select the video input signal to be displayed. FACTORY DEFAULT: Sets monitor to the original factory setting. BRIGHTNESS/CONTRAST BRIGHTNESS CONTRAST... -
Page 17: Cvbs Setup
OSD Architecture CVBS Setup SOURCE CVBS1 CVBS2 CVBS1: Set channel source to CVBS1. CVBS2: Set channel source to CVBS2. PC: Set channel source to PC. POWER ON DEFAULT CVBS1 CVBS2 OFF: Turn off this function. CVBS1: Display the signal output from CVBS1 when powered on. CVBS2: Display the signal output from CVBS2 when powered on. -
Page 18: Pc Setup
OSD Architecture PC Setup MAIN MENU BRIGHTNESS/CONTRAST DISPLAY COLOR TEMPERATURE LANGUAGE SOURCE POWER ON DEFAULT FACTORY DEFAULT BACK SOURCE: This feature allows a user to select the video input signal to be displayed. FACTORY DEFAULT: Set monitor to the original factory setting. BRIGHTNESS/CONTRAST BRIGHTNESS CONTRAST... - Page 19 OSD Architecture PC Setup COLOR TEMPERATURE 9300K 6500K USER-CLOCK BACK Color temperature: Select color temperature of 9300°K, 6500°K or User. SOURCE CVBS1 CVBS2 CVBS1: Set channel source to CVBS1. CVBS2: Set channel source to CVBS2. PC: Set channel source to PC. POWER ON DEFAULT CVBS1 CVBS2...
-
Page 20: Mounting Guide
Mounting Guide Rack Mounting Place the monitor into the rack and line up the 3 mounting guides on each side of the monitor with appropriate holes in the rack. Insert and tighten the rack mounting screws. Use screws applicable to the rack system in use. Failure to observe this may result in serious injury. -
Page 21: Typical Device Connections
Typical Device Connections - 21 -... -
Page 23: Specification
Specification LCD Size 10.4" Pixel Type Normal white Max. Resolution 800 x RGB x 600 Aspect Ratio 640 x 480 @ 60/72/75 Resolution / Scan for VGA 800 x 600 @ 56/60/72/75 Viewing Area (H) x (V) Pixel Pitch 0.264 x 0.264 mm Brightness 220 cd/m2 Contrast Ratio... -
Page 24: Appendixes
Appendixes Check the information in this section to see if the problems can be solved before requesting repair: The consumers are only allowed to solve the problems described as below. Any unauthorized product modification, or failure to follow instructions supplied with the product will void the warranty immediately. - Page 25 Appendixes Problem: Uneven color or color too dark Use OSD “Color” function to adjust color setting. Problem: White color is not white Check “Color temperature” is correct. Use OSD “Color” function to adjust color setting. Use OSD “Hue” function to adjust color setting. Problem: Can not adjust LCD monitor with buttons in the front.
-
Page 26: Memo
Memo - 26 -...
