Summary of Contents for AudioBahn ACX693

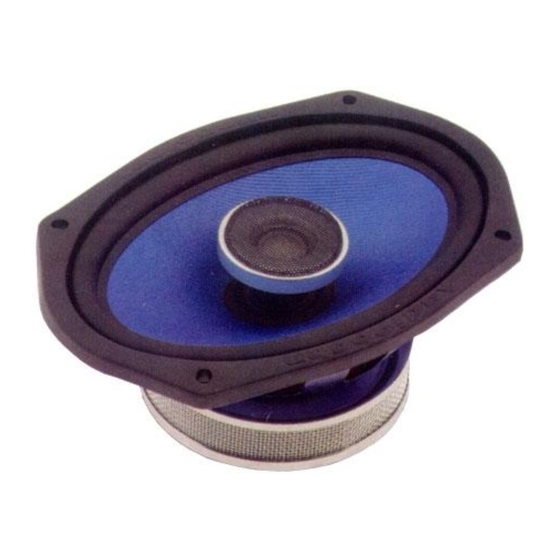

- Page 1 ACX FULL RANGE SPEAKERS ACX693 ACX692 ACX682 ACX680P ACX653 ACX652 ACX552 ACX402 ACX412 ACX462 ACX460P ACX352...
- Page 2 With four levels of play, one is right for you to get started in the Audiobahn family. Our Technical Department and entire staff look to strive above and beyond the rest of the pack by going that extra mile to help you out.
-
Page 3: Table Of Contents
Other information can be located by using the table of contents. We at Audiobahn Inc. have worked very hard to make sure that all of the information in this manual is current, but, as we are costantly finding new ways to improve our product, this information is subject to change without notice. -
Page 4: Introduction
Congratulations on your purchase of the worlds finest brand of car audio products. Here at Audiobahn Inc. we are devoted to making our musical reproduction the very best, and we are pleased you have chosen our product. Through years of engineering expertise, hand craftsmanship, and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. -
Page 5: Features And Specifications
2 Layer High-Temp ASV Voice Coil 4-Ohm Impeadence Outboard 2-way 12dB switchable crossover Complete with Mounting Hardware Specifications Power Handling ACX693: 225 Watts RMS / 550 ACH Power Magnet Weight ACX693: 40 oz. ACX692: 175 Watts RMS / 350 ACH Power ACX692: 40 oz. - Page 6 Mounting...
- Page 7 Mounting...
-
Page 8: Choosing A Location
Audiobahn AS series speakers are designed to fit into almost any factory location. Again, if at all possible it is recommended that you use a factory location. This applies mostly to later model vehicles. For those earlier models that do not have factory locations or are limited to front locations, it is recommended that you choose an are with sufficient airspace. -
Page 9: Installation
Installation Note: Audiobahn Strongly recommends that you operate your system at low volumes prior to the completed installation of your Audiobahn speakers. This will allow a test of the speaker before securing it to its permanent location. Caution: Make sure that all speaker wiring is fully protected from cuts, tears and possible wear. All short circuits developing as a result could severely damage the source unit or possibly the amplifier as well as the speakers themselves. -
Page 10: Wiring
Wiring Wiring Audiobahn recommends using at least 18-gauge wire with your new speaker system. Thinner gauge wire may easily be severed and can cause damage to your system should any bare wires come in contact with the vehicles chassis. Makes sure that your audio system is off while installing and connecting your new Audiobahn Speakers. -
Page 11: Securing The Speaker
Securing the Speaker Securing the Speaker Once you have tested your system and confirmed that it is operating properly, turn off your system and prepare for the final mounting of the speakers. 1) Position the speaker into the mounting hole and confirm the correct mounting location and hole placement. -
Page 12: Troubleshooting
Troubleshooting In the event that your Audiobahn speakers appear to require service we ask that you first do a little trouble shooting to determine if the problem is actually the speaker, or a problem located in a different part of the vehicle such as the amplifier, wiring, fusing or possibly the source unit. -
Page 13: Warning And Disclaimer
Using a fuse of different type or rating may result in damage to this system which is not covered by the warranty. Disclaimer Specifications are subject to change with out notice. For the most updated Specifications call Audiobahn, your local Authorized Audiobahn Dealer, or check the Audiobahn website. www.audiobahninc.com... -
Page 14: Warranty
You must receive prior authorization and an RA# before sending in any complete enclosure). Audiobahn will only replace L.E.D.(s) found to be defective at the time of purchase. Audiobahn warranties do not cover the following: Any product not purchased from an Authorized Audiobahn Dealer (including Internet... -
Page 15: Contact Information
Dealer look at the product to confirm the source of the problem. Any product found to have a manufacturer defect will be replaced with a new piece of the same or similar model, or repaired at the discretion of Audiobahn. Any product found to have no manufacturer defect will be returned to the sender at their cost.
