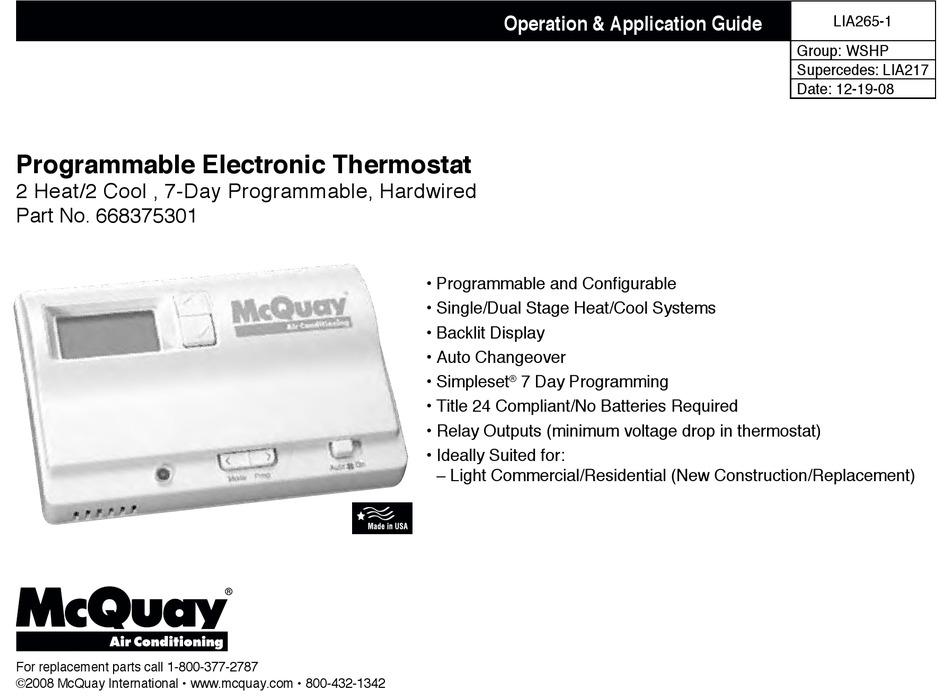

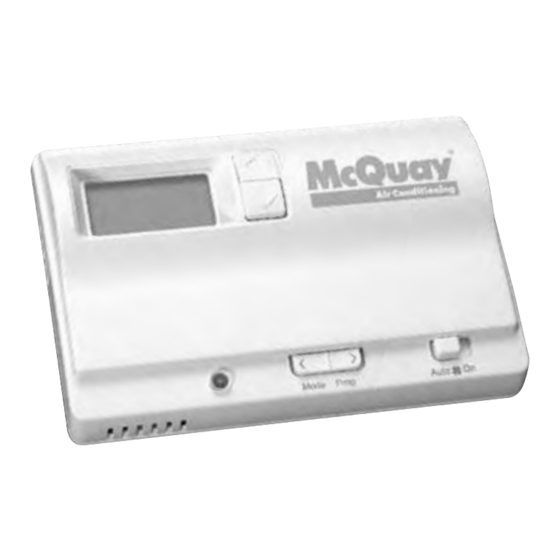

Programmable Electronic Thermostat
2 Heat/2 Cool, 7-Day Programmable, Hardwired
Part No. 668375301
For replacement parts call 1-800-377-2787
©2008 McQuay International • www.mcquay.com • 800-432-1342
Installation, Operation & Application Guide
• Programmable and Configurable
• Single/Dual Stage Heat/Cool Systems
• Backlit Display
• Auto Changeover
• Simpleset
7 Day Programming
®
• Title 24 Compliant/No Batteries Required
• Relay Outputs (minimum voltage drop in thermostat)
• Ideally Suited for:
– Light Commercial/Residential (New Construction/Replacement)
LIA265-1
Group: WSHP
Supercedes: LIA217
Date: 12-19-08
