Kettler DINING TABLE 2610 User Manual

2610 36" x 72" DINING TABLE
Contents:
(4) Legs
(2) Side Braces
(2) Table feet
(1) Table Top

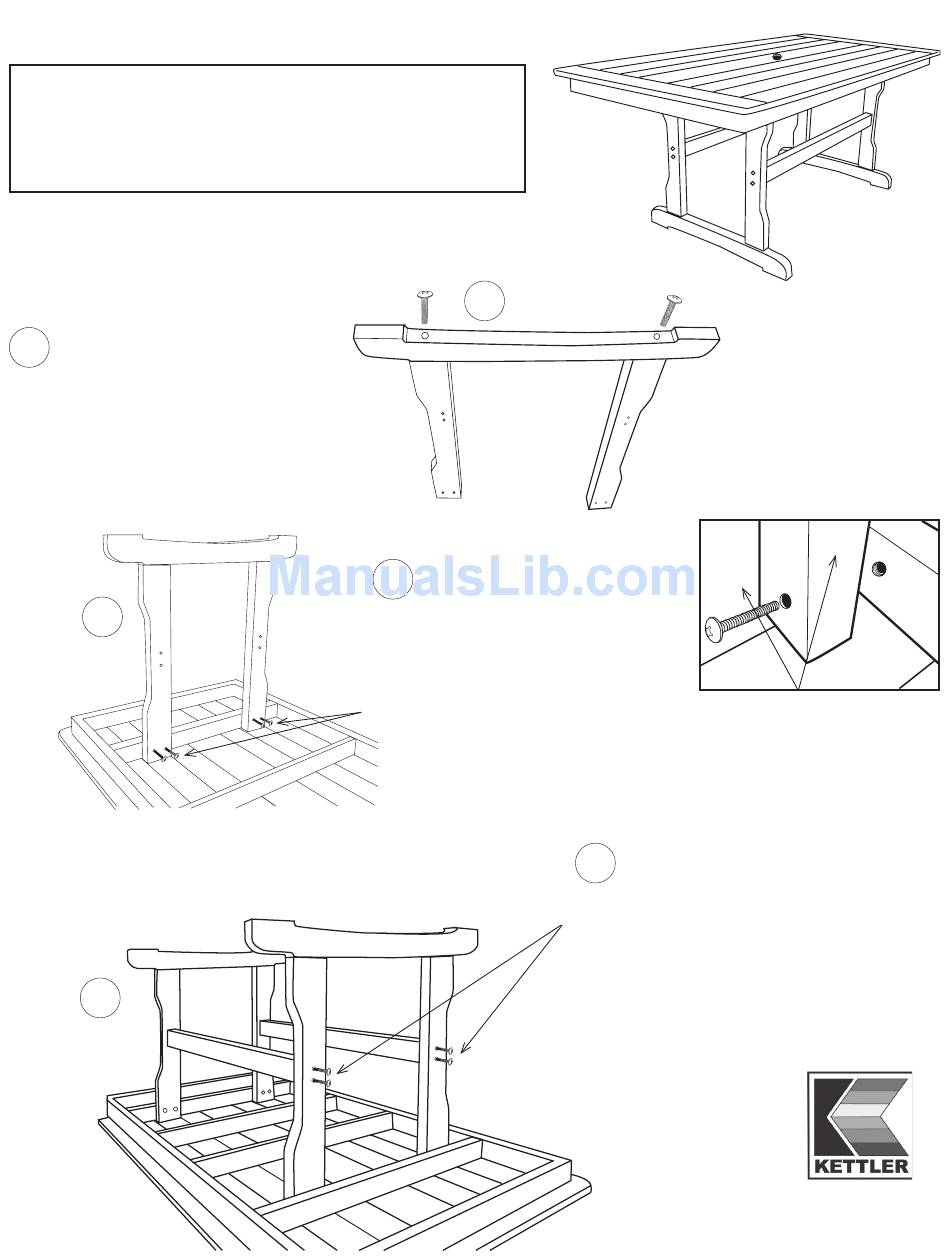

Assembly Instructions
1.
With the curved side facing out
align the table leg with the predrilled hole
on the foot of the table and insert a 1/4 -
20 x 3" bolt then tighten with the phillips
screwdriver.
Repeat on the other end, do both sets.
2.
3.
©
Kettler USA 309.01
Copyright
(16) 1/4 - 20 x 2 1/2" Bolts
(4) 1/4 - 20 x 3" Bolts
Tool Required:
#3 Phillips Head Screwdriver
2.
Place the leg with foot
inside the frame underneath the
tabletop. Align the predrilled
holes, insert two 14 - 20 x 2 1/2"
bolts then tighten them with the
phillips screwdriver.
Repeat on the other leg, do both sides.
1.
3.
Place the side support braces
vertically between the legs aligning the
predrilled holes. Insert two 1/4-20 x 2 1/2"
bolts thru the hole into the center brace then
tighten them with the phillips screwdriver.
Repeat on the other brace, do both sides.
Align the predrilled holes on the leg
with the metal insert on the frame,
insert the bolt.
Made in the U.S.A.
www.kettlerusa.com
