  • Page 1 BTHS500 Bluetooth ® Wireless Headset...

  • Page 2: What's In The Box

    What’s in the box? Bluetooth Headset 2 x Ear hooks A/C pow adapter erent size Ear buds Owner's manual (Small, Medium, Large)

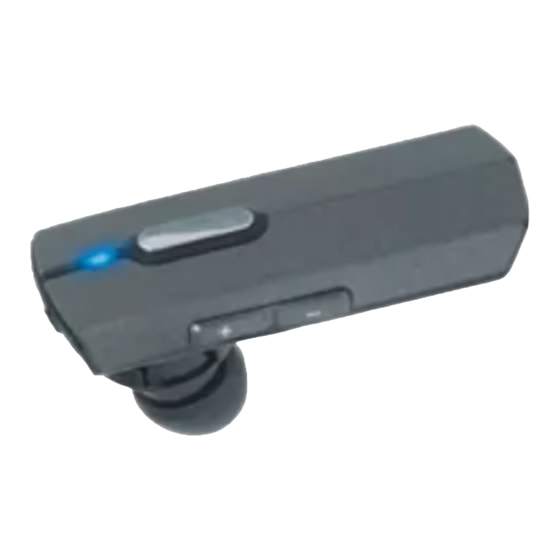

  • Page 3 Getting to Know the BTHS500 Speaker ON/OFF Ear Bud Status LED Button Multi-Func tion Button Volume Up Button Volume Down Button Microphone Charging Port...
  • Page 4 LED and Tone Indicators Status LED Indication Power On Blue LED blinks 3 times. Power Off Red LED turns on for 2 seconds. Pairing Mode Blue & Red LED blink repeatedly. Connectable Mode Blue LED blinks 1 time every 5 seconds. Connected Mode Blue LED blinks 2 times every 5 seconds.

  • Page 5: Charge The Battery

    Charge the Battery Before using your BTHS500, charge the battery for at least 2 hours. Charging the battery completely (and keeping it charged) will help you get the longest possible talk and standby time out of the battery. (On average, the battery provides about 4 hours of talk time or music play and about 170 hours of standby time.)
  • Page 6 Use ONLY the power adapter supplied with the BTHS500! Using any other adapter could damage your BTHS500, create a fire hazard, or cause a risk of electric shock! While charging the LED will light up red and when charging is complete, the LED will turn off.

  • Page 7: Changing The Ear-Bud

    Changing the Ear-Bud ging the Ear-Bud Choose an appropriate sized ear bud (small, medium or large). ging the Ear-Hook...

  • Page 8: Changing The Ear-Hook

    Changing the Ear-Hook ar-Hook Ear hook shown in right ear orientation (for hooking onto the right ear). For left ear use reverse the Ear hook orientation so the hook is on the left side.
  • Page 9 Pair your Phone to the BTHS500 Power On/ Off Slide the power switch to ON to activate the headset. Slide the power switch away from ON to power off. Pairing Before using the headset, it must be paired with a mobile phone first.
  • Page 10 • SIMPLE PAIRING: If your mobile phone 0000 supports Bluetooth core spec 2.1, then you don’t need to enter the PIN number to pair. • EASY PAIRING: When you power on the BTHS500 for the first time, the headset will go into pairing mode immediately.
  • Page 11 A2DP Profile) for streaming music. (This enables listening to music streamed from the secondary Bluetooth device while keeping a mobile phone connected on standby) IMPORTANT! The BTHS500 cannot connect to two mobile phones at the same time for making & receiving calls (Handsfree Profile).
  • Page 12 Pairing a Second Bluetooth Device to Stream Music Pair and connect a mobile phone to your BTHS500 following the pairing instructions on page 9. Follow on from step 2 on page 9 and pair a second Bluetooth device (with A2DP Profile) to your BTHS500.

  • Page 13: Make And Receive Calls

    Make and Receive Calls Making a call To dial the Last number; Press Multi-Function once quickly. To Voice dial; Press and hold the Multi-Function button for 2 seconds. Once your mobile phone is in voice dialing mode, follow the steps indicated in your mobile phone’s instructions. You can de-activate voice dial mode by pushing and holding Multi-Function for 2 seconds in voice dialing mode.

  • Page 14: Answering A Call

    Answering a call Press the Multi-Function button briefly to answer a call. Music stops when there is an incoming call, you can hear the melody. Reject an incoming call Press and hold the Multi-Function button for 2 seconds. Ending a call Press the Multi-Function button momentarily while you are on the line.
  • Page 15 Press and hold the Multi-Function button for 2 seconds. Mobile phone to headset: Press and hold the Multi-Function button for 2 seconds. MIC Mute Press and hold volume down for 2 seconds. MIC mute will then be activated. You can hear the status indication melody every 5 seconds in MIC mute mode.

  • Page 16: Reset The Headset

    [TIP] You can also activate Call waiting mode by pushing “Send” on your mobile phone Reset the Headset First disconnect any active connection from mobile phone and/ or MP3 player. BTHS500 will show connectable status, blue LED blinks 1 time every 5 seconds.

  • Page 17: How To Play Music

    LED will blink 5 times. All device information and the call list of your headset will then be reset. Turn power off. When next time BTHS500 is powered on the headset will go into pairing mode immediately. How to play music...
  • Page 18 Music stops when there is an incoming call, after the call ends, music resumes automatically. Music pause Press and hold Volume Up for 2 seconds. Press and hold Volume Up for 2 seconds again, music resumes automatically. Stop Press and hold Volume Down for 2 seconds while listening to music or while in pause mode.

  • Page 19: Specifications

    Specifications Bluetooth Core Spec Bluetooth Specification 2.1+EDR Profile HSP, HFP1.5, A2DP, AVRCP Carrier Frequency 2400 MHz to 2483.5 MHz Modulation Method GFSK, 1Mbps, 0.5BT Gaussian Maximum Data Rate Asynchronous : 2178.1 kbps / 177.1 kbps Synchronous : 1306.9 kbps / 1306.9 kbps Bluetooth Class Class 2 Hopping...

  • Page 20: Safety And General Information

    SAFETY AND GENERAL INFORMATION Please read this guidebook carefully and follow the instruction. To avoid any damage or malfunction of the unit, do not drop it from high place. Keep away unit from humidity, water and any other liquid. And if the unit is exposed by water, moisture and other liquid directly, then do not turn on and operate it for avoiding any electrical shock, explosion and damage of the unit.
  • Page 21 which produce heat. It may cause explosion, degrade of performance and reduce battery life. Do not modify, repair & disassemble unit at discretion (especially battery: it may cause an explosion) Do not place the heavy objects on the unit. Use only supplied and approved charger. Replacement or service must be done at a qualified service center or manufacturer.

  • Page 22: Warranty

    (D) Repaired by someone other than an authorized Uniden Repair Agent for a defect or malfunction covered by this warranty, (E) Used in conjunction with any equipment or parts or as a part of a system not manufactured by Uniden. (F) Only available in the original country of sale.
  • Page 23 Product should be shipped or delivered, freight prepaid, with evidence of original purchase (e.g. a copy of the sales docket) to the warrantor at UNIDEN AUSTRALIA PTY LTD UNIDEN NEW ZEALAND LTD Service Division...
  • Page 24 For more exciting new products please visit our website: Australia: www.uniden.com.au New Zealand: www.uniden.co.nz © 2010 Uniden Australia Pty Ltd/Uniden New Zealand Limited Printed in PRC...
