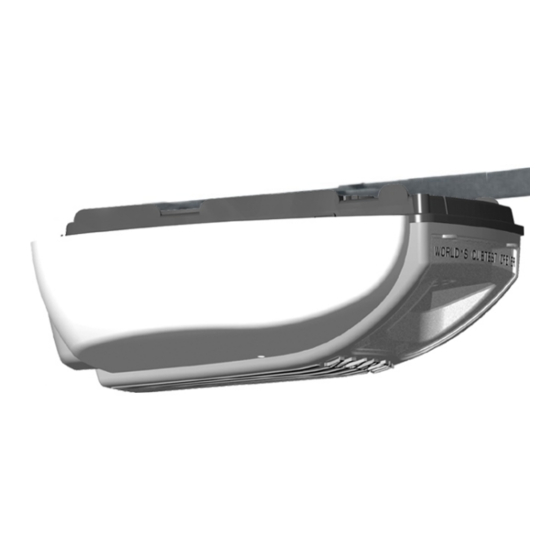

Martin DC2500e Instruction Manual

Garage door opener system
Hide thumbs

Advertisement

Table of Contents

MARTIN DC2500e/
DC2500e Chain Drive: Doors up to 10'(3100) High. DC3700e Belt Drive: Doors up to 14' (4300) High.
INSTRUCTION MANUAL
IMPORTANT INSTALLATION, MAINTENANCE & SAFETY INSTRUCTIONS
See page 5 for
This instruction manual features "Low Risk" Martin Finger Shield Garage Doors
M
ARTI
DOOR OPENERS
Martin Door Manufacturing®
DC3700e
For Installation on residential garage doors:
-All brands* - Center mount only
-Martin door models WL, RA, HT, FL SL, SP CM, RI, MO, CH - Center or side mount
-Martin Electric (combination) models WLE, HTE, CME, RAE, FLE, CHE - Center or side mount
*
WARNING! The back page helps you determine if your garage door is "HIGH RISK".
N
A8949
TM
Salt Lake City, Utah 84127-0437 USA
GARAGE DOOR OPENER SYSTEM
ISO 9001
R
MARTIN DOOR MFG.
www.martindoor.com Printed in the USA 20m Copyright
U L
C
US
R
F.C.C.
Certified
11/2003
©
2003
AD-IM09-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC2500e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Martin DC2500e

Summary of Contents for Martin DC2500e

  • Page 1 MARTIN DC2500e/ DC3700e GARAGE DOOR OPENER SYSTEM DC2500e Chain Drive: Doors up to 10’(3100) High. DC3700e Belt Drive: Doors up to 14’ (4300) High. INSTRUCTION MANUAL For Installation on residential garage doors: -All brands* - Center mount only -Martin door models WL, RA, HT, FL SL, SP CM, RI, MO, CH - Center or side mount -Martin Electric (combination) models WLE, HTE, CME, RAE, FLE, CHE - Center or side mount IMPORTANT INSTALLATION, MAINTENANCE &...
  • Page 2 PUNCHED ANGLE “C” BRACKETS - May be mounted right side or left side - POWER HEAD WARNING! For Martin Finger Shield Garage Door Systems only. CHASSIS RAIL SUPPORT BRACKET RAIL ASSEMBLY OPENER HEADER BRACKET BELT OR CHAIN END STOP WITH CLEVIS...
  • Page 3 MARTIN CENTER-MOUNT OPENER INSTALLATION - May be mounted off-center for Martin Finger Shield Garage Door Systems only - OPTIONAL “C” PUNCHED ANGLE BRACKETS POWER HEAD CHASSIS RAIL SUPPORT BRACKET RAIL ASSEMBLY OPENER HEADER BRACKET END STOP WITH CLEVIS BELT OR CHAIN...

  • Page 5: Important Installation Instructions

    Martin Door Dealer. SAVE THESE IMPORTANT INSTRUCTIONS SAVE THESE IMPORTANT INSTRUCTIONS THE FOLLOWING ITEMS ARE HELPFUL TO COMPLETE A SATISFACTORY MARTIN GARAGE DOOR AND OPENER INSTALLATION: Hammer ALL MEASUREMENTS IN...
  • Page 6 Off center or side mounted installations may result in other brand doors binding, side shifting, twisting, and falling, as the lift cables may detach from the cable drums. A Martin Opener requires 1 1/2" (38) more clearance than the required garage door clearance. Opener Door Bracket Exception Martin Doors over 18'2"...
  • Page 7 Decide if the opener will be mounted to the center, off center or side of the garage door. Center and off center mounted openers always require a “full width” top strut on the door. If side CURVED POWER ARM mounted, Martin Doors up to 12'2" (3700) wide may or may not require a top strut. REQUIRED “FULL WIDTH”...
  • Page 8 TORSION SPRING POWER HEAD CURVED POWER ARM TORSION TUBE RAIL ASSEMBLY FIGURE 6 (Top View) OPENER HEADER BRACKET TOP DOOR SECTION “C” BRACKET END STOP CLEVIS PIN POWER HEAD TOP DOOR SECTION COTTER RING LADDER COPYRIGHT © 2003 MARTIN DOOR...

  • Page 9: Step 5 Mount Opener To Ceiling

    RAIL ASSEMBLY ONE EXTRA RAIL SUPPORT BRACKET POWER HEAD ON RAIL FURNISHED FOR DOORS 10’(3100) TO 12’(3700) HIGH. TWO EXTRA RAIL SUPPORT BRACKETS ON RAILS FURNISHED FOR DOORS TEMPORARY TIE CURVED POWER ARM 14’(4300) HIGH. COPYRIGHT © 2003 MARTIN DOOR...
  • Page 10 STEP 6 LIGHT BULBS AND LIGHT LENSES SLOT LIGHT BULB Twist 2 light bulbs (1 for DC2500e), maximum 60W, into light bulb sockets. SOCKET Position light lens tabs with corresponding slots in power head and chassis and snap SLOT into place. Two screws are also furnished to fasten bottom part of DC3700e light lenses.

  • Page 11: Connecting Wires To Power Head

    Be sure the wiring is routed away from all moving parts of door and rail assembly. (For Dc3700e with Martin Door applications, see concealed photo-eye wire attachment kit instructions). Open the control panel cover by gently pulling on the 2 tabs, allowing the cover to hang open. To remove, pull...
  • Page 12 3/8” X 1” SHORT NECK CARRIAGE BOLT RED SQUARE DOT “L” STRUT EMERGENCY RELEASE CORD OPENER PULL DOWN DOOR BRACKET RED KNOB RED KNOB PULL DOWN TO ENGAGE(RED SQUARE DOT WILL DISAPPEAR) PULL DOWN TO DISENGAGE(RED SQUARE DOT WILL APPEAR) COPYRIGHT © 2003 MARTIN DOOR...
  • Page 13 Connect power at the breaker. The #8 LED on the opener control panel will illuminate, showing that the power is on. See Figure 22 LED’S STEP 11 MARTIN “SMART COMPUTER” CONTROL PANEL SCREW Open control panel cover by gently pulling on the 2 tabs. Do not twist cover or CONTROL PANEL COVER hinges may break.

  • Page 14: Begin Programming

    "P" repeatedly until the desired setting is reached. This bypasses the unneeded adjustments. When desired setting is complete, simply press "P" as many times as needed to return the opener to normal operating mode with LED #4 illuminated. TRANSMITTER PROGRAMMING COPYRIGHT © 2003 MARTIN DOOR...
  • Page 15 KEEP GARAGE DOOR PROPERLY BALANCED. See garage door owner’s manual. An control away from children. improperly balanced door increases the risk of severe injury or death. Call a trained Martin Door Dealer to repair lift cables, spring assemblies and other hardware.

  • Page 16: Step 14 Apply Labels To Inside Of Garage

    NOTE: To test the Up Force, place an object to stop the door in its upward direction. HORIZONTAL ROTATION VERTICAL ROTATION The opener should stop when the door contacts the object. The Martin Opener also has a third reversal protection system, which automatically FIGURE 34...

  • Page 17: Transmitter Operation

    (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. COPYRIGHT © 2003 MARTIN DOOR...
  • Page 18 Lights can be turned on and off by manually pushing light switch button on the wall control. Lights turned on manually can only be turned off by manually pushing light switch button or by opening and closing the door. See Figure 43. COPYRIGHT © 2003 MARTIN DOOR...
  • Page 19 TO SHORTEN BELT OR CHAIN RAIL ASSEMBLY UP TO 24” (610): (See exploded view of rail assemblies on Page 21) Note: For trained Martin Garage Door Dealers: Consult factory if cut-off is more than 24” (610) because the position tab must be kept in the proper location.

  • Page 22: Having A Problem

    Open door manually. If it is unbalanced or a broken spring, call a trained Martin Door Dealer. Review and increase force adjustment setting for down travel. If door reverses from fully closed position, decrease travel limits.
  • Page 23 Illuminates for 2 seconds each time the position tab activates the reference switch as the door opens or closes. Blinks when an obstruction is detected, door reverses, or other problem occurs. TROUBLESHOOTING - FOR TRAINED MARTIN GARAGE DOOR SERVICE TECHNICIANS LED DISPLAY AFTER CODE...

  • Page 24: Sectional Doors

    If your door is “HIGH RISK”, correct all areas listed below or replace it with a “Low Risk” Martin Finger Shield Garage Door. IF UNSURE, CALL A TRAINED MARTIN DOOR DEALER COMMON HIGH RISK GARAGE DOOR AREAS COMMON REPORTED SERIOUS INJURIES Exposed wide-open section joints, inside and outside .

This manual is also suitable for:

D3700eDc3700e
