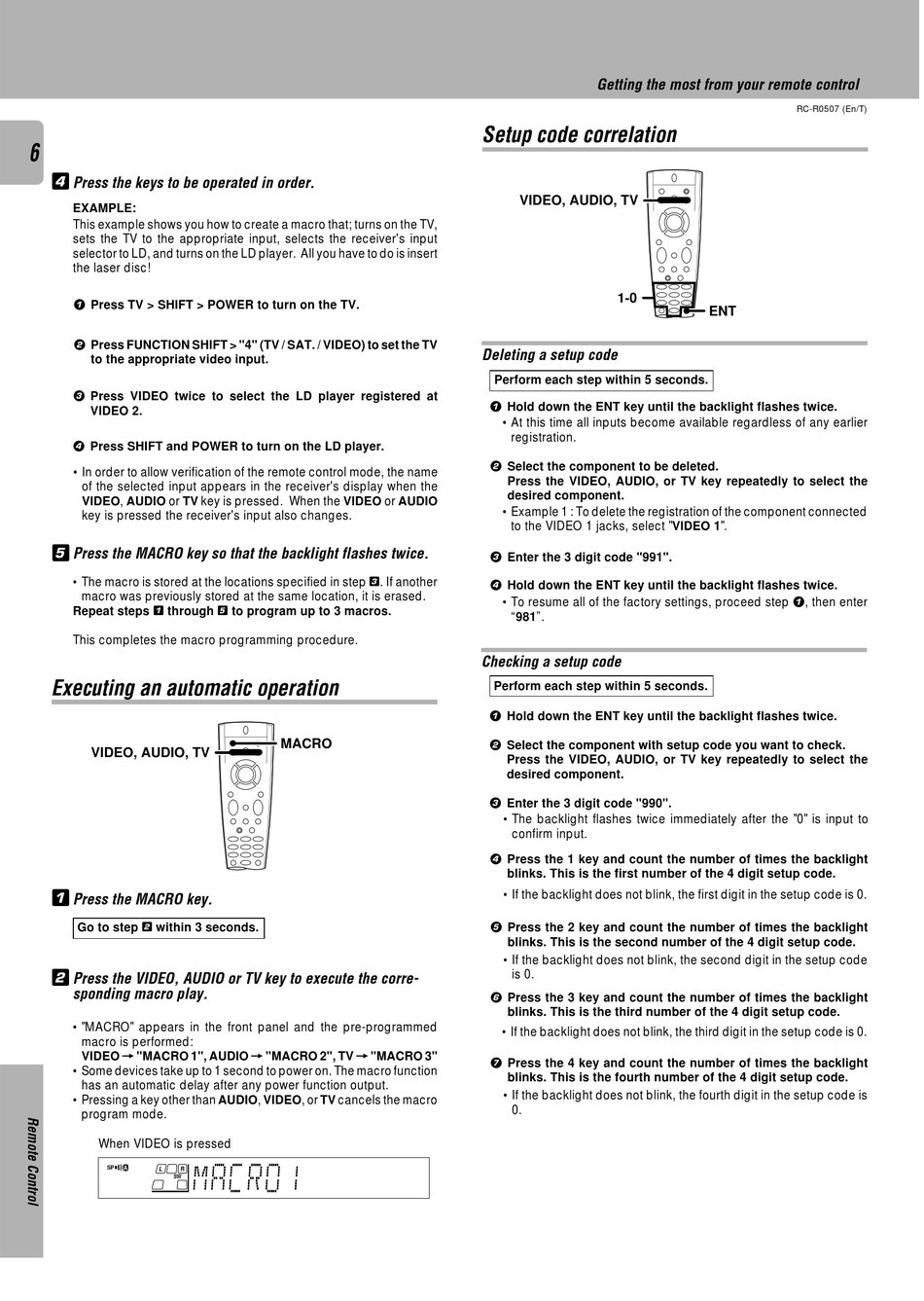

Kenwood RC-R0507 Remote Control Manual page 6

6
4
Press the keys to be operated in order.
EXAMPLE:
This example shows you how to create a macro that; turns on the TV,
sets the TV to the appropriate input, selects the receiver's input
selector to LD, and turns on the LD player. All you have to do is insert
the laser disc!
1 Press TV > SHIFT > POWER to turn on the TV.
2 Press FUNCTION SHIFT > "4" (TV / SAT. / VIDEO) to set the TV
to the appropriate video input.
3 Press VIDEO twice to select the LD player registered at
VIDEO 2.
4 Press SHIFT and POWER to turn on the LD player.
• In order to allow verification of the remote control mode, the name
of the selected input appears in the receiver's display when the
VIDEO, AUDIO or TV key is pressed. When the VIDEO or AUDIO
key is pressed the receiver's input also changes.
5
Press the MACRO key so that the backlight flashes twice.
• The macro is stored at the locations specified in step 3. If another
macro was previously stored at the same location, it is erased.
Repeat steps 1 through 5 to program up to 3 macros.
This completes the macro programming procedure.
Executing an automatic operation
VIDEO, AUDIO, TV
1
Press the MACRO key.
Go to step 2 within 3 seconds.
2
Press the VIDEO, AUDIO or TV key to execute the corre-
sponding macro play.
• "MACRO" appears in the front panel and the pre-programmed
macro is performed:
VIDEO = "MACRO 1", AUDIO = "MACRO 2", TV = "MACRO 3"
• Some devices take up to 1 second to power on. The macro function
has an automatic delay after any power function output.
• Pressing a key other than AUDIO, VIDEO, or TV cancels the macro
program mode.
When VIDEO is pressed
SP A
M ACRO 1
MACRO
Getting the most from your remote control
Setup code correlation
VIDEO, AUDIO, TV
1-0
Deleting a setup code
Perform each step within 5 seconds.
1 Hold down the ENT key until the backlight flashes twice.
• At this time all inputs become available regardless of any earlier
registration.
2 Select the component to be deleted.
Press the VIDEO, AUDIO, or TV key repeatedly to select the
desired component.
• Example 1 : To delete the registration of the component connected
to the VIDEO 1 jacks, select "VIDEO 1".
3 Enter the 3 digit code "991".
4 Hold down the ENT key until the backlight flashes twice.
• To resume all of the factory settings, proceed step 1, then enter
"981".
Checking a setup code
Perform each step within 5 seconds.
1 Hold down the ENT key until the backlight flashes twice.
2 Select the component with setup code you want to check.
Press the VIDEO, AUDIO, or TV key repeatedly to select the
desired component.
3 Enter the 3 digit code "990".
• The backlight flashes twice immediately after the "0" is input to
confirm input.
4 Press the 1 key and count the number of times the backlight
blinks. This is the first number of the 4 digit setup code.
• If the backlight does not blink, the first digit in the setup code is 0.
5 Press the 2 key and count the number of times the backlight
blinks. This is the second number of the 4 digit setup code.
• If the backlight does not blink, the second digit in the setup code
is 0.
6 Press the 3 key and count the number of times the backlight
blinks. This is the third number of the 4 digit setup code.
• If the backlight does not blink, the third digit in the setup code is 0.
7 Press the 4 key and count the number of times the backlight
blinks. This is the fourth number of the 4 digit setup code.
• If the backlight does not blink, the fourth digit in the setup code is
0.
RC-R0507 (En/T)
ENT
