Connections; Installation; Specifications; Fuse Replacement - Icom PS-250 Instructions

Detach the terminal guard first.
Fuse rating: 15 A
12 V/24 V battery
or PS-240
• Mount the power supply securely with the four supplied
screws (M5×20 mm) to a surface which is more than 10
mm thick and can support more than 5 kg.
CAUTION:
KEEP the power supply at least 1 meter
away from your vessel's magnetic navigation compass.

SPECIFICATIONS

• DC input voltage
• Output voltage
• Maximum output current
• Usable temperature range : –15°C to +55°C
• Dimensions
(projections not included)
• Weight (approx.)
Icom, Icom Inc. and the logo are registered trademarks of Icom Incor-
porated (Japan) in the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
All other products or brands are registered trademarks or trademarks of their
respective holders.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

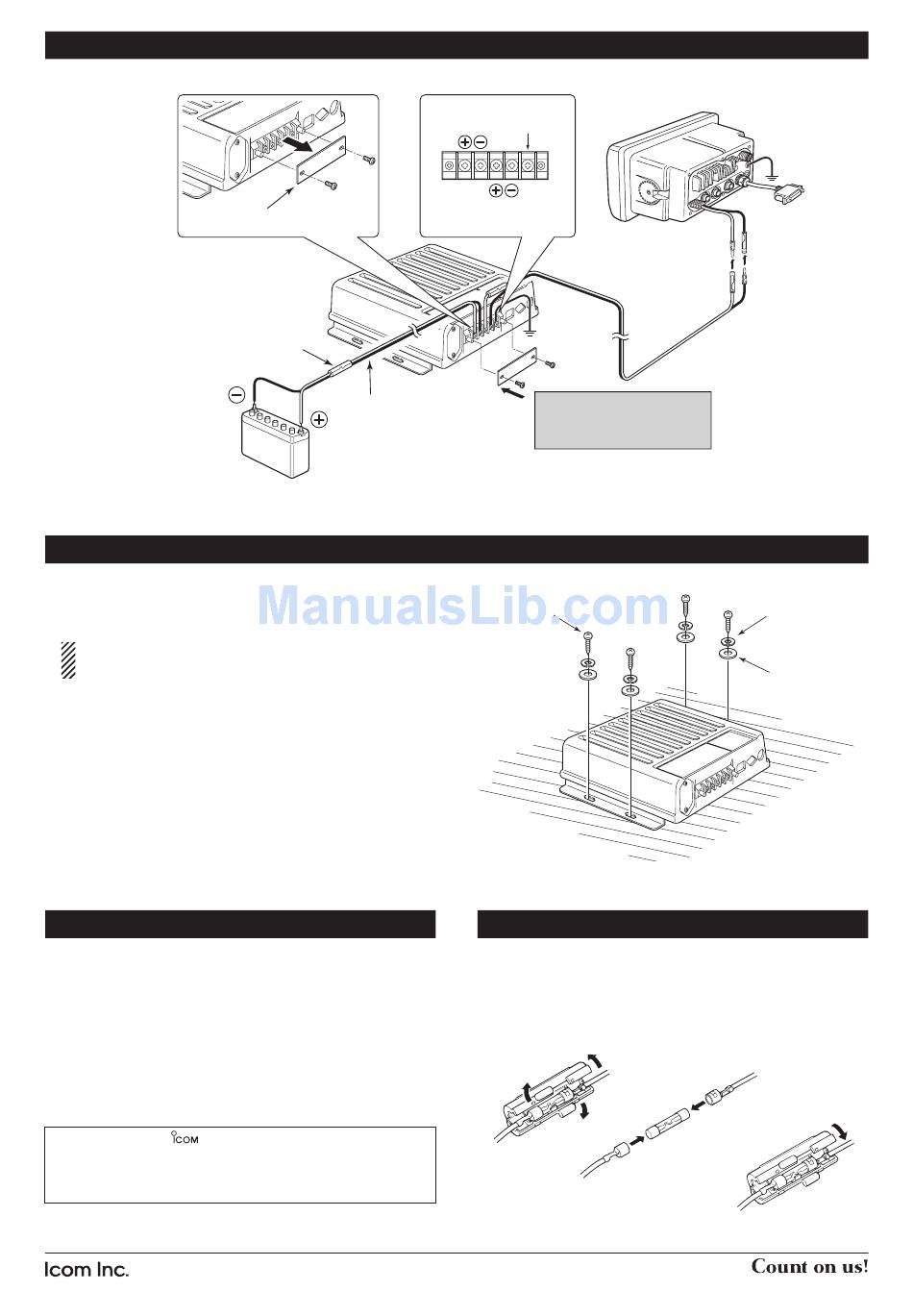

CONNECTIONS

Terminal guard
PS-250
Supplied with
PS-250

INSTALLATION

: 10.8 V to 31.2 V DC
: 12.5 V DC
: 5.3 A (nominal)
: 250(W)×67(H)×200(D) mm
: 2.1 kg
DC IN
IC-GM651
12V/24V GND
DC OUT
12.5V
KEEP the terminal guard
attached after connecting
cables.
Self-tapping
screw

FUSE REPLACEMENT

One fuse is installed in the supplied DC power cable. If a
fuse blows or the power supply stops functioning, track
down the source of the problem, if possible, and replace
the damaged fuse with a new, rated one.
Fuse rating: 15 A
Supplied with
IC-GM651
Spring washer
Flat washer
A-6654H-1EX Printed in Japan
© 2008 Icom Inc.
