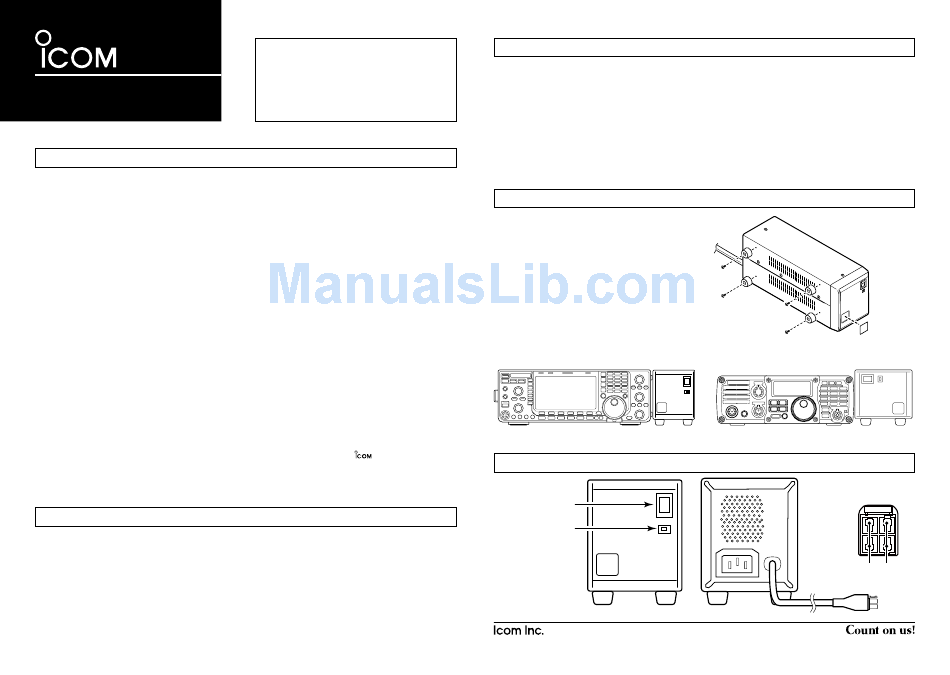

Icom PS-126 Instructions

INSTRUCTIONS
DC POWER SUPPLY
PS-126
PRECAUTIONS
• R WARNING! NEVER apply AC voltage that
exceeds the specified voltage to the PS-126's
AC power cable. Excessive voltage could
cause a fire or ruin the power supply.
• R WARNING! Immediately turn the power
supply OFF and remove the AC power cable
if it emits an abnormal odor, sound or smoke.
Contact your Icom dealer or distributor for ad-
vice.
R CAUTION! NEVER let metal, wire or other
•
objects touch any internal parts through the
slits of the case or terminals on the rear panel
of the power supply. This may result in an elec-
tric shock.
R CAUTION! NEVER connect the power sup-
•
ply to a DC power source using reverse polari-
ty. This will damage the power supply.
• R CAUTION! NEVER open the top cover.
There are no user adjustment parts. Open-
ing the case may expose you to electric shock
and incorrect reassembly may cause a fire
hazard.
• R CAUTION! NEVER put the power supply in
any unstable place (such as on a slanted sur-
face or vibrating area). This may cause injury
to you and/or damage to the power supply.

SPECIFICATIONS

• Input voltage : 85–135 V AC
• Max. power consumption : 7 50 VA (apparent power)
400 W (effective power)
• Output voltage : 13.8 V DC±5%
• Max. output current : 25 A
• Dimensions : 94(W)×111(H)×287(D) mm
3 11 ⁄ (W)×4
(projections not included)
16
• Weight (approx.) : 3.0 kg; 6 lb 10 oz
• Usable temperature range : –10˚C to +60˚C; +14˚F to +140˚F
Thank you for purchasing the PS-126
. The power supply is designed
power supply
to use with an Icom HF or VHF/UHF all mode
transceiver.
Please read these instructions thoroughly be-
fore operating the PS-126.
• R CAUTION! The socket-outlet must be near
the DC power supply and must be easily ac-
cessible.
• R USE INDOORS ONLY! NEVER expose the
power supply to rain, snow or any liquids.
• D O NOT use or place the power supply
in areas with temperatures below –10°C or
above +60°C.
D O NOT
use chemical agents such as benzine
•
or alcohol when cleaning, as they can damage
the power supply's surfaces.
• D O NOT place the power supply against walls
or put anything behind the power supply. This
will obstruct heat dissipation.
• K EEP the power supply out of the reach of
children.
• U SE an AC outlet that can supply more than
750 VA capacity. AVOID the use of a multi-
plug adaptor.
Icom, Icom Inc. and the are registered trade-
marks of Icom Incorporated (Japan) in the United
States, the United Kingdom, Germany, France, Spain,
Russia and/or other countries.
3 ⁄ (H)×11 5 ⁄ (D) in
8 16
dc
q M ake sure the [POWER] switches on the PS-
126 and transceiver are OFF.
w C onnect the DC output cable of the PS-126
to the transceiver DC power input socket.
e C onnect the AC power cable to an AC outlet
and the PS-126.
r Turn the PS-126 ON.
• " I " : ON (Power indicator lights red)
• "O" : OFF (Power indicator goes off)
The PS-126's height can be changed from
111 mm (4 3 ⁄ in) to 94 mm (3
8
your shack, etc.
• R ubber feet attached for 111 mm (4
height at the factory.
• S tick Icom logo plate on the front panel after
installation.
• I nstallation example—
111 mm (4 3 ⁄ in) height
8
Power SW
Power indicator
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Printed on recycled paper with soy ink.
OPERATION
t Turn the transceiver ON.
y T o turn OFF the system, turn the transceiver
power OFF, then the PS-126 in sequence.
POWER PROTECTOR
The PS-126 has an output protection circuit.
When the + and _ pins are shorted, the PS-
126 stops functioning. In such a case, turn OFF
the PS-126, remove the source of the problem,
wait several seconds, then turn it ON again.
INSTALLATION
⁄ in) to suits
11
16
3 ⁄ in)
8
• I nstallation example—
94 mm (3 11 ⁄ in) height.
16
PANEL DESCRIPTION
A-6719H-1G Printed in Japan
Icom
logo plate
+ _
© 2008 Icom Inc.
