Summary of Contents for Contractor GEN4000/03237

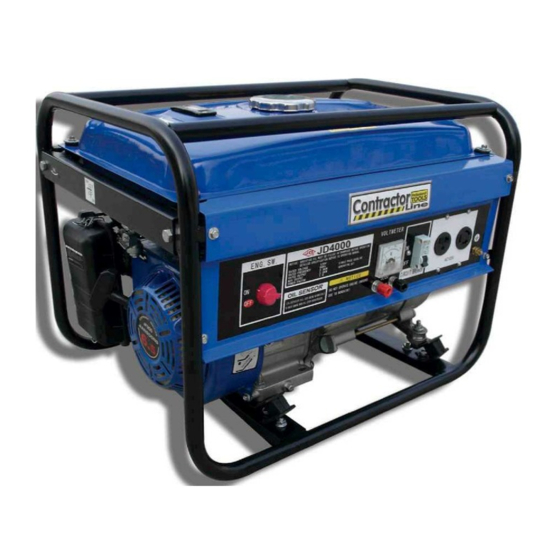

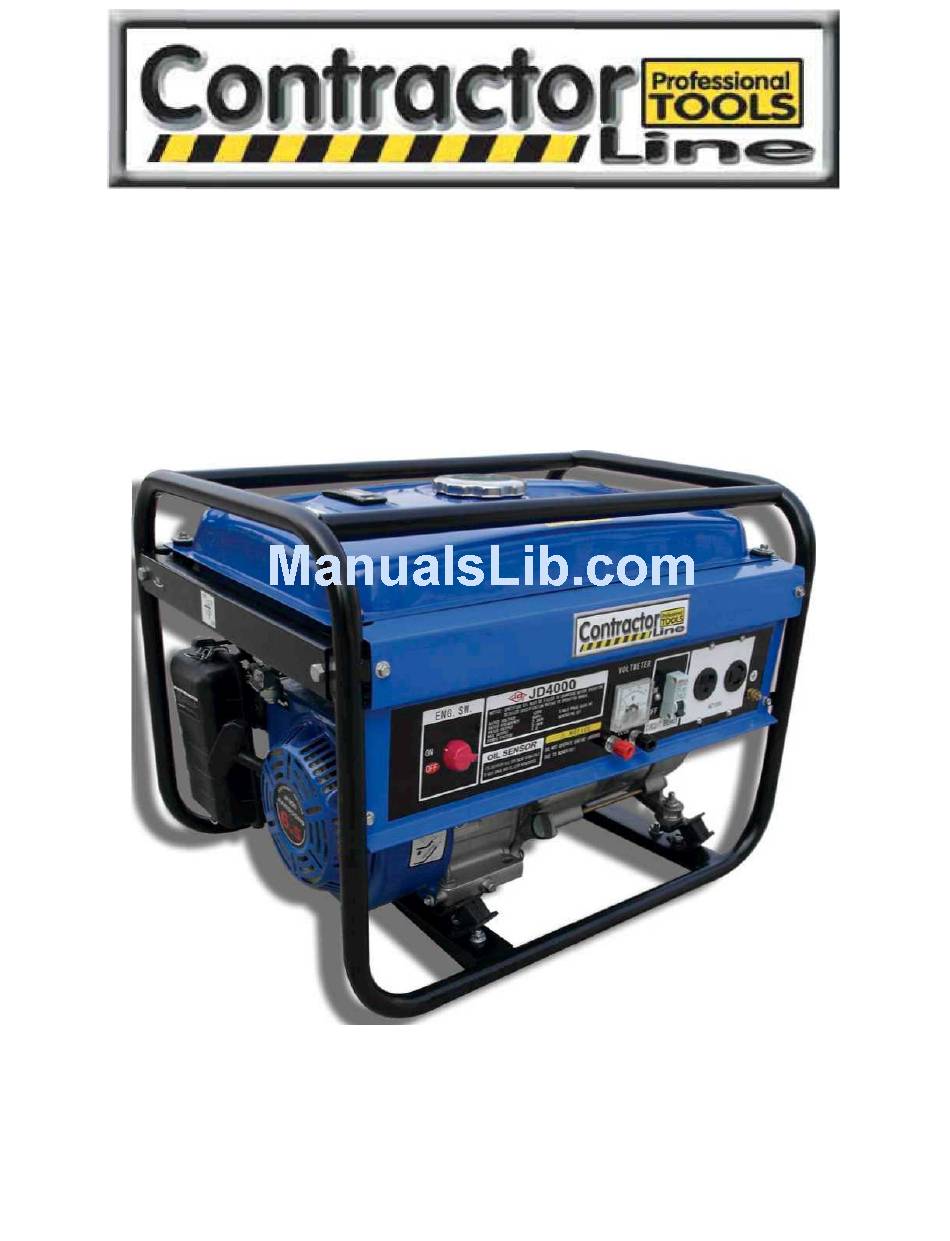

- Page 1 4000 Watt Generator Stock No GEN4000/03237 INSTRUCTION MANUAL Please read this manual BEFORE using this tool...
-
Page 2: General Safety Rules
ITEM DESCRIPTION Electrical Requirements 6.5hp 3000 watt w/ peak surge wattage of 4000w Engine Type Electronic ignition system, recoil start 4 Cycle Alternator Two Pole / Single Phase / 60 Hz DC voltage DC Output 12v @ 8.3amps Fuel Tank 4 gallon tank capacity Estimated Run Time 7.8h continuous run time... -
Page 3: Generator Safety
2. Ensure installation meets all applicable safety, and local and national electrical codes. Have installation performed by a qualified, licensed electrician and building contractor. 3. If the generator is installed indoors, exhaust fumes must be piped out of the building using leak-free, heat- resistant piping. -
Page 4: Fire And Explosion Precautions
FIRE AND EXPLOSION PRECAUTIONS: 1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures. Always have multiple ABC class fire extinguishers nearby. 2. Keep the Generator and surrounding area clean at all times. 3. -
Page 5: Electrical Precautions
ELECTRICAL PRECAUTIONS: 1. All connections and conduits from the Generator to the load must only be installed in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable. 2. The Generator must be properly earth-grounded by a licensed electrician in accordance with all relevant electrical codes and standards before operation. -
Page 6: Grounding The Generator
GROUNDING THE GENERATOR NOTE: It is recommended that only a trained and licensed electrician perform this procedure. (Generators without a permanent installation may not need to be grounded, check local codes and ordinances. Local codes and ordinances may vary. Always check local codes and install in accordance with all laws). - Page 7 TO START THE GENERATOR: 1. Turn the Fuel Valve to its "OPEN" position. 2. Turn the Engine's "ON/OFF" Switch to its "ON" position. 3. Move the Engine’s Fuel Choke Lever to its "START" position (in the direction of the arrow above it).DC output is protected by an inboard 10 amp fuse.
- Page 8 POWERING TOOLS AND EQUIPMENT: 1. Prior to powering tools and equipment, make sure the Generator's rated voltage, wattage, and amperage capacity (120V/25 AMP) is adequate to supply all electrical loads that the unit will power. If powering exceeds the Generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate Generator.
Need help?
Do you have a question about the GEN4000/03237 and is the answer not in the manual?
Questions and answers

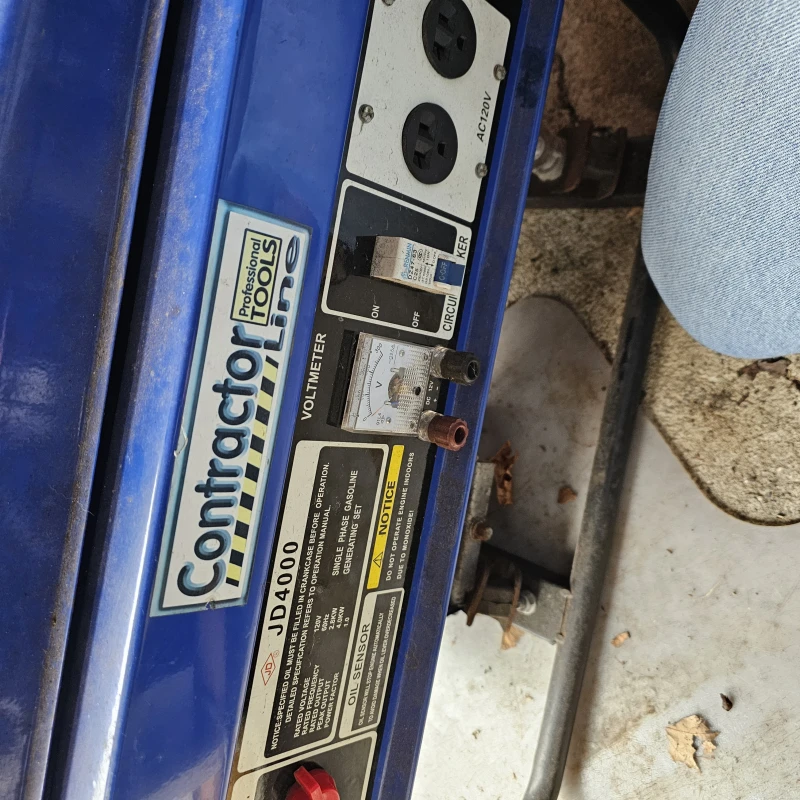

what is the price of this generator 4000 watts Contractor?
Where is the spark plug located , Thanks
