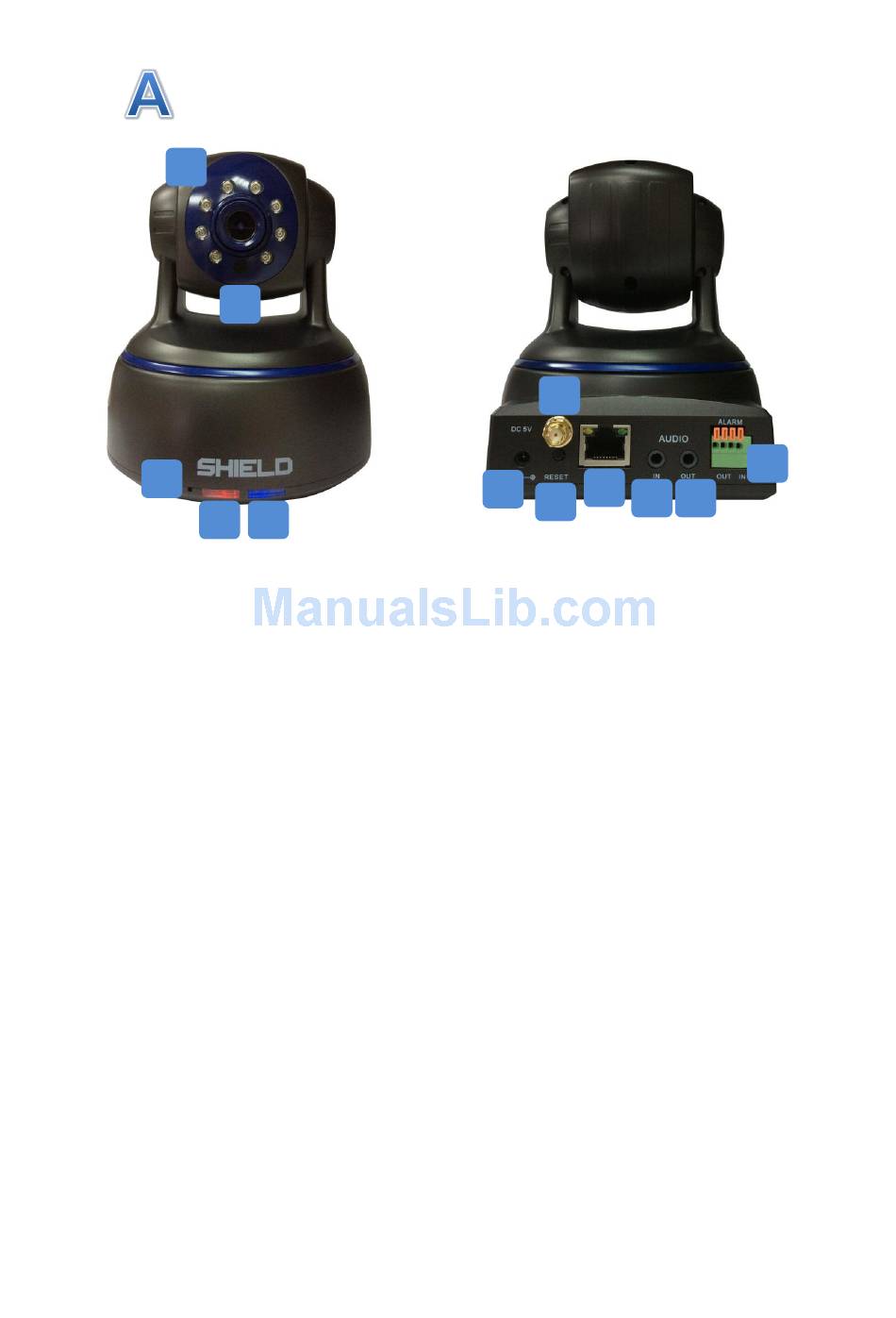

Getting to know your RSCM-13601B/W

1. Infrared LEDs: Active while encountering conditions such as lower lights, generating

black and white image even in entire darkness.

2. Illumination Sensor: Detecting the light and enable the IR LEDs when required.

3. Microphone: Enable the camera to transit sounds nearby the camera and allows the

interaction with ones nearby.

4. Power LED: Indicating that the camera is operating when the LED light is on.

5. Network LED: The light flashing whilst the camera is sending/ receiving data via the

wired/ wireless network

6. DC In Power: Connecting the DC input here.

7. Antenna Connector: A Wi-Fi antenna could be attached to this port.

8. Reset Button: Pressing the reset button and held for 3-5 seconds would enable the

wireless connection to a WPS support router. All settings will be reverted to the

factory defaults when the button is press and held in the disconnected condition.

9. Network (LAN) Port: Connecting to a wired connection through this port and the

router.

10. Audio In: To connect an external microphone if audio monitoring required from other

locations.

11. Audio Out: Intercom function could active while linking speakers to the audio output.

Voice could be heard by the speakers via the mobile application.

12. Alarm I/O Block: Sensors and external alarms could be connected here.

SHIELD IP Camera RSCM-13601B/W

10 11

Table of Contents

Do you have a question about the RSCM-13601B and is the answer not in the manual?

Page 1 SHIELD IP Camera RSCM-13601B/W Getting to know your RSCM-13601B/W 10 11 1. Infrared LEDs: Active while encountering conditions such as lower lights, generating black and white image even in entire darkness. 2. Illumination Sensor: Detecting the light and enable the IR LEDs when required.
Page 2 SHIELD IP Camera RSCM-13601B/W Start you IP camera via your smart phone 1. Installing the App, SHIELDeye 1. Go to Apple Store or Google Play Store. 2. Search SHIELDeye 3. Tap Free to download 2. Add Camera Add Cameras by (a) Search in LAN, (b) Scan QR Code and (c) Add manually If the Phone and IP camera are in the same Wi-Fi network, click LAN Search.
Page 3 SHIELD IP Camera RSCM-13601B/W Camera Location Tips The location of cameras is essential. Positioning cameras at the proper places could maximize the proficiency of the camera. On the other hand, miss locating the cameras could result in blind spots, poor definition or having blur vision of the inspecting targets.
Page 4 SHIELD IP Camera RSCM-13601B/W 4. Indoors The cameras could be placed along the high traffic area like entrance, hallways or exits. Other positions are those windows and rooms where the luxury personal belongings stored. 5. Camera Field of View The viewing area provided by a camera is the observable area the camera could deliver.
