- Page 2 SHIELDeye SmartCam USER MANUAL Limited Warranty Terms & Conditions Rosewill Limited warrants this product against defects in workmanship and material for a period of one (1) year from its original purchase date. You must present your receipt as proof of date of purchase for warranty validation.
-
Page 3: Table Of Contents
SHIELDeye SmartCam USER MANUAL TABLE OF CONTENTS Congratulations ......................5 IP (Internet Protocol) Camera Information ............. 5 • Camera Details ....................5 • Package Contents ....................6 • Before You Install ....................6 Setting Up Your Camera ..................7 Connecting to a LAN (using a Network Cable) ............7 Installing SHIELDeye S ................ - Page 4 SHIELDeye SmartCam USER MANUAL • Adding a Camera via Smartphone ..............19 • Indroducing SHIELDeye App ................. 20 • Advanced Settings .................... 21 Opening a Web Browser ..................23 • The “LiveWatch” UI................... 23 • Media Settings....................24 • Image Settings ....................25 •...
-
Page 5: Congratulations

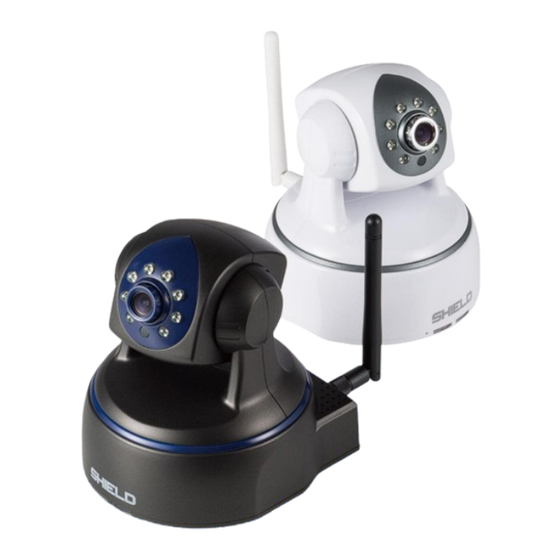

Congratulations With this IP on your purchase of this SHIELD Pan & Tilt IP camera. (Internet Protocol) Camera, you can monitor your home day and night, watch your children, and keep an eye on pets at every moment. You can also interact with your family anytime by the remote online smartphone speaker and view feature. -
Page 6: Package Contents
SHIELDeye SmartCam USER MANUAL Package Contents What’s in the box IP camera * 1 CD * 1 5V Power Adapter * 1 Bracket * 1 Network Cable * 1 Antenna * 1 User Manual * 1 If any of the items are missing, please contact your vendor. Before You Install In order to install your Camera successfully, please make sure you have the following: •... -
Page 7: Setting Up Your Camera
SHIELDeye SmartCam USER MANUAL Installation Guide (Wired Connection to the LAN) The network cable and DC 5V power cable that are needed for these instructions are included with your Camera. Please get them from the package contents and have them ready. 1. -
Page 8: Default Username And Password
SHIELDeye SmartCam USER MANUAL Installing SHIELDeye Software SHIELDeye is an easy way for users to set up and control the Camera that is connected on your home network via your computer. SHIELDeye allows you to connect multiple IP Cameras and simultaneously record and playback immediately recorded videos while your current recordings continue uninterrupted. -
Page 9: Understanding The "Livewatch" Interface
SHIELDeye SmartCam USER MANUAL Understanding the “LiveWatch” Interface This software interface acts as your virtual eyes and allows you to control and adjust the Camera settings on site or from other time zones. Launch SHIELDeye, and the LiveWatch software UI (User Interface) will open. See below. This Camera software allows you to connect up to 16 Cameras, record videos and take snapshots, configure Wi-Fi settings, and has 2-way audio remote conversation. - Page 10 SHIELDeye SmartCam USER MANUAL “Add Device Mode” Screenshots 1. Click “Search to Add” button (recommended choice). 2. In Device Type, Select “Smart P2P”. Click Search. 3. Enter the default Account: admin; Password: 123456 4. Click Save. Make sure box with * are filled out and Click Save.
-
Page 11: Setting Up Video
SHIELDeye SmartCam USER MANUAL Setting Up Video This section details how to set up your Camera(s). Right click Play Video or Double click the Camera to start the video. Basic Camera Controls You can control the image, audio and other options while you are watching the video via the functions below. -
Page 12: Local Menu Setup
SHIELDeye SmartCam USER MANUAL Local Menu Setup Play All Devices in the List Stop All Devices in the List Eyeplayer is video playback Multiple Image Window Device Log records video history Full Screen Mode System Setting Trigger Alarm Three (3) setting options File Browse that activate only during Select where to save videos. -
Page 13: Camera Wifi Setup
SHIELDeye SmartCam USER MANUAL Camera WiFi Setup So, you have successfully installed the Camera and have been able to view what you want over the network, but now you want to avoid the cable running down the hallway. You could set up your IP Camera wirelessly! Before start your wireless setup, please check that your wireless router works, and remember to connect your router, desktop and the IP Camera according to page 7. - Page 14 SHIELDeye SmartCam USER MANUAL 4. Open your Internet browser and type the IP address into the browser bar. This will take you into the Web Interface. Choose your language and browser to enter. 2. Enter the IP address you recorded in step 3.
- Page 15 SHIELDeye SmartCam USER MANUAL 6. You can either choose Dynamic IP Address to enable DHCP protocol or Fixed IP Address (a static IP that you manually input. This IP address is provided by your ISP. Also input the HTTP Port (as shown), RTSP Port: 554 as default.
-
Page 16: Connecting By Iphone Or Android Smartphone
SHIELDeye SmartCam USER MANUAL Connecting by iPhone or Android Smartphone Go to the Apple App Store or Google Play, search for SHIELDeye, and download it for free. Start watching live Camera videos from your mobile device. Make sure you download the latest version of the SHIELDeye app. The following images are captured from the iOS version of the mobile app. -
Page 17: Understanding The Shieldeye App
SHIELDeye SmartCam USER MANUAL Understanding the SHIELDeye App 1. Camera: View Camera list and some Camera functions. 2. Pictures: View snapshots taken by the phone from the video feed. 3. Records: View video feed and storage card in remote Camera. 4. -
Page 18: Viewing Videos On Your Ip Camera By Smartphones
SHIELDeye SmartCam USER MANUAL Viewing videos on your IP camera by smartphones Before using the Recorder function, please confirm the "P2P Build Time" updated to 2015-01-02 through the Web interface. -
Page 19: Setting Up The Shieldeye App
SHIELDeye SmartCam USER MANUAL Setting Up the SHIELDeye App Before operating your Camera(s) with your smartphone, you must first register the Camera(s) with the app. Adding a Camera via Smartphone There are three (3) methods to add Cameras: (1) Search Camera in LAN (2) Scan ID (3) Add Manually 1. -
Page 20: Indroducing Shieldeye App
SHIELDeye SmartCam USER MANUAL Introducing SHIELDeye App PTZ setting Flip Mirror Quit Resolution Snapshot Record Listen Talk Contrast Brightness Default Anamorphic Setting NOTE: Default may NOTE: If the video lags, we distort the video. If it suggest you to change the needs adjustment, resolution to QVGA for please adjust through... -
Page 21: Advanced Settings
SHIELDeye SmartCam USER MANUAL Advanced Settings WiFi Setting Camera Settings Search for an available WiFi SSID This is the main screen for accessing connection to link the phone and IP various Camera and software settings. Camera. User Setting Time Setting Configure accounts with usernames and Calibrate the Camera’s local time and time passwords. - Page 22 SHIELDeye SmartCam USER MANUAL FTP Setting Alarm Setting Input and store server and port Adjust Motion Detect settings and other information here. (You must have actions and notifications here. information on-hand before you start.) Mail Setting Set up email accounts of the sender and receiver here before using mail alarm.
-
Page 23: Opening A Web Browser
SHIELDeye SmartCam USER MANUAL Opening a Web Browser Open a Web browser such as Internet Explorer (IE), Chrome, Firefox or Safari and type the Camera’s IP address into the address bar. Make sure your Camera is connected to the network, otherwise nothing will show ... -
Page 24: Media Settings
SHIELDeye SmartCam USER MANUAL Media Settings Video Settings We recommend using 60Hz for a stable frequency. Higher Bit Rate provides higher video resolution, but it also takes more bandwidth. Please set according to your network and storage recording size. Higher Frame Rate shows better videos but need larger storage. -
Page 25: Image Settings
SHIELDeye SmartCam USER MANUAL Image Settings Double click to full screen : Long click to control the angle of Camera Alarm Setting The Camera can be equipped with external alarm devices. Connect an external alarm detector to the input port, and the detector will send the signal when it detects any motion. -
Page 26: Motion Detection
SHIELDeye SmartCam USER MANUAL Motion Detection This size and position of the detection windows can be customized. The alarm will trigger when motion occurs any of the windows. 1. Check the Window1 through Window4 checkboxes. 2. Select the Sensitivity value. (The higher value, the more sensitive it is.) 3. -
Page 27: Scheduling
SHIELDeye SmartCam USER MANUAL Schedule Settings You can schedule the alarm to be set only during certain times. 1. Click the corresponding day and time boxes. The boxes will become green when they are active. 2. Click Apply. Note: Please make sure your system time is correct before you set the alarm schedule. E-mail Settings Follow these instructions to send email notification SMTP server name: This is the mail... -
Page 28: Appendix
SHIELDeye SmartCam USER MANUAL Appendix Connecting to a WAN Using a WAN to connect the IP Camera to your desktop or notebook is one more way to provide flexible coverage. Instructions take place on your router, so settings and wordings will differ depending on wireless router models.
