FILE NO. 140-200403

SERVICE MANUAL

COLOR TELEVISION/
DVD VIDEO PLAYER
MD13P3
DOCUMENT CREATED IN JAPAN, Jan., 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD13P3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toshiba MD13P3

Summary of Contents for Toshiba MD13P3

  • Page 1: Service Manual

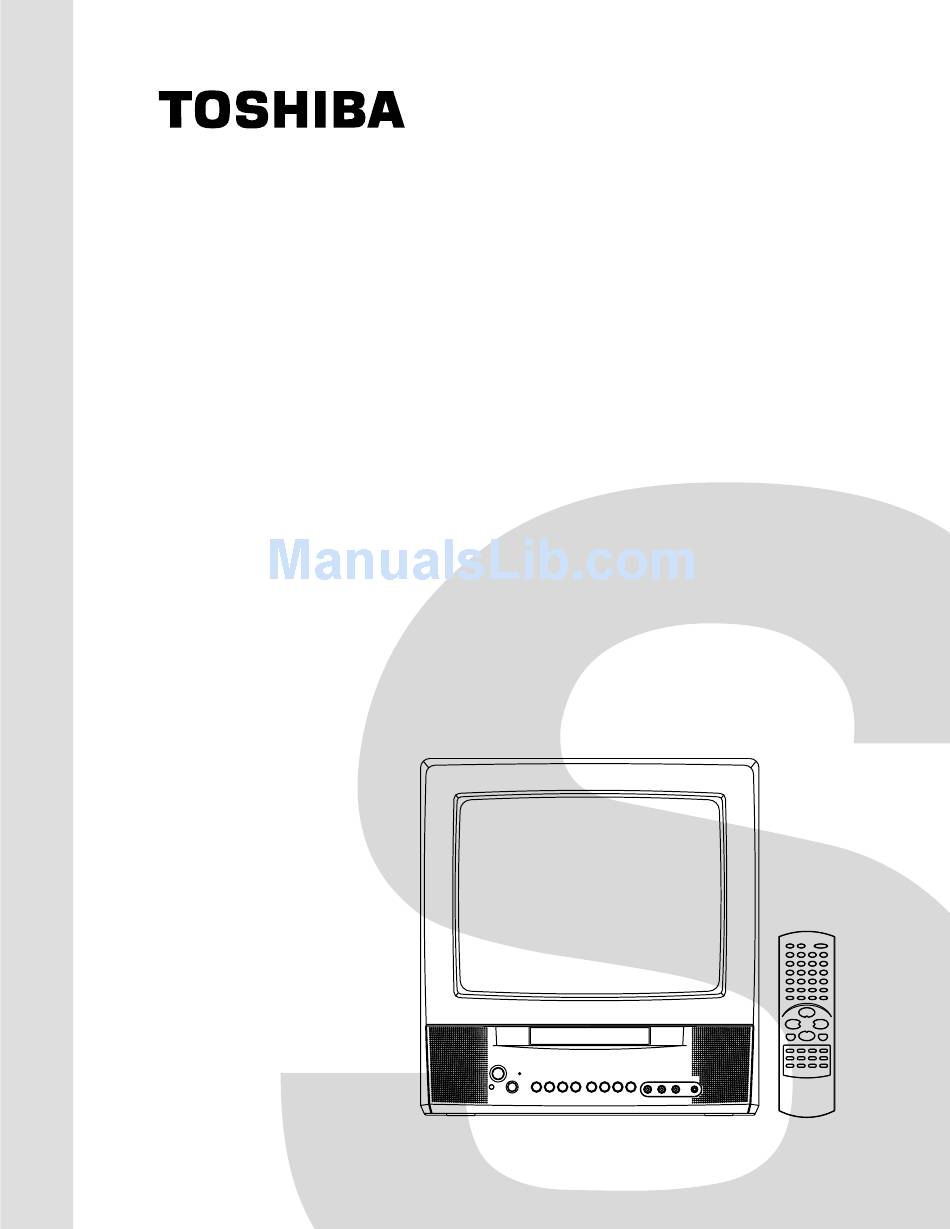

    FILE NO. 140-200403 SERVICE MANUAL COLOR TELEVISION/ DVD VIDEO PLAYER MD13P3 DOCUMENT CREATED IN JAPAN, Jan., 2004...
